1
Engine displacement
600
2
Year
2019
3
Trim
600 SWITCHBACK SP 144 ES
4
Parts Catalog
STEERING, UPPER AND HANDLEBAR ASM.
5
Parts Diagram
Parts Catalog
ENGINE, WATER PUMP
by
FUEL SYSTEM, FUEL TANK ASM.

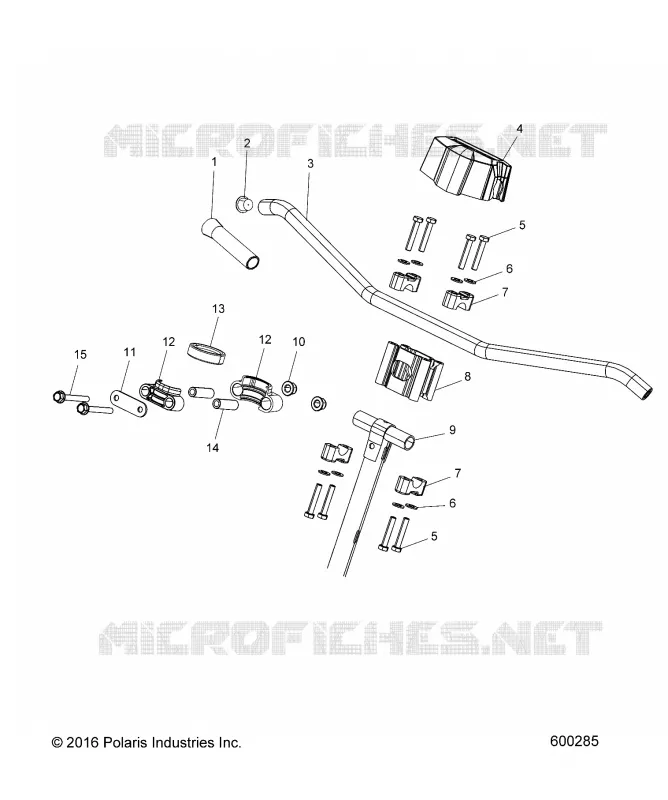

STEERING, UPPER AND HANDLEBAR ASM.
1
2
3
4
5
5
6
7
7
10
11
12
12
13
14
15
1
GRIP HANDLEBAR BLACK [INCL. 1]
5452065070
$26,24 Unit Price incl. VAT
2
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
3
BAR-HANDLE BLK
5336886067
$167,99 Unit Price incl. VAT
4
COVER HANDLEBAR
5438523
$47,24 Unit Price incl. VAT
5
SCREW-HH M8X1.25X45 8.8 ZOD
7519097
$3,14 Unit Price incl. VAT
6
WASHER FLAT
7556524
$1,56 Unit Price incl. VAT
7
CLAMP HANDLEBAR RETAINER
5631311
$18,89 Unit Price incl. VAT
10
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
11
STRAP STEERING
5258308
$6,29 Unit Price incl. VAT
12
BUSHING STEERING POST
5450881
$13,64 Unit Price incl. VAT
13
SEAL STEERING BUSHING
5414938
$10,49 Unit Price incl. VAT
14
SPACER BUSHING LONG
5139006
$7,34 Unit Price incl. VAT
15
SCR-HXFL-M8X1.25X65 8.8 ZOD
7519971
7521332-65
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
