1
Engine displacement
600
2
Year
2019
3
Trim
600 SWITCHBACK SP 144 ES
4
Parts Catalog

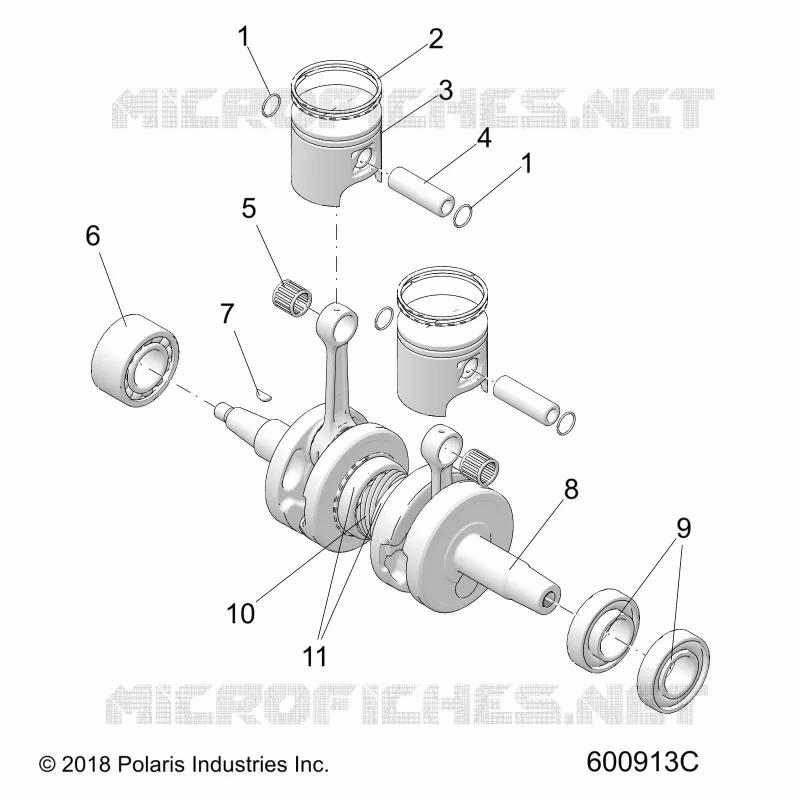

ENGINE, PISTON AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
ENGINE, THROTTLE CONTROL ASM.
by
WIRE HARNESS
ENGINE, PISTON AND CRANKSHAFT
1
1
2
3
4
5
6
7
8
9
10
11
11
11
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
7
8
8
9
9
9
9
9
9
9
10
11
11
1
CIRCLIP
3021867
$6,29 Unit Price incl. VAT
2
KIT PISTON RING [2 RING SET]
2204903
$141,74 Unit Price incl. VAT
3
KIT PISTON [INCL. 1 2 4]
2204900
$356,99 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BEARING-15NDL
3514882
$34,64 Unit Price incl. VAT
6
BEARING BALL DOUBLE ROW
3514530
$182,69 Unit Price incl. VAT
7
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
8
KIT CRANKSHAFT [INCL. 5 6 9-11]
2206372
2208895
$3 039,74 Unit Price incl. VAT
9
BEARING BALL
3514310
$54,59 Unit Price incl. VAT
10
GEAR PUMP DRIVE
5138548
Not Available
11
BEARING BALL W/RING
3090284
$195,29 Unit Price incl. VAT
11
RING SNAP
7710528
7710782
$89,24 Unit Price incl. VAT
11
BEARING BALL
3090283
$141,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
