CHAINCASE ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805B007) FOR ULTRA - 0976778 FROM 1997

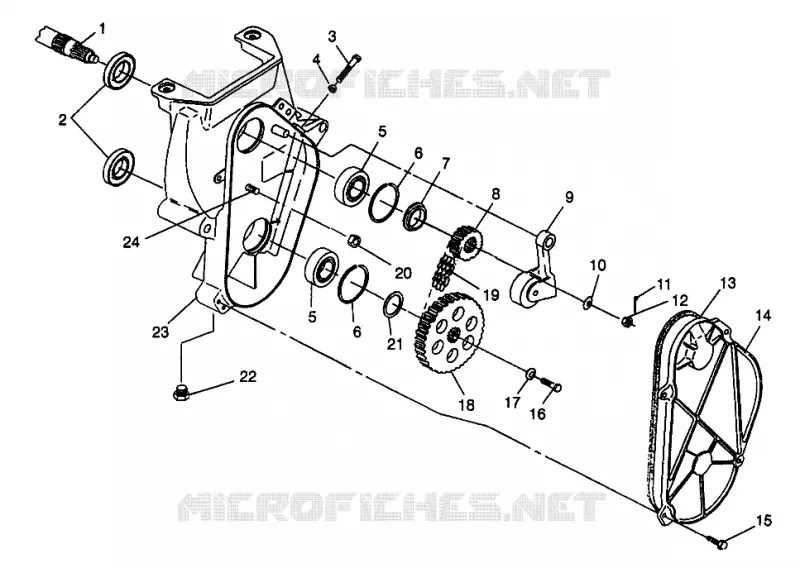

CHAINCASE ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805B007)

1

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

2

SEAL OIL

3610030

$36,74 Unit Price incl. VAT

3

SCREW(10)

7515551

$11,54 Unit Price incl. VAT

4

NUT-3/8-16-Y

7542404

$3,14 Unit Price incl. VAT

5

BEARING

3514308

$29,18 Unit Price incl. VAT

6

RING RETAINING

7718406

$11,54 Unit Price incl. VAT

7

SPACER SPROCKET

5010359

Not Available

8

SPKT 21T (13W) 15T SPLINE (13W)

3221062

Not Available

9

BLOCK TIGHTENER [No Longer Available]

5630122

Not Available

9

TIGHTENER ASM GEARCASE Substituted by 1332213

1332096

Not Available

9

WHEEL C/C IDLER

5630123

Not Available

9

BEARING

3553002

$20,99 Unit Price incl. VAT

9

WASHER THRUST(10)

7558702

$3,14 Unit Price incl. VAT

9

PIN CHAIN TIGHTENER

7662210

Not Available

10

WASHER SPRING

7571620

$13,64 Unit Price incl. VAT

11

PIN COTTER

7661401

$1,56 Unit Price incl. VAT

12

NUT

7542811

$10,49 Unit Price incl. VAT

13

GASKET-CHAINCASE

5410277

Not Available

14

COVER CHAINCASE Substituted by 5630968

5630413

Not Available

15

SCR-1/4-20X1 1/4-TRIRD HX WH-Y

7512242

$4,19 Unit Price incl. VAT

16

SCREW(10)

7515350

$7,34 Unit Price incl. VAT

17

WASHER-SPRING CON 5/16X.090 Z

7571618

$11,54 Unit Price incl. VAT

18

SPROCKET 35T (13W) (13W) (RXL)

3222053

Not Available

19

CHAIN SILENT 64P 13W SHOTPEEN [No Longer Available] (13W)

3224065

Not Available

20

NUT-HEX-3/8-16 A ZTB NYL

7542451

$2,09 Unit Price incl. VAT

21

WSHR-1.00X1.250X.120-Y

7555864

$4,19 Unit Price incl. VAT

22

PLUG

7052115

$10,49 Unit Price incl. VAT

23

CHAINCASE-W/RATCHET MNT

5131568

Not Available

24

BOLT(10)

7515477

$52,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
