1
Engine displacement
500
2
Year
2001
3
Trim
500 INDY
4
Parts Catalog
DRIVE TRAIN
5

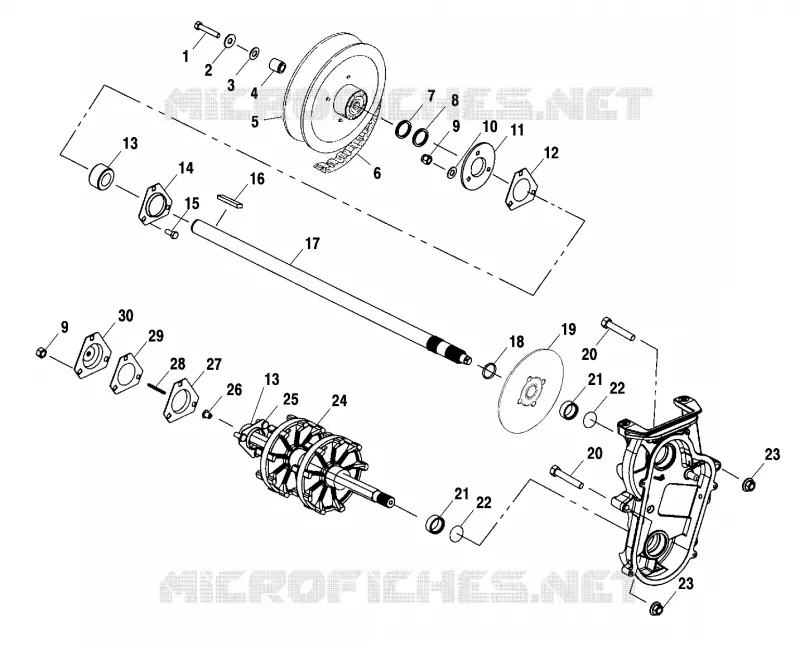

Parts Diagram
Parts Catalog
CHAINCASE
by
RAIL MOUNTING (SUSPENSION)
DRIVE TRAIN
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
15
16
17
18
19
20
20
21
21
22
22
23
23
24
25
26
27
28
29
30
1
BOLT 5/16-18X1 3/4 HX/LK-GR5-Z
7517820
Not Available
2
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020291
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
BELT DRIVE(5)
3211078
$141,21 Unit Price incl. VAT
7
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
8
BUSHING
7556509
$3,14 Unit Price incl. VAT
9
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
10
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
11
FLANGE RD RELUBE W/ZERK
5241359
$62,99 Unit Price incl. VAT
12
GASKET JACKSHAFT BLACK
5811095
$4,19 Unit Price incl. VAT
13
BEARING
3514525
$54,59 Unit Price incl. VAT
14
FLANGETTE
5222751
$26,24 Unit Price incl. VAT
15
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
16
KEY-1/4X3/16X2.75
7721128
$18,89 Unit Price incl. VAT
17
ASM-JACKSHAFT 15 SPL W/M15 BRG (Incl. 13 18)
1332220
$256,19 Unit Price incl. VAT
18
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
19
BRAKE DISC SNOW 6385 CR ASM.
1910403
Not Available
20
BOLT(10)
7515428
$9,44 Unit Price incl. VAT
21
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
22
O-RING
5410613
$3,66 Unit Price incl. VAT
23
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
24
ASM-DRIVESHAFT EDG 1.06 2 DR (Incl. 13 25 26)
1590311
Not Available
25
ASM. FLANGETTE W/SCREWS
1012945
$173,24 Unit Price incl. VAT
26
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
27
FLANGETTE OFFSET W/HOLE
5243529
$26,24 Unit Price incl. VAT
28
SQ. KEY SPEEDOMETER (10)
3280017
$26,24 Unit Price incl. VAT
29
GASKET
5830012
$4,19 Unit Price incl. VAT
30
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
