1
Engine displacement
600
2
Year
2020
3
Trim
600 RACER
4
Parts Catalog

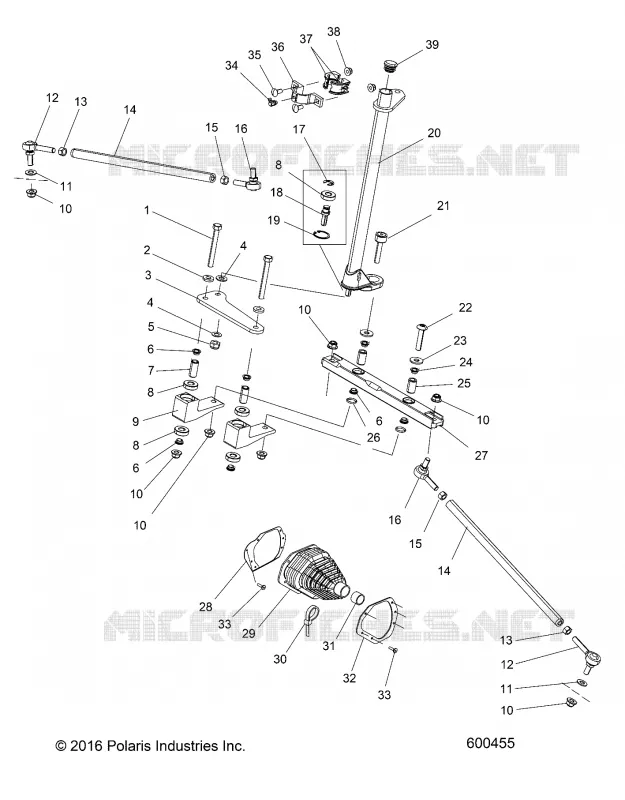

LOWER STEERING AND TIE RODS
5
Parts Diagram
Parts Catalog
CHASSIS, TUNNEL GRIPS AND CLEATS
by
FRONT SUSPENSION, CONTROL ARMS AND SPINDLE
LOWER STEERING AND TIE RODS
1
2
3
4
4
5
5
6
6
7
8
8
8
9
10
10
10
10
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
32
33
33
34
35
36
37
38
39
1
SCR-3/8-24X3 1/4 HXHDCP GR5-Y
7515406
$13,64 Unit Price incl. VAT
2
WASHER-.380X.813X.150
7556160
$7,34 Unit Price incl. VAT
3
MOUNT-PLATE PROGRESSIVE ARM
5262565
$62,99 Unit Price incl. VAT
4
WASHER-0.75X.400X.03 FL-Y
7556580
$2,09 Unit Price incl. VAT
5
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$7,34 Unit Price incl. VAT
6
BUSHING REDUCER
5132106
$13,64 Unit Price incl. VAT
7
SPACER TUBE
5136298
$16,79 Unit Price incl. VAT
8
BEARING
3514320
$27,29 Unit Price incl. VAT
9
ASM. IDLER STEERING [INCL. 6-8]
1823545
$230,99 Unit Price incl. VAT
10
Nut Flanged Lock
7547263
$6,29 Unit Price incl. VAT
11
WASHER
7555806
$1,56 Unit Price incl. VAT
12
ROD END LH
7061063
$99,74 Unit Price incl. VAT
13
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
14
TIE ROD
5135746
$52,49 Unit Price incl. VAT
15
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
16
ROD END-3/8 PL 75� .750 RH
7061136
$99,74 Unit Price incl. VAT
17
RING-RETAINING #E# EXT. .500
7710901
$15,74 Unit Price incl. VAT
18
STUD SPACER
7519163
$58,58 Unit Price incl. VAT
19
RING RETAINING
7710642
$4,19 Unit Price incl. VAT
20
STEERING POST-LOWER RACE [INCL. 8 17-19]
1824510329
$435,74 Unit Price incl. VAT
21
CAM-FOLLOWER STEERING
3514969
$188,99 Unit Price incl. VAT
22
SCR-3/8-24X1.875 TX/TRSS GR5-Y
7518464
$41,99 Unit Price incl. VAT
23
WASHER
7555983
7555893
$1,56 Unit Price incl. VAT
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
PIVOT RACK STEERING
5134692
$36,74 Unit Price incl. VAT
26
O-RING
5411220
$11,54 Unit Price incl. VAT
27
ASM. RACK STEERING [INCL. BUSHINGS]
1824514
$194,24 Unit Price incl. VAT
28
COVER TIE ROD BOOT LH
5249641
$19,94 Unit Price incl. VAT
28
COVER TIE ROD BOOT RH
5249642
$19,94 Unit Price incl. VAT
29
BOOT TIE ROD LH
5412744
$89,24 Unit Price incl. VAT
29
BOOT TIE ROD RH
5412745
$73,49 Unit Price incl. VAT
30
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
31
BUSHING TIE ROD BOOT
5436174
$20,99 Unit Price incl. VAT
32
PLATE TIE ROD BOOT RH
5249227
$83,99 Unit Price incl. VAT
32
PLATE TIE ROD BOOT LH
5249226
$83,99 Unit Price incl. VAT
33
SCR-#10-24 5/8 TAP R TH TX Y
7518284
$4,19 Unit Price incl. VAT
34
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
35
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
36
BRACKET STEERING POST
5132967
$68,24 Unit Price incl. VAT
37
BUSHING-STEERING POST.75DELRIN
5453688
$15,74 Unit Price incl. VAT
38
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
39
PLUG-END CAP
5432831
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
