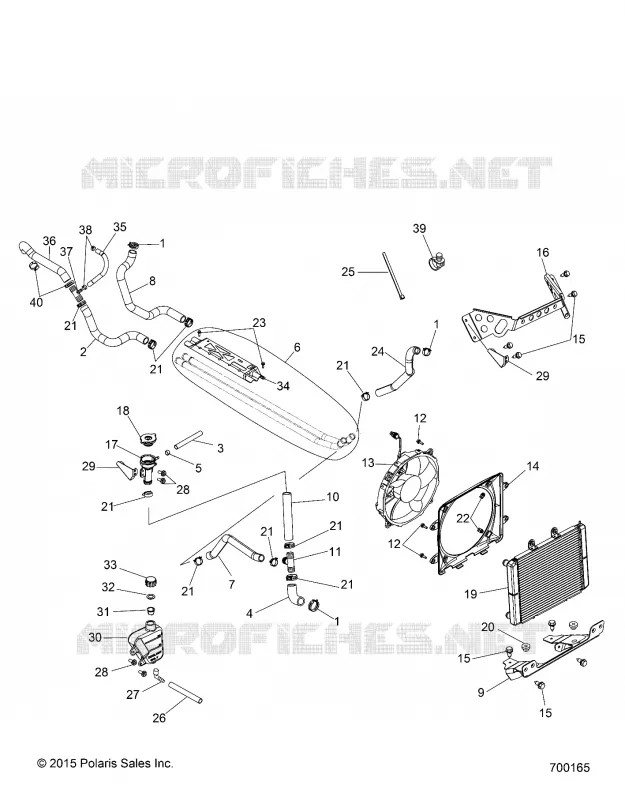

COOLING SYSTEM FOR RZR S 800 EFI - R13VE76AD/AI/AW/7EAS/EAT FROM 2013

COOLING SYSTEM

1

CLAMP-HOSE 13/16#-1 1/2#

7081174

$13,64 Unit Price incl. VAT

2

Hose Engine Inlet Rear

5414206

Not Available

3

LINE FUEL

8450120600

$136,49 Unit Price incl. VAT

4

Hose 90 Degree Radiator Lower

5414202

$62,99 Unit Price incl. VAT

5

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

6

ASM. TUBE COOLANT [INCL. 35]

1240648

$472,49 Unit Price incl. VAT

7

HOSE LOWER FRONT

5414204

$83,99 Unit Price incl. VAT

8

Hose Engine Outlet Rear

5414205

$89,24 Unit Price incl. VAT

9

Bracket Mount Radiator Lower Black

5254709067

$125,99 Unit Price incl. VAT

10

HOSE REMOTE FILLER NECK

5414203

$68,24 Unit Price incl. VAT

11

CONNECTOR-TEE 1# 1# 1# BARBED

7052373

$19,94 Unit Price incl. VAT

12

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$4,19 Unit Price incl. VAT

13

FAN-11# ASSEMBLY ATV PKRD

2410413

$493,49 Unit Price incl. VAT

14

SHROUD FAN

5437845

$99,74 Unit Price incl. VAT

15

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

16

Bracket Mount Radiator Upper Matte Black

5254710458

$73,49 Unit Price incl. VAT

17

FILLER REMOTE COOLANT SMALL

5439079

$62,99 Unit Price incl. VAT

18

CAP PRESSURE

1240300

$73,49 Unit Price incl. VAT

19

Asm. Radiator Core

1240444

$871,49 Unit Price incl. VAT

20

BUSHING-MOUNT LOWER RADIATOR

5410584

$10,49 Unit Price incl. VAT

21

SPRINGBAND-CLAMP 35/12 BLK

7080844

$19,94 Unit Price incl. VAT

22

CLIP-#U# M6.0X1.0

7547366

$9,44 Unit Price incl. VAT

23

SCR-TFHFL-M6X1.0X25 ZOD

7519342

$3,14 Unit Price incl. VAT

24

HOSE RADIATOR UPPER

5414201

$83,99 Unit Price incl. VAT

25

CABLE-TIE 10-102MM WEATH.-RES.

7080761

$5,24 Unit Price incl. VAT

26

HOSE [BULK SVC]

84500031525

$136,49 Unit Price incl. VAT

27

FITTING-1/8-27 BARBED 90 DEG

7052065

$13,64 Unit Price incl. VAT

28

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

29

Bracket Filler Neck

5253450

$52,49 Unit Price incl. VAT

30

TANK-SURGE

5436936

$152,24 Unit Price incl. VAT

31

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$10,49 Unit Price incl. VAT

32

GASKET-OVERFLOW CAP

5810279

$4,19 Unit Price incl. VAT

33

CAP-OVER FLOW BOTTLE DRILLED

5430743

$10,49 Unit Price incl. VAT

34

Bracket Fuel Tank Mount Center Black

5254161329

$73,49 Unit Price incl. VAT

35

Hose Bypass Formed

5413949

Not Available

36

Hose Bypass Formed

5414207

$68,24 Unit Price incl. VAT

37

T-FITTING

7052494

$17,84 Unit Price incl. VAT

38

CLAMP-HOSE .875-SS

7080474

$13,64 Unit Price incl. VAT

39

CLIP-ROUTING

7081496

$9,44 Unit Price incl. VAT

40

CLAMP HOSE SS

7080560

$20,99 Unit Price incl. VAT

40

CLAMP-HOSE 13/16#-1 1/2#

7081174

$13,64 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
