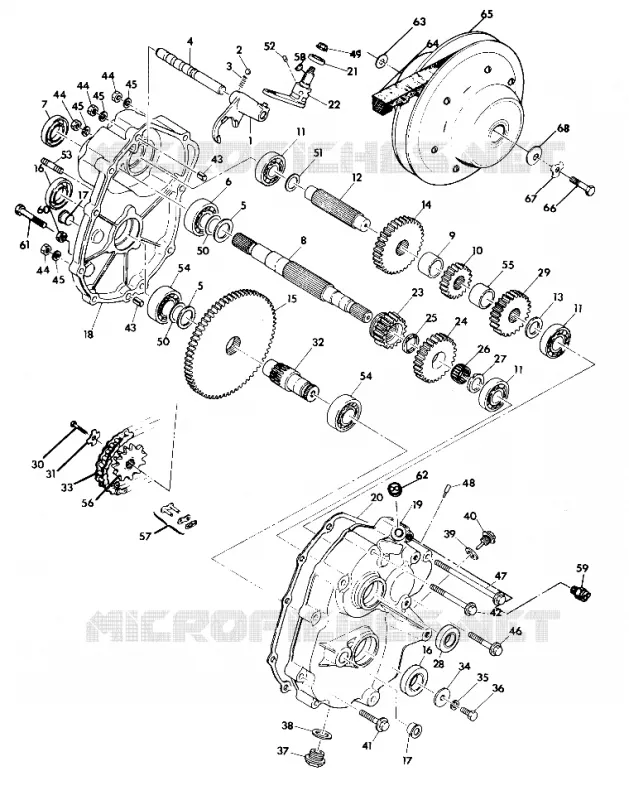

GEARCASE ASSEMBLY BIG BOSS 4X6 (4919801980029A) FOR BIG BOSS 4X6

CLUTCH COVER ASSEMBLY BIG BOSS 4X6 (4919801980024A)

DRIVEN CLUTCH ASSEMBLY BIG BOSS 4X6 (4919801980031A)

GEARCASE ASM(2X4 4X6) [Cannot Purchase as Assembly]

1341065

Not Available

SHIFTER

3231501

$125,99 Unit Price incl. VAT

BALL STEEL

3231502

Not Available

SPRING

3231550

$1,67 Unit Price incl. VAT

SHAFT SHIFT

3231579

$21,83 Unit Price incl. VAT

WASHER

3231505

Not Available

BEARING

3231506

Not Available

SEAL OIL

3231507

Not Available

SHAFT INPUT

3231580

Not Available

COLLAR

3231581

Not Available

GEAR

3231510

$47,45 Unit Price incl. VAT

BEARING

3231511

Not Available

SHAFT

3231512

Not Available

WASHER

3231513

$7,86 Unit Price incl. VAT

GEAR

3231514

Not Available

GEAR

3231582

Not Available

SEAL OIL

3231516

Not Available

SUPPORT

3231517

Not Available

CASE LH

3231594

Not Available

CASE RH

3231583

Not Available

PACKING

3231553

Not Available

SEAL OIL

3231521

Not Available

SHAFT SELECT

3231584

Not Available

GEAR

3231585

Not Available

GEAR

3231524

Not Available

WASHER

3231525

Not Available

BEARING NEEDLE

3231526

Not Available

WASHER

3231527

Not Available

SEAL OIL

3231528

Not Available

GEAR

3231529

Not Available

BOLT(10)

7512391

Not Available

WASHER SHAKEPROOF 5/16

7577902

Not Available

SHAFT OUTPUT

3231586

Not Available

CHAIN DRIVE 88P Substituted by 3224056-088 (Includes Connector)

3224042

3221193-088

$272,99 Unit Price incl. VAT

WASHER(10)

3231599

Not Available

WASHER SPRING(10)

3231545

Not Available

BOLT

3231536

Not Available

PLUG DRAIN 20MM MAGNET

3231569

Not Available

GASKET

3231592

Not Available

GASKET

3231539

Not Available

PLUG OIL

3231561

Not Available

BOLT

3231602

Not Available

BOLT

3231603

Not Available

PIPE KNOCK

3231543

Not Available

NUT(10)

3231604

Not Available

BOLT

3231605

Not Available

BOLT

3231606

Not Available

PIPE BREATHER

3231548

Not Available

NUT LOCK

3231555

Not Available

SHIM 25 0.1

3231563

Not Available

SHIM 25 0.3

3231562

Not Available

SHIM 20 0.3

3231564

Not Available

SHIM 20 0.1

3231565

Not Available

3231607

Not Available

STUD

3231608

Not Available

BEARING

3231609

Not Available

COLLAR

3231587

Not Available

SPKT 12T Substituted by 3221044

3221050

3221044

$83,99 Unit Price incl. VAT

SPKT 11T (Opt.)

3221043

$73,49 Unit Price incl. VAT

CONNECTOR LINK

3225024

$47,24 Unit Price incl. VAT

KEY HI-PRO

7721113

Not Available

SWITCH INDICATOR

4110062

$62,99 Unit Price incl. VAT

NUT-3/8-16-Y

7542404

$3,14 Unit Price incl. VAT

BOLT(10)

7515485

$5,24 Unit Price incl. VAT

SWITCH INDICATOR

4110062

$62,99 Unit Price incl. VAT

Bushing

7556401

Not Available

BELT-DRIVE(5) Substituted by 3211077

3211048

3211077

$107,93 Unit Price incl. VAT

CLUTCH DRIVEN Substituted by 1322158

1322138

Not Available

BOLT(10)

7515327

$10,49 Unit Price incl. VAT

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

WASHER DOMED

5220646

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
