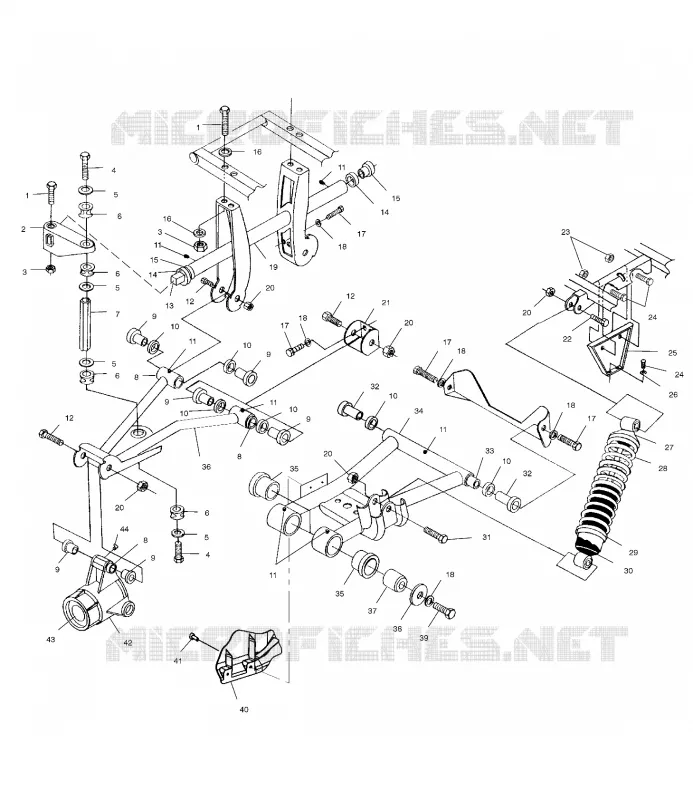

REAR SUSPENSION
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT
by
GEARCASE (INTERNAL COMPONENTS)
REAR SUSPENSION
1
1
2
3
3
4
4
5
5
5
5
6
6
6
6
7
8
8
8
9
9
9
9
9
9
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
11
12
12
12
13
14
14
15
15
15
15
16
16
17
17
17
17
18
18
18
18
18
19
19
20
20
20
20
20
21
22
23
24
24
25
26
27
28
29
29
30
31
32
32
32
32
33
34
34
35
35
35
35
36
36
37
38
39
40
40
41
42
43
44
1
1
2
3
3
4
4
5
5
5
5
6
6
6
6
7
8
8
8
9
9
9
9
9
9
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
11
12
12
12
13
14
14
15
15
15
15
16
16
17
17
17
17
18
18
18
18
18
19
19
20
20
20
20
20
21
22
23
24
24
25
26
27
28
29
29
30
31
32
32
32
32
33
34
34
35
35
35
35
36
36
37
38
39
40
40
41
42
43
44
1
1
2
3
3
4
4
5
5
5
5
6
6
6
6
7
8
8
8
9
9
9
9
9
9
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
11
12
12
12
13
14
14
15
15
15
15
16
16
17
17
17
17
18
18
18
18
18
19
19
20
20
20
20
20
21
22
23
24
24
25
26
27
28
29
29
30
31
32
32
32
32
33
34
34
35
35
35
35
36
36
37
38
39
40
40
41
42
43
44
1
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
2
ARM STAB.BAR BLK
1580107067
1543119-067
$99,74 Unit Price incl. VAT
3
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
4
SCREW(10)
7517231
$13,64 Unit Price incl. VAT
5
Washer Flat
7555761
$4,19 Unit Price incl. VAT
6
Bushing
5432598
$12,59 Unit Price incl. VAT
7
ROD LINKAGE STABILIZER
5020827
$99,74 Unit Price incl. VAT
8
Shaft A-Arm. Short
5020826
$23,09 Unit Price incl. VAT
9
BUSHING-A-ARM-SHORT
5433063
5439270
$4,19 Unit Price incl. VAT
9
Bushing A-Arm Short
5434548
5439270
$4,19 Unit Price incl. VAT
10
BUSHING A-ARM SPACER(10)
5020677
$19,94 Unit Price incl. VAT
11
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
12
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
13
Bar Stabilizer Tube
5334114067
5334114-329
$178,49 Unit Price incl. VAT
14
WSHR-1.28X1.69X.075-Y
7555939
$7,34 Unit Price incl. VAT
15
Bushing Stabilizer Tube (If built after 10/01/01)
5434549
5438901
$16,79 Unit Price incl. VAT
15
BUSHING-STABILIZER TUBE
5433413
5438901
$16,79 Unit Price incl. VAT
16
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
17
SCREW
7512492
$2,09 Unit Price incl. VAT
18
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
19
SUPPORT STABILIZER BLK.
1541322067
Not Available
19
Support Stabilizer (If built after 10/08/01)
1541802067
Not Available
20
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
21
BRKT A-ARM PIVOT BLK
5242077067
Not Available
22
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
23
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
24
BOLT(10)
7515321
Not Available
25
SUPPORT UPR.TRANS BLK
5224667067
$115,49 Unit Price incl. VAT
26
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
27
RETAINER SPRING
5630885
5251753
$19,94 Unit Price incl. VAT
28
SPRING COMP.REAR BLK
7041453067
7042311-067
$141,74 Unit Price incl. VAT
29
CAM-SPRING ADJUST 1-3/8
5631014
$68,24 Unit Price incl. VAT
29
Sleeve Shock Protector
5433551
$83,99 Unit Price incl. VAT
30
SHOCK-RR IRS (If built before 3/01/01)
7041959
$230,99 Unit Price incl. VAT
31
SCREW
7515415
$2,09 Unit Price incl. VAT
32
Bushing A-Arm Long
5434551
5436973
$9,44 Unit Price incl. VAT
32
BUSHING A ARM LONG
5433066
5436973
$9,44 Unit Price incl. VAT
33
SHAFT A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
34
ARM CONTROL RH LOW BLK.
1012718067
Not Available
34
ARM CONTROL LH LOW BLK.
1012717067
Not Available
35
BUSHING CONTROL LOWER
5433065
5438902
$8,39 Unit Price incl. VAT
35
Bushing Control Lower
5434550
5438902
$8,39 Unit Price incl. VAT
36
CONTROL UPPER ARM BLK LH
1040730067
Not Available
36
CONTROL UPPER ARM BLK.RH
1040731067
Not Available
37
Bushing Bearing Carrier
5631141
Not Available
38
Washer
7555936
$7,34 Unit Price incl. VAT
39
Screw
7517297
$9,44 Unit Price incl. VAT
40
SHIELD-CV REAR BLACK RH
5433099070
Not Available
40
SHIELD-CV REAR BLACK LH
5433098070
Not Available
41
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
42
CARRIER WHL.BEARING (MACH)
5131738
5134206
$195,29 Unit Price incl. VAT
43
Bearing Ball
3585502
3514635
$73,49 Unit Price incl. VAT
44
FITTING LUBE 45 DEG.(10)
7080586
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
