CYLINDER FOR 700 XC - 099SB7AS FROM 1999

CYLINDER

1

SCREW

7517578

Not Available

2

WASHER-FLAT 6.15X12X1MM-AL

7555998

$2,09 Unit Price incl. VAT

3

VALVE CHECK OIL PUMP

7052160

Not Available

4

CLAMP HOSE

7080681

$17,84 Unit Price incl. VAT

5

SCR-M6X1.0X22.0 HX/FL-Y/D

7517398

$6,29 Unit Price incl. VAT

6

CLAMP-HOSE .312DIA VINYL COAT

7080683

$4,19 Unit Price incl. VAT

7

ADAPTOR-CARB 40MM OIL INJ SNO

1253259

Not Available

8

STUFFER REED BLOCK Substituted by 5433151

5432104

Not Available

9

REEDVALVE ASM 7.5MM STOP Substituted by 1201840

1201743

Not Available

10

STUFFER

5411251

Not Available

11

O-RING

5411521

$36,74 Unit Price incl. VAT

12

THERMOSTAT 60Â°C

7052224

$89,24 Unit Price incl. VAT

13

COVER-THERMOSTAT M-6 BLEED Substituted by 5630992

5630910

Not Available

14

SCR-M6X1.00X40-HX/FL-Y/D [A15B1 B7]

7516818

$10,49 Unit Price incl. VAT

15

SCREW (10)

7517565

Not Available

16

SCREW M8X1.25X60(10)

7517534

$8,39 Unit Price incl. VAT

17

SENSOR TEMP 93 DEG.C.

4110254

Not Available

18

COVER HD.81MM FIRERED(TWNSNO)

5630891093

Not Available

19

SEAL RUBBER MLDD HEAD

5411294

Not Available

20

O-RING(10)

5410917

$1,56 Unit Price incl. VAT

21

HEAD CYL 81MM BYPASS(TWNSNO)

3021022

Not Available

22

O-RING

5410931

$11,54 Unit Price incl. VAT

23

O-RING-3.489X3.629X.07 HI-TMP

5410932

$36,74 Unit Price incl. VAT

24

CYLINDER 81 MM.

5131824

$392,48 Unit Price incl. VAT

25

GASKET CYL.BASE

5811538

Not Available

26

NUT-M10X1.25-HX/FL

7547013

$3,14 Unit Price incl. VAT

27

CONDUIT FLEX(.75#ID)

552139896

$9,23 Unit Price incl. VAT

28

HOSE BYPASS

5411536

Not Available

29

CLAMP-3 TONG .810-.970(10)

7080810

$4,19 Unit Price incl. VAT

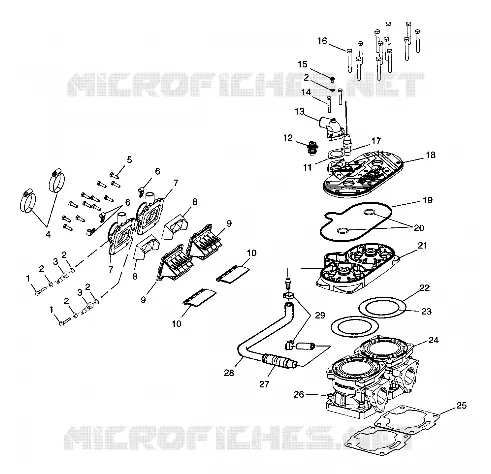

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
