1
Engine displacement
500
2
Year
1999
3
Trim
500 XC - 099SB5AS
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
BRAKE
by
SKI

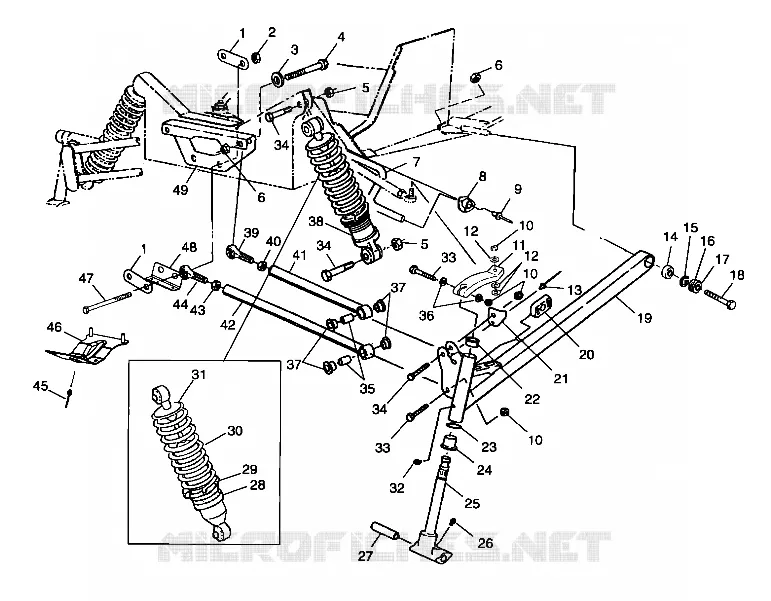

FRONT SUSPENSION
1
1
2
3
4
5
5
6
6
7
8
9
10
10
10
11
11
11
11
12
12
13
14
15
16
17
18
19
19
19
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
34
35
36
37
37
38
39
40
41
42
43
44
45
46
47
48
49
1
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
2
NUT FLEX (10)
7542703
Not Available
3
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
4
BOLT(10)
7512551
Not Available
5
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
6
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
7
BAR TORSION
5242795067
Not Available
8
BUSHING SWAY BAR
5432038
Not Available
9
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
10
Nut
7542403
Not Available
11
ARM RH STRG ALUM.
5131740
Not Available
11
ARM LH STRG ALUM.
5131739
Not Available
12
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
13
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
14
BRG SPHERICAL 7/16 Substituted by 7061042
7061016
Not Available
15
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
16
FOAM TRAILING ARM MOUNT
5811629
Not Available
17
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
18
BOLT(10)
7512579
Not Available
19
ARM TRLG RH Substituted by 1820779 (Incl. 13 14)
1822463
Not Available
19
ARM TRLG LH Substituted by 1820713-067 (Incl. 13 14)
1822462
Not Available
20
SLIDE SWAYBAR 5/8
5432561
$52,49 Unit Price incl. VAT
21
STOP STRG LH.
5242017067
Not Available
21
STOP STRG RH.
5242018067
Not Available
22
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
23
BUSHING
7556509
$3,14 Unit Price incl. VAT
24
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
25
SPINDLE SHAFT HARD.
6230099067
Not Available
26
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
27
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
28
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
29
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
30
SPRING COMP. IFS 100# BLK
7041551067
$115,49 Unit Price incl. VAT
31
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
32
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
33
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
34
SCREW
7515415
$2,09 Unit Price incl. VAT
35
BUSHING
5010127
$12,59 Unit Price incl. VAT
36
Washer .105
7555832
$4,19 Unit Price incl. VAT
37
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
38
SHOCK GAS IFS SELECT
7041523
Not Available
39
ROD END 7/16 LINED Substituted by 7061049
7061010
Not Available
40
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
41
RADIUS ROD UPPER BLK
1820588067
Not Available
42
ROD LOW.RADIUS BLK.
1820584067
Not Available
43
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
44
RODEND 1/2 W/LINER 1.05 WIDE Substituted by 7061052
7061027
7061052
$99,74 Unit Price incl. VAT
45
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
46
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
47
BOLT(10)
7512684
Not Available
48
BRKT. RADIUS ROD BOTTOM
5242578
$68,24 Unit Price incl. VAT
49
BRACE BULKHEAD FRONT BLK
1012575067
$38,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
