1
Engine displacement
700
2
Year
1996
3
Trim
INTL SLT 700 - I964166
4
Parts Catalog

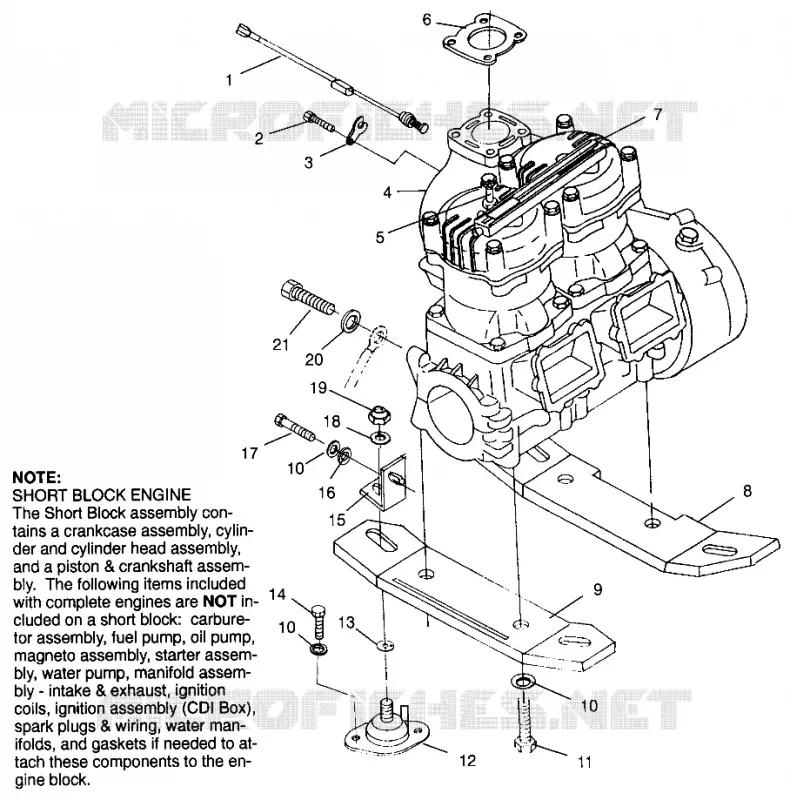

ENGINE MOUNTING SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392B001)
5
Parts Diagram
Parts Catalog
OIL TANK SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A014)
by
DRIVE SYSTEM SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392B002)
ENGINE MOUNTING SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392B001)
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
1
SWITCH ASM TEMP.
4110180
$102,47 Unit Price incl. VAT
2
SCR-HXFL-M5X0.8X14 18-8
7516603
$19,94 Unit Price incl. VAT
3
CLIP RETAIN TEMP.SW.
5240876
$6,39 Unit Price incl. VAT
4
SHORT BLOCK TWIN KIT [No Longer Available]
2200681
Not Available
5
SPARKPLUG BPR-7ES(10)
3070173
Not Available
6
GASKET EXH.PIPE
5830051
Not Available
7
DECAL WARNING
7075383
Not Available
8
PLATE F.MOUNT Substituted by 5631128
5630585
Not Available
9
PLATE R.MOUNT Substituted by 5631129
5630584
Not Available
10
WASHER FLAT
7555956
Not Available
11
BOLT S.S.(10)
7512573
$2,82 Unit Price incl. VAT
12
MT ENG ANTI-ROTATION SLT Substituted by 3021102
3110054
Not Available
13
SHIM ENG.MT.(PWC)
5211727
Not Available
14
BOLT S.S.
7515365
Not Available
15
BRKT R.MUFFLER Substituted by 1060142
5241546
Not Available
16
WASHER FLAT S.S. (10)
7555835
$0,93 Unit Price incl. VAT
17
BOLT S.S.(10)
7515357
Not Available
18
WASHER FLAT S.S.(10) (.02)
7555848
Not Available
19
NUT
7547001
$3,14 Unit Price incl. VAT
20
WASHER LOCK(10)
7552613
Not Available
21
BOLT(10)
7516809
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
