REAR SUSPENSION TORQUE ARM FOR 800 DRAGON SP FROM 2009

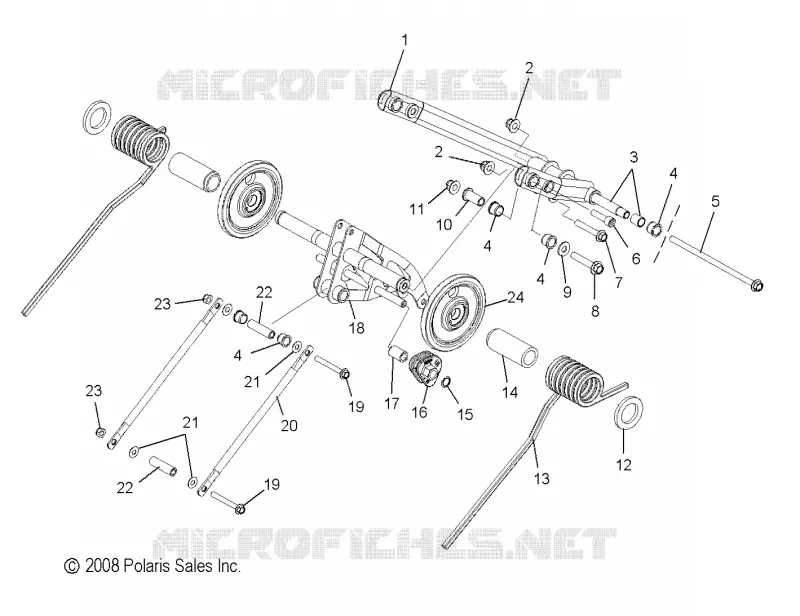

REAR SUSPENSION TORQUE ARM

1

Asm. Rear Torque Arm LWT Black [Incl. 4]

1542641067

$346,49 Unit Price incl. VAT

2

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

3

Asm. Shaft Rear Torque Arm LWT

1542596

$26,97 Unit Price incl. VAT

4

Bushing Pivot

5136418

Not Available

5

Screw

7518964

$23,09 Unit Price incl. VAT

6

Screw Socket ZOD

7518959

Not Available

7

Screw HX/FL ZOD

7519062

$6,81 Unit Price incl. VAT

8

Screw HX/FL ZOD

7518968

$41,99 Unit Price incl. VAT

9

WASHER-M12.4X28X2.1 ZOD

7556474

$6,29 Unit Price incl. VAT

10

Shaft Pivot

5136420

Not Available

11

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$9,44 Unit Price incl. VAT

12

Washer Torsion Spring

5437732

Not Available

13

Spring Torsion 359 S 11# RH Black [Std.]

7043529329

$225,74 Unit Price incl. VAT

13

Spring Torsion 375 S 72 13# HD LH Black [Opt.]

7043550329

Not Available

13

Spring Torsion 375 S 72 13# HD RH Black [Opt.]

7043551329

Not Available

13

Spring Torsion 359 S 11# LH Black [Std.]

7043528329

$225,74 Unit Price incl. VAT

14

Guide Torsion Spring

5438081

Not Available

15

CLIP PUSH ON

7080394

$4,19 Unit Price incl. VAT

16

ROLLER-SPRING TRI-ADJ LH

5434589

$68,24 Unit Price incl. VAT

16

ROLLER-SPRING TRI-ADJ RH

5434590

$62,99 Unit Price incl. VAT

17

SPACER-.520X.770X1.185 HDPE

5334285

$4,19 Unit Price incl. VAT

18

Asm. Rear Torque Arm Torsion Spring Shaft Black

1542643067

Not Available

19

Screw HX/FL ZOD

7518961

$6,81 Unit Price incl. VAT

20

Rod Shock Black

5335608329

Not Available

21

Washer ZOD

7556471

Not Available

22

Bushing Shock Rod

5136431

Not Available

23

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$7,34 Unit Price incl. VAT

24

Asm. Wheel Plain

1590456

$62,46 Unit Price incl. VAT

24

Ring Retaining

7710622

$23,09 Unit Price incl. VAT

24

Bearing

3514638

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
