1
Engine displacement
850
2
Year
2016
3
Trim
SPORTSMAN 850 SP
4
Parts Catalog
WHEELS, FRONT AND HUB
5
Parts Diagram
Parts Catalog
REAR SUSPENSION
by
DECALS

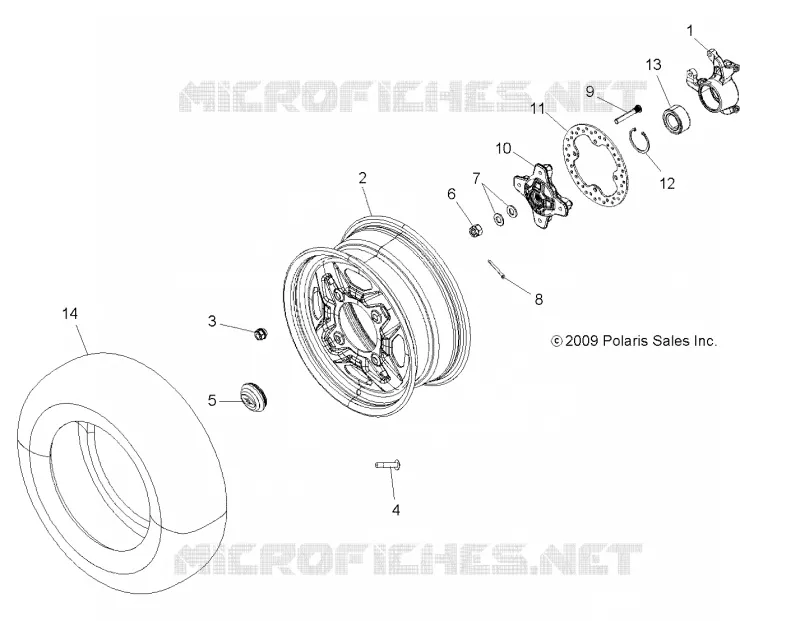

WHEELS, FRONT AND HUB
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
3
3
3
4
4
5
5
5
5
6
6
6
6
1
KNUCKLE LH
5136733
5143613
$272,99 Unit Price incl. VAT
1
ASM. STEERING KNUCKLE LH [INCLS 1 4 &5]
1822945
Not Available
1
ASM. STEERING KNUCKLE RH [INCLS 1 4 &5]
1822946
Not Available
1
KNUCKLE RH
5136734
5143614
$272,99 Unit Price incl. VAT
2
RIM FRONT 14#X6 BLACK
1521910067
1525357-067
$237,81 Unit Price incl. VAT
3
NUT-WHEEL M10X1.25 TAPERED
7547363
$9,44 Unit Price incl. VAT
4
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
5
CAP HUB DUST
5413792
5413473
$62,99 Unit Price incl. VAT
6
NUT-CASTLE M18X1.5X13
7547406
$9,44 Unit Price incl. VAT
7
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
8
COTTER PIN-1/8 X 1 1/4-Y
7661402
$3,14 Unit Price incl. VAT
9
STUD WHEEL
7518671
$3,14 Unit Price incl. VAT
10
HUB WHEEL
5135499
5136946
$178,49 Unit Price incl. VAT
11
DISC BRAKE
5250205
$141,74 Unit Price incl. VAT
12
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
13
BEARING-BALL SEALED 44X72X33.1
3514699
$73,49 Unit Price incl. VAT
14
TIRE-26X8-14 WILD THANG
5415600
$250,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
