1
Engine displacement
500
2
Year
1996
3
Trim
500 CARB SKS - 0962564
4
Parts Catalog

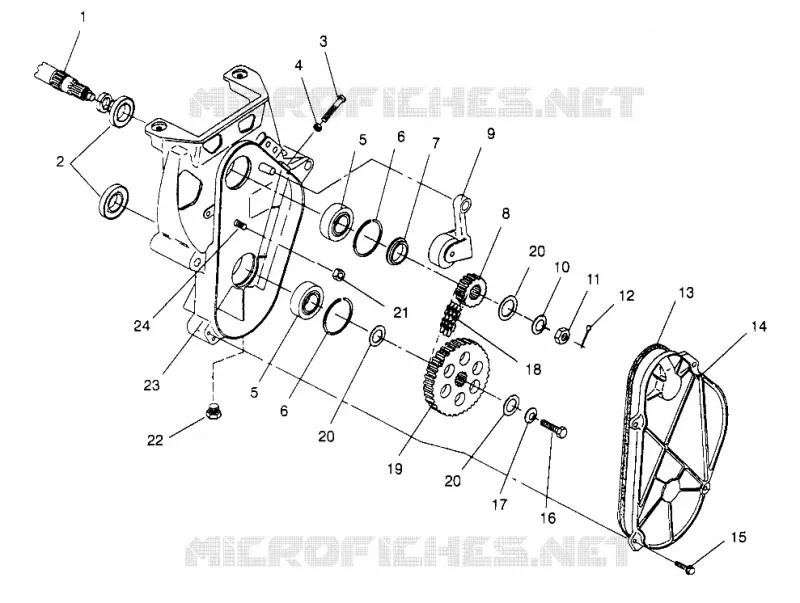

CHAINCASE ASSEMBLY 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS E9 (4931873187B011)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS E96256 (4931873187B010)
by
DRIVE TRAIN ASSEMBLY 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS (4931873187B012)
CHAINCASE ASSEMBLY 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS E9 (4931873187B011)
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
3
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
4
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
5
BEARING W/O SEAL
3514304
$27,29 Unit Price incl. VAT
6
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
7
SPACER SPROCKET
5010359
Not Available
8
SPKT 21T 11W 15T (11) 15T Spline
3221066
Not Available
8
SPKT 20T (11W) 15T SPLINE (Tour)
3221065
Not Available
8
SPKT 18T(11W) 15T SPLINE (RMK)
3221070
Not Available
9
BLOCK TIGHTENER [No Longer Available]
5630122
Not Available
9
TIGHTENER ASM GEARCASE Substituted by 1332213
1332096
Not Available
9
WHEEL C/C IDLER
5630123
Not Available
9
BEARING
3553002
$20,99 Unit Price incl. VAT
9
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
9
PIN CHAIN TIGHTENER
7662210
Not Available
10
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
11
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
12
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
13
GASKET-CHAINCASE
5410277
Not Available
14
COVER CHAINCASE Substituted by 5630968
5630413
Not Available
15
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
16
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
17
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
18
CHAIN 66 PITCH
3224024
Not Available
19
SPROCKET 39 T
3222034
Not Available
20
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
21
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
22
PLUG
7052115
$10,49 Unit Price incl. VAT
23
CHAINCASE VENTED W/BRG CLEAR. Substituted by 5131568
5131121
Not Available
24
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
