1
Engine displacement
600
2
Year
1995
3
Trim
600 XCR - 0951676
4
Parts Catalog

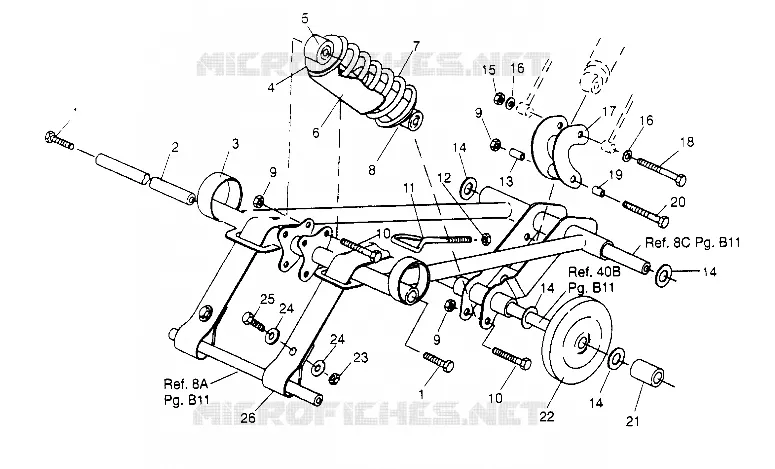

FRONT TORQUE ARM 600 XCR 0951676 (4929132913B012)
5
Parts Diagram
Parts Catalog
STEERING ASSEMBLY 600 XCR 0951676 (4929132913B007)
by
REAR TORQUE ARM 600 XCR 0951676 (4929132913B013)
FRONT TORQUE ARM 600 XCR 0951676 (4929132913B012)
1
1
2
3
4
5
6
7
8
9
9
9
10
10
11
12
13
14
14
14
14
15
16
16
17
18
19
20
21
22
23
24
24
25
26
1
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
2
SHAFT MOUNTING
5010149
Not Available
3
ARM FR.TORQUE BLK.
1540829067
Not Available
4
RETAINER SPRING SLOTTED
5020618
$36,74 Unit Price incl. VAT
5
SHOCK FR TRACK(FOX)
7041413
Not Available
6
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
7
SPRING BLACK COMP.
7041253067
Not Available
8
RETAINER SPRING BODY
5020617
Not Available
9
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
10
SCREW
7515415
$2,09 Unit Price incl. VAT
11
BOLT EYE
7010050
Not Available
12
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
13
BUSHING PIVOT TUBE
5020561
$2,61 Unit Price incl. VAT
14
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
15
NUT FLEX LOC (10)
7542402
$11,54 Unit Price incl. VAT
16
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
17
SHOCK ARM WELD BLK.
1540791067
Not Available
18
BOLT(10)
7515525
Not Available
19
SPACER
5333028
$2,61 Unit Price incl. VAT
20
BOLT
7515438
$9,44 Unit Price incl. VAT
21
SPACER OUTER
5332784
Not Available
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
24
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
25
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
26
STRAP LIMITER FR.
5410840
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
