1
Engine displacement
650
2
Year
1991
3
Trim
SWE 650 RXL SKS - S910568
4
Parts Catalog

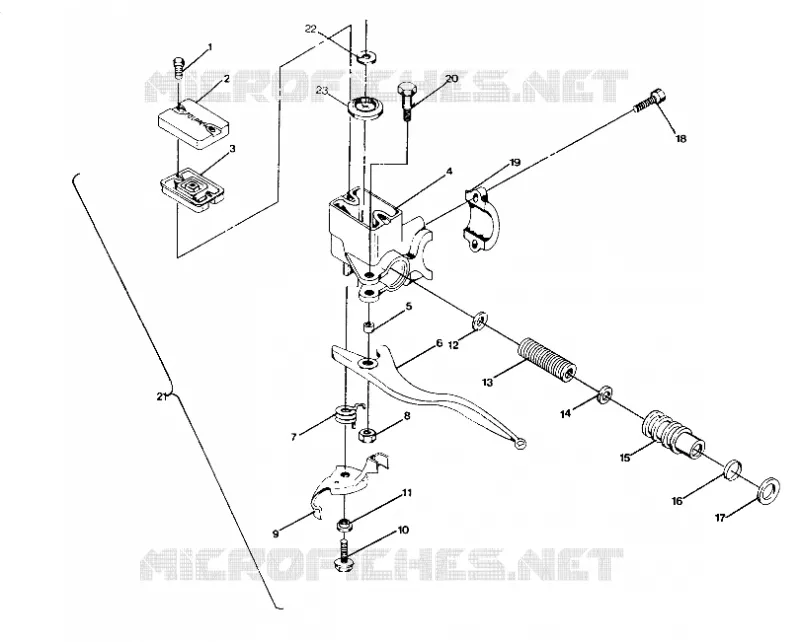

MASTER CYLINDER 650 RXL (4919531953020A)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 650 RXL (4919531953019A)
by
BATTERY BOX ASM. 650 RXL (4919531953021A)
MASTER CYLINDER 650 RXL (4919531953020A)
1
SCREW SEMS(10)
7512020
$4,19 Unit Price incl. VAT
2
COVER MASTER CYL.
5630338
Not Available
3
GASKET MASTER CYL.
5410527
$13,64 Unit Price incl. VAT
4
HOUSING MASTER CYL. [Cannot Purchase as Assembly]
5130691
Not Available
5
BUSHING BRAKE LEVER
5332931
Not Available
6
LEVER BRAKE Substituted by 5630409
5630381
Not Available
7
SPRING PK.BRAKE
7041229
$62,99 Unit Price incl. VAT
8
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
9
LEVER PARKING BRAKE
5222310
Not Available
10
SCREW
7511866
$9,44 Unit Price incl. VAT
11
BUSHING PK.BRAKE LEVER
5020545
Not Available
12
WASHER(10)
7555708
$7,34 Unit Price incl. VAT
13
SPRING-INNER Substituted by 7041203
7041067
$52,49 Unit Price incl. VAT
14
U PACKING SEAL
5410164
$17,84 Unit Price incl. VAT
15
PISTON MASTER CYL.
5020520
Not Available
16
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
17
SEAL OIL
3610022
Not Available
18
SCREW SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
19
CLAMP MASTER CYL.
5630342
Not Available
20
BOLT BRAKE LEVER(10)
7512287
Not Available
21
MASTER CYL. ASM. Substituted by 2050070 (Incl. 1-20)
1930646
Not Available
22
WASHER BAFFLE(10)
1930662
Not Available
23
BAFFLE MASTER CYL.
1930673
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
