1
Engine displacement
850
2
Year
2022
3
Trim
850 RMK KHAOS MATRYX SLASH 146
4
Parts Catalog
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS
5
Parts Diagram
Parts Catalog
CHASSIS, BULKHEAD ASM.
by
CHASSIS, TIE ROD BOOT ASM.

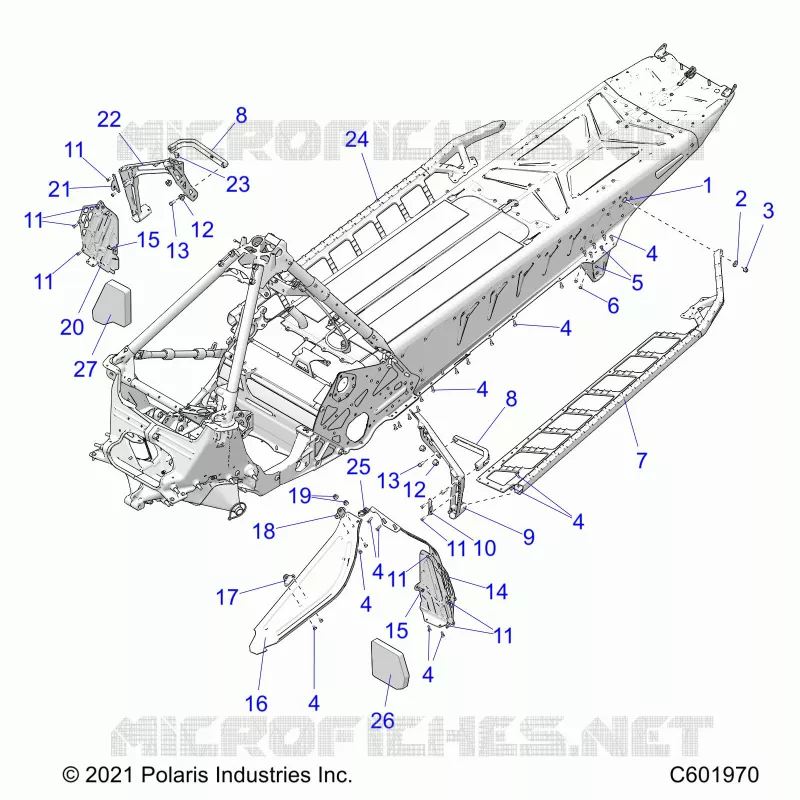

CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS
-
1
2
19
4
4
4
4
4
4
4
4
5
6
7
7
7
7
8
8
8
8
8
8
9
9
9
9
10
11
11
11
11
11
11
12
12
13
14
15
15
16
17
18
19
20
21
22
22
22
22
23
24
24
24
24
25
26
27
-
CLIP-TOE MACH ORANGE ORANGE COLOR OPTION
5143789647
$99,74 Unit Price incl. VAT
1
SCR-RHCARM6X1.0X20 8.8 ZOD
7518994
$6,29 Unit Price incl. VAT
2
WSHR-6.4X18.0X1.6 ZPB
7556064
$9,44 Unit Price incl. VAT
3
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
4
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
5
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$2,09 Unit Price incl. VAT
6
SCR-M5X.8X10 TX BTN PIN-IN HD
7518457
$4,19 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH GLBLK BLACK COLOR OPTION
1026039067
$488,24 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH ORG ORANGE COLOR OPTION
1026039647
$488,24 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH SGRY STEALTH GRAY COLOR OPTION
1026039804
$488,24 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH NATURAL COLOR OPTION
1026039
$440,99 Unit Price incl. VAT
8
CLIP-TOE MACH BLACK BLACK COLOR OPTION
5143789067
$99,74 Unit Price incl. VAT
8
CLIP-TOE MACH STLTH GRAY STEALTH GRAY COLOR OPTION
5143789804
$110,24 Unit Price incl. VAT
8
CLIP-TOE MACH NATURAL COLOR OPTION
5143789
$99,74 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH GBLK BLACK COLOR OPTION
5143787067
$178,49 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH ORGB ORANGE COLOR OPTION
5143787647
$178,49 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH NATURAL COLOR OPTION
5143787
$99,74 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH SGRY STEALTH GRAY COLOR OPTiON
5143787804
$178,49 Unit Price incl. VAT
10
BRKT-FENDER MOUNT LH
5272560
1027422
$89,24 Unit Price incl. VAT
11
SCR-M5X0.8X12 10.9 TX/BH ZPC
7520967
$7,34 Unit Price incl. VAT
12
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
13
SCR-HXFL M6X1.0X16 8.8ZY3DL204
7519329
$7,34 Unit Price incl. VAT
14
ASM-TOE STOP LH
1026558
1029128
$120,74 Unit Price incl. VAT
15
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
16
ASM-GUARD CLUTCH [INCL. 4 17 18]
1025167
1029233
$125,99 Unit Price incl. VAT
17
ASM-BRKT OIL BOTTLE FRONT
1025803
1029233
$125,99 Unit Price incl. VAT
18
ASM-BRKT OIL BOTTLE REAR
1025804
1029233
$125,99 Unit Price incl. VAT
19
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
20
ASM-TOE STOP RH
1026559
$120,74 Unit Price incl. VAT
21
BRKT-FENDER MOUNT RH
5272561
Not Available
22
SUPPORT-FOOTREST MACH RH ORGB ORANGE COLOR OPTION
5143788647
$178,49 Unit Price incl. VAT
22
SUPPORT-FOOTREST MACH RH GBLK BLACK COLOR OPTION
5143788067
$178,49 Unit Price incl. VAT
22
SUPPORT-FOOTREST MACH RH NATURAL COLOR OPTION
5143788
$99,74 Unit Price incl. VAT
22
SUPPORT-FOOTREST MACH RH SGRY STEALTH GRAY COLOR OPTION
5143788804
$178,49 Unit Price incl. VAT
23
CLIP-#U# M6.0X1.0
7547366
$9,44 Unit Price incl. VAT
24
ASM-RUNNINGBOARD RH ORG ORANGE COLOR OPTION
1026040647
$488,24 Unit Price incl. VAT
24
ASM-RUNNINGBOARD RH SGRY STEALTH GRAY COLOR OPTION
1026040804
$488,24 Unit Price incl. VAT
24
ASM-RUNNINGBOARD RH NATURAL COLOR OPTION
1026040
$440,99 Unit Price incl. VAT
24
ASM-RUNNINGBOARD RH GLBLK BLACK COLOR OPTION
1026040067
$456,74 Unit Price incl. VAT
25
CLIP-EDGE 1-3MM THICKNESS
7082428
$9,44 Unit Price incl. VAT
26
FOAM-TOE STOP LH
5815240
$10,49 Unit Price incl. VAT
27
FOAM-TOE STOP RH
5815242
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
