1
Engine displacement
150
2
Year
2017
3
Trim
ACE 150 MD
4
Parts Catalog

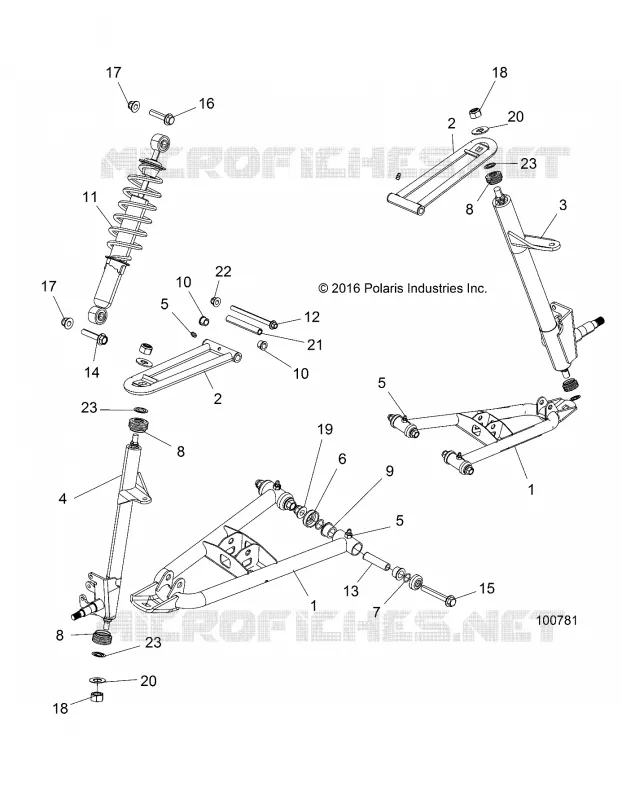

FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
ENGINE, THROTTLE BODY AND FUEL RAIL
by
REAR SUSPENSION SWING ARM
FRONT SUSPENSION
22
23
23
23
1
WELD-A-FRAME LWR FRT BLK
1543782458
$225,74 Unit Price incl. VAT
2
WELD-A-FRAME UPPER FRT BLK
1543783458
$73,49 Unit Price incl. VAT
3
ASM-STEERING SPINDLE LH BLACK
1824576458
$194,24 Unit Price incl. VAT
4
ASM-STEERING SPINDLE RH BLACK
1824577458
$194,24 Unit Price incl. VAT
5
FITTING-LUB M6X1-STR/1792-Y
7082290
$13,64 Unit Price incl. VAT
6
CAP-LWR SUSPENSION ARM DUST
5416085
$15,74 Unit Price incl. VAT
7
SEAL-O-RING 21.2X2.65
5416086
$2,09 Unit Price incl. VAT
8
SEAL-BALL HEAD DUST SPINDLE
5416087
$16,79 Unit Price incl. VAT
9
BUSHING-LWR SUSPENSION ARM
5453651
$16,79 Unit Price incl. VAT
10
BUSHING-UPPER SUSPENSION ARM
5453653
$16,79 Unit Price incl. VAT
11
ASM-SHOCK FRONT
7044747
7044747-458
$293,99 Unit Price incl. VAT
12
SCR-HXFL-M8X1.25X110 10.9 ZPC
7517409
$41,99 Unit Price incl. VAT
13
COLLAR-LWR SUSPENSION ARM
7556999
$13,64 Unit Price incl. VAT
14
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$12,59 Unit Price incl. VAT
15
SCR-HXFL-M10X1.5X80 10.9 ZY3
7519143
$19,94 Unit Price incl. VAT
16
SCR-HXFL-M10X1.5X45 10.9 RIE
7519906
$9,44 Unit Price incl. VAT
17
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
18
NUT-HEX M12X1.25 8 ZPC NYL
7547796
$7,34 Unit Price incl. VAT
19
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
20
WASHER-7/16 SAE STF THRU-HRD-Y
7556212
$15,74 Unit Price incl. VAT
21
COLLAR-UPPER SUSPENSION ARM
7556998
$13,64 Unit Price incl. VAT
22
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
23
SPACER-BALL HEAD SPINDLE
7556996
$1,04 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
