1
Engine displacement
500
2
Year
1998
3
Trim
500 - 0982764A
4
Parts Catalog

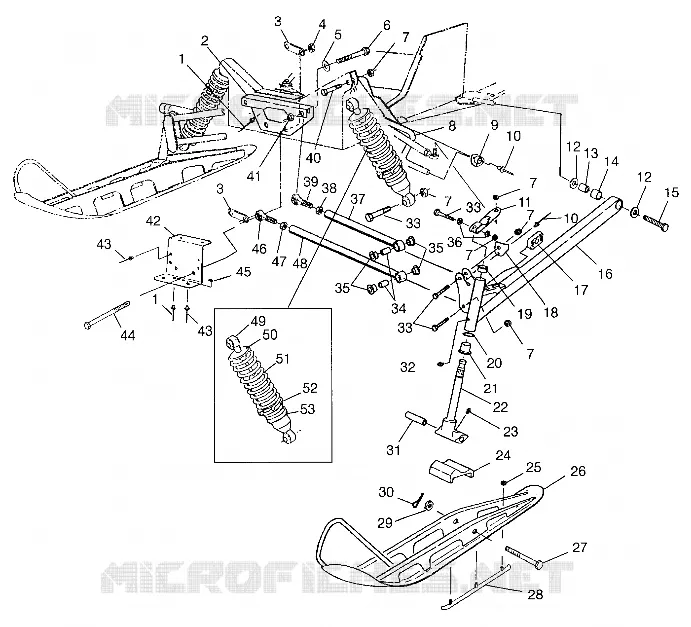

FRONT SUSPENSION AND SKI 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E9827 (4942104210B005)
5
Parts Diagram
Parts Catalog
STEERING 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B004)
by
SUSPENSION 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B007)
FRONT SUSPENSION AND SKI 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E9827 (4942104210B005)
1
1
2
3
3
4
5
6
7
7
7
7
7
7
8
9
10
10
11
11
11
11
12
12
13
14
15
16
16
16
16
17
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
33
34
35
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
50
51
52
53
1
1
2
3
3
4
5
6
7
7
7
7
7
7
8
9
10
10
11
11
11
11
12
12
13
14
15
16
16
16
16
17
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
33
34
35
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
50
51
52
53
1
1
2
3
3
4
5
6
7
7
7
7
7
7
8
9
10
10
11
11
11
11
12
12
13
14
15
16
16
16
16
17
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
33
34
35
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
50
51
52
53
1
1
2
3
3
4
5
6
7
7
7
7
7
7
8
9
10
10
11
11
11
11
12
12
13
14
15
16
16
16
16
17
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
33
34
35
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
50
51
52
53
1
1
2
3
3
4
5
6
7
7
7
7
7
7
8
9
10
10
11
11
11
11
12
12
13
14
15
16
16
16
16
17
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
33
34
35
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
50
51
52
53
1
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
2
BRACE F.BULKHEAD
5242112067
Not Available
3
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
4
NUT FLEX (10)
7542703
Not Available
5
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
6
BOLT(10)
7512551
Not Available
7
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
8
BAR SWAY 9/16 X-10 BLK (XLT SKS)
5224743067
$112,86 Unit Price incl. VAT
9
BUSHING SWAYBAR 9/16 Substituted by 5432412
5432886
$27,29 Unit Price incl. VAT
10
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
11
ARM RH STRG BLK.
5241661067
Not Available
11
ARM LH STRG BLK.
5241660067
Not Available
12
WASHER
7555721
$2,09 Unit Price incl. VAT
13
BUSHING
5010310
$19,94 Unit Price incl. VAT
14
PIVOT RUBBER
5410872
$15,74 Unit Price incl. VAT
15
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
16
ARM TRLG RH (Incl. 14 15)
1822450
Not Available
16
ARM TRLG LH (Incl. 14 15)
1822449
Not Available
17
SLIDE SWAYBAR 9/16
5432332
$68,24 Unit Price incl. VAT
18
STOP RH STRG BLK.
5241778067
$29,28 Unit Price incl. VAT
18
STOP LH STRG BLK
5241777067
Not Available
19
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
20
BUSHING
7556509
$3,14 Unit Price incl. VAT
21
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
22
SHAFT SPINDLE TRLG BLK
6230102067
$440,99 Unit Price incl. VAT
23
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
24
STOP RUBBER
5411083
$26,24 Unit Price incl. VAT
25
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
26
SKI WELD
1820430067
Not Available
27
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
28
SKAG PR. CARBIDE
2870693
$99,74 Unit Price incl. VAT
29
NUT CASTLE(10) Substituted by 7542438
7542457
7542438
$3,14 Unit Price incl. VAT
30
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
31
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
32
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
33
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
34
BUSHING
5010127
$12,59 Unit Price incl. VAT
35
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
36
WASHER(10) Substituted by 7555832
7555851
7555832
$4,19 Unit Price incl. VAT
37
ROD RAD UPPER BLK
1822375067
Not Available
38
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
39
ROD END 7/16 LINED Substituted by 7061049
7061010
Not Available
40
BOLT(10) Substituted by 7515415
7515515
$2,09 Unit Price incl. VAT
41
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
42
BRKT PAN-SUPPORT CRC BLK
5242172067
Not Available
43
RIVET
7621467
$2,09 Unit Price incl. VAT
44
BOLT(10)
7512684
Not Available
45
BURR-RIVET
7555904
$1,56 Unit Price incl. VAT
46
ROD END Substituted by 7061027
7060162
7061052
$99,74 Unit Price incl. VAT
47
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
48
ROD RAD LOWER BLK
1822377067
Not Available
49
SHOCK GAS IFS SELECT
7041496
Not Available
50
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
51
SPRING COMP. IFS BLK
7041552067
$83,99 Unit Price incl. VAT
52
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
53
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for 500 - 0982764A

TUNNEL 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210A005)

TUNNEL 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210A005)

for 500 - 0982764A from 1998

SEAT GAS TANK 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210A007)

SEAT GAS TANK 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210A007)

for 500 - 0982764A from 1998

HOOD 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210A014)

HOOD 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210A014)

for 500 - 0982764A from 1998

HOOD

HOOD

for 500 - 0982764A from 1998

IGNITION WIRE HARNESS 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982 (4942104210B002)

IGNITION WIRE HARNESS 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982 (4942104210B002)

for 500 - 0982764A from 1998

STEERING

STEERING

for 500 - 0982764A from 1998

FRONT TORQUE ARM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B009)

FRONT TORQUE ARM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B009)

for 500 - 0982764A from 1998

REAR TORQUE ARM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B010)

REAR TORQUE ARM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B010)

for 500 - 0982764A from 1998

COOLING SYSTEM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B011)

COOLING SYSTEM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B011)

for 500 - 0982764A from 1998

CONTROLS 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B012)

CONTROLS 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B012)

for 500 - 0982764A from 1998

DRIVE CLUTCH 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C003)

DRIVE CLUTCH 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C003)

for 500 - 0982764A from 1998

DRIVEN CLUTCH 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C004)

DRIVEN CLUTCH 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C004)

for 500 - 0982764A from 1998

EXHAUST SYSTEM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C005)

EXHAUST SYSTEM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C005)

for 500 - 0982764A from 1998

OIL TANK AIR BOX 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C006)

OIL TANK AIR BOX 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C006)

for 500 - 0982764A from 1998

CARBURETOR 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C012)

CARBURETOR 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C012)

for 500 - 0982764A from 1998

OIL PUMP 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C013)

OIL PUMP 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C013)

for 500 - 0982764A from 1998

MAGNETO 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C014)

MAGNETO 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C014)

for 500 - 0982764A from 1998

RECOIL STARTER 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210D001)

RECOIL STARTER 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210D001)

for 500 - 0982764A from 1998

NOSEPAN 500 INDY 0982764(A)(B) and EUROPEAN 500 INDY E982764A (4942104210A008)

NOSEPAN 500 INDY 0982764(A)(B) and EUROPEAN 500 INDY E982764A (4942104210A008)

for 500 - 0982764A from 1998

NOSEPAN 500 INDY 0982764(A)(B) and EUROPEAN 500 INDY E982764A (4942104210A009)

NOSEPAN 500 INDY 0982764(A)(B) and EUROPEAN 500 INDY E982764A (4942104210A009)

for 500 - 0982764A from 1998

DECALS

DECALS

for 500 - 0982764A from 1998

DECALS

DECALS

for 500 - 0982764A from 1998

DECALS

DECALS

for 500 - 0982764A from 1998

STEERING 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B004)

STEERING 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B004)

for 500 - 0982764A from 1998

FRONT SUSPENSION AND SKI 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E9827 (4942104210B005)

FRONT SUSPENSION AND SKI 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E9827 (4942104210B005)

for 500 - 0982764A from 1998

SUSPENSION 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B007)

SUSPENSION 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B007)

for 500 - 0982764A from 1998

RAIL MOUNTING (SUSPENSION) 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E98 (4942104210B008)

RAIL MOUNTING (SUSPENSION) 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E98 (4942104210B008)

for 500 - 0982764A from 1998

CHAINCASE 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B013)

CHAINCASE 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B013)

for 500 - 0982764A from 1998

DRIVE TRAIN 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B014)

DRIVE TRAIN 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B014)

for 500 - 0982764A from 1998

BRAKE 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C001)

BRAKE 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C001)

for 500 - 0982764A from 1998

ENGINE MOUNTING 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C002)

ENGINE MOUNTING 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C002)

for 500 - 0982764A from 1998

CRANKCASE 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C007)

CRANKCASE 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C007)

for 500 - 0982764A from 1998

CYLINDER 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C008)

CYLINDER 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C008)

for 500 - 0982764A from 1998

PISTON CRANKSHAFT 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C009)

PISTON CRANKSHAFT 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C009)

for 500 - 0982764A from 1998

WATER PUMP 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C010)

WATER PUMP 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C010)

for 500 - 0982764A from 1998

FUEL PUMP 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C011)

FUEL PUMP 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210C011)

for 500 - 0982764A from 1998

TOOL KIT 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210D002)

TOOL KIT 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210D002)

for 500 - 0982764A from 1998

POLARIS 500 - 0982764A 1998

500 - 0982764A

500 - 0982764A

Model : OTHERS

Engine capacity : 500

Year : 1998

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
