1
Engine displacement
500
2
Year
2007
3
Trim
SCRAMBLER 500 2X4 INTL - A07BA50FA
4
Parts Catalog

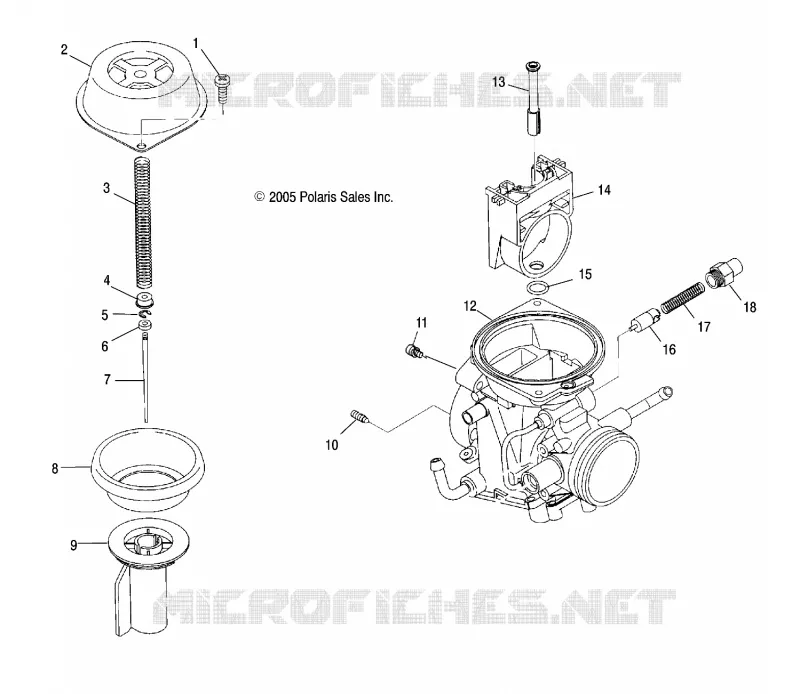

ENGINE, CARBURETOR, UPPER
5
Parts Diagram
Parts Catalog
STEERING POST
by
CRANKCASE
ENGINE, CARBURETOR, UPPER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
SCREW
3130821
$13,64 Unit Price incl. VAT
2
COVER DIAPHRAGM
3130914
$89,24 Unit Price incl. VAT
3
SPRING
3130911
$20,99 Unit Price incl. VAT
4
RING
3130913
$10,49 Unit Price incl. VAT
5
RING #E#
3130908
$11,54 Unit Price incl. VAT
6
Ring
3130915
$10,49 Unit Price incl. VAT
7
Needle Jet
3131358
$83,99 Unit Price incl. VAT
8
DIAPHRAGM
3130910
$125,99 Unit Price incl. VAT
9
VALVE PISTON
3130912
$120,74 Unit Price incl. VAT
10
Jet Air
3130619
$15,74 Unit Price incl. VAT
11
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
12
Asm. Carburetor [Incl. All less 18]
3131568
$955,49 Unit Price incl. VAT
13
Jet Needle
3131562
$125,99 Unit Price incl. VAT
14
BLOCK JET
3130909
$73,49 Unit Price incl. VAT
15
O-Ring
3130916
$8,39 Unit Price incl. VAT
16
Asm. Plunger
3130539
$73,49 Unit Price incl. VAT
17
SPRING
3130538
$10,49 Unit Price incl. VAT
18
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
