1
Engine displacement
500
2
Year
2002
3
Trim
500 SKS
4
Parts Catalog
HOOD
5

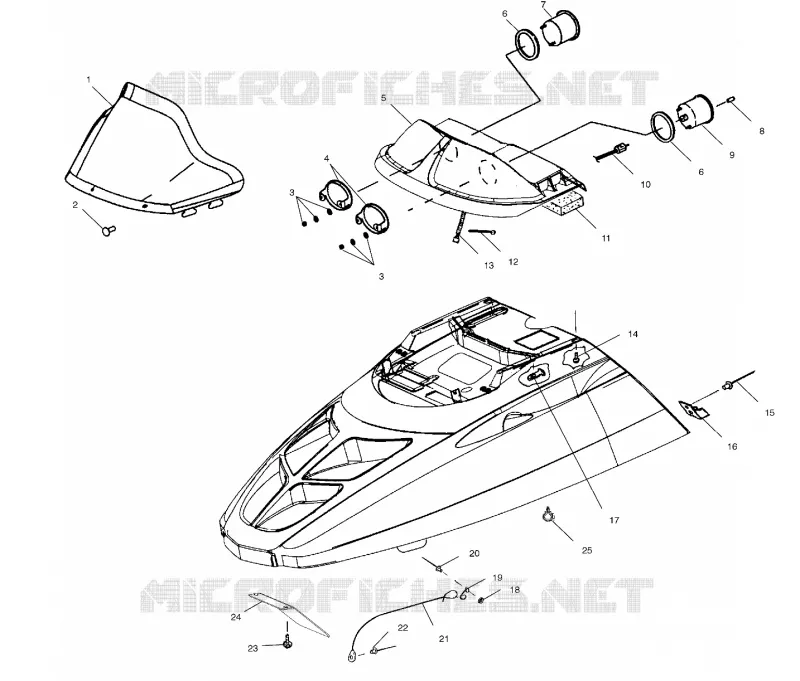

Parts Diagram
Parts Catalog
CONSOLE
by
HOOD FOAM/FOIL
HOOD
1
2
3
3
3
3
3
3
4
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
WINDSHIELD-GEN 2 FLR 14# SMOKE
5433165
Not Available
2
RIVET PLASTI-LOC
7621509
$2,09 Unit Price incl. VAT
3
WASHER SPLIT LOCK
3280156
$1,04 Unit Price incl. VAT
3
NUT
3280158
Not Available
3
WASHER FLAT (10)
3280157
$4,19 Unit Price incl. VAT
4
BRKT TACH/SPEEDO 5#
3280210
$52,49 Unit Price incl. VAT
5
INSTRUMENT HOUSING EURO (See Footnote)
2632012
Not Available
6
CUSHION TACH/SPEEDO RUBBER
3280209
$7,34 Unit Price incl. VAT
7
TACH 6 P WHITE W/FUEL LT
3280329
Not Available
7
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
8
KNOB TRIP ODOMETER LH THD.
3280186
$19,94 Unit Price incl. VAT
9
Asm. Speedometer KPH (Euro)
3280373
$343,34 Unit Price incl. VAT
9
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
10
CABLE SPEEDO 90 IN.
3280341
$115,49 Unit Price incl. VAT
11
FOAM PRE-FILTER
5811625
$40,94 Unit Price incl. VAT
12
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
13
HARNESS H/L LOW LEVEL
2460672
$119,16 Unit Price incl. VAT
14
SCREW .75
7517441
$4,19 Unit Price incl. VAT
15
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
16
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
17
RETAINER WINDSHIELD
5410970
$2,09 Unit Price incl. VAT
18
BURR-RIVET
7555904
$1,56 Unit Price incl. VAT
19
CLIP PIGTAIL
5242893
$10,49 Unit Price incl. VAT
20
RIVET
7661084
$2,09 Unit Price incl. VAT
21
CABLE HOOD HYB.
7080764
$52,49 Unit Price incl. VAT
22
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
23
SCR-PHPHD-10-24X0.5 GR2 ZY3
7512068
$4,19 Unit Price incl. VAT
24
DEFLECTOR-AIR
5243393
Not Available
25
CLIP ROSEBUD GRAY
7080886
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
