1
Engine displacement
400
2
Year
2002
3
Trim
SCRAMBLER 400 4X4 - A02BG38CA
4
Parts Catalog
CRANKSHAFT AND PISTON
5

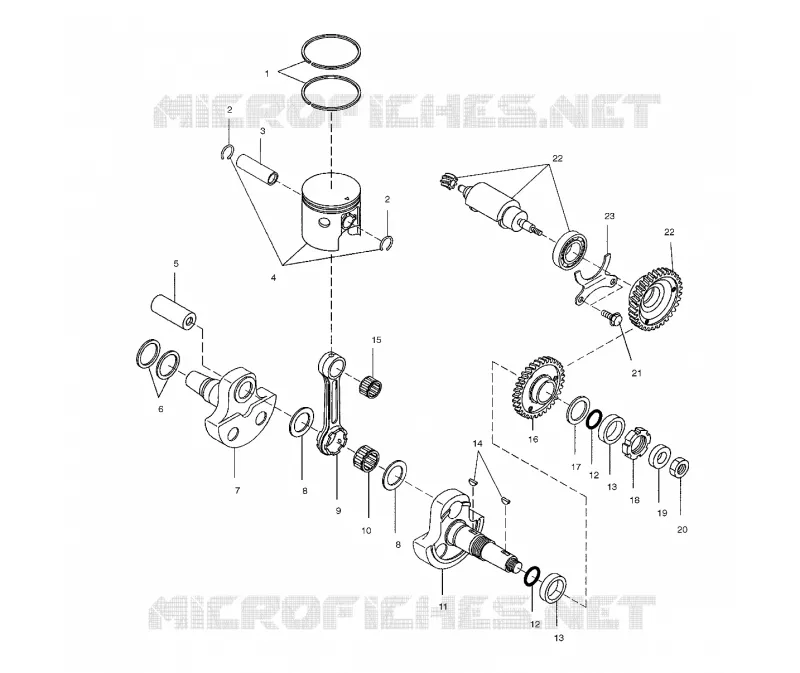

Parts Diagram
Parts Catalog
GEAR SELECTOR
by
CRANKCASE AND CYLINDER
CRANKSHAFT AND PISTON
1
1
1
2
2
3
4
4
4
5
6
6
7
8
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
22
23
1
RING PISTON STD. (Std)
3084737
$40,94 Unit Price incl. VAT
1
RING PISTON (.25MM O/S) * (0.25/.010mm O/S)
3084738
$54,59 Unit Price incl. VAT
1
RING PISTON (.50MM O/S) (0.50/.020mm O/S)
3084739
$40,94 Unit Price incl. VAT
2
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
3
PIN PISTON
3083838
2207579
$356,99 Unit Price incl. VAT
4
PISTON SET (STD) (Std)
3085886
Not Available
4
PISTON SET (0.25 O/S) (0.25#/.010mm O/S)
3085887
$188,99 Unit Price incl. VAT
4
PISTON SET (0.50 O/S) (0.50#/.020mm O/S) (See Footnote)
3085888
$182,69 Unit Price incl. VAT
5
PIN CRANK #1
3084152
$125,99 Unit Price incl. VAT
6
SPACER-1 (0.2mm)
3086765
Not Available
6
SPACER-2 (0.3mm)
3086766
Not Available
7
CRANKSHAFT #2 PTO SIDE
3084777
$192,14 Unit Price incl. VAT
8
SPACER CRANK PIN (Crank Pin)
3084155
Not Available
9
ROD CONNECTING
3084153
Not Available
10
BEARING LARGE END
3084154
Not Available
11
CRANKSHAFT ASM. *
3084776
Not Available
11
CRANKSHAFT #1 MAG SIDE
3084149
$278,24 Unit Price incl. VAT
12
O RING
3084160
Not Available
13
COLLAR
3086763
Not Available
14
KEY Substituted by 3081543
3080130
3081543
$26,24 Unit Price incl. VAT
15
BEARING SMALL END
3084168
$54,59 Unit Price incl. VAT
16
GEAR DRIVE * (Drive)
3084156
Not Available
17
WASHER-GUIDE
3086764
Not Available
18
NUT SLIT
3086762
Not Available
19
Washer
3086767
Not Available
20
LOCKNUT
3083905
Not Available
21
BOLT FLANGE [No Longer Available]
3086769
Not Available
22
BALANCER
3087042
Not Available
23
PLATE
3086768
$41,04 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
