CYLINDER TRAIL/0930761 (4923222322033A) FOR TRAIL - 0930761 FROM 1993

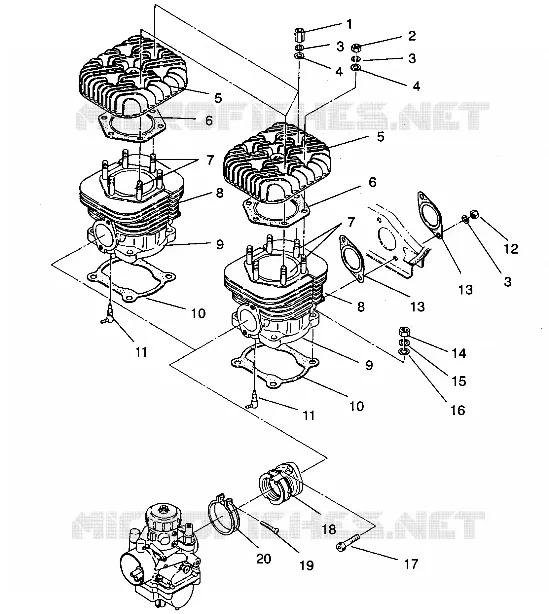

CYLINDER TRAIL/0930761 (4923222322033A)

1

NUT

3083541

Not Available

2

NUT

3080119

$4,19 Unit Price incl. VAT

3

WASHER LOCK (10)

3080530

$6,29 Unit Price incl. VAT

4

WASHER(10)

3080142

Not Available

5

HEAD CYLINDER

3083707

Not Available

6

GASKET HEAD

3083768

Not Available

7

STUD

3080283

$26,24 Unit Price incl. VAT

8

STUD (10)

3080016

$9,23 Unit Price incl. VAT

9

CYLINDER (Incl. 2 3 8)

3083695

Not Available

10

GASKET-CYL

3083081

Not Available

11

VALVE CHECK Substituted by 3086785

3083337

$68,24 Unit Price incl. VAT

12

NUT(10)

3080285

Not Available

13

GASKET EXHAUST

3083770

Not Available

14

NUT Substituted by 3082911

3080047

$3,14 Unit Price incl. VAT

15

WASHER SPRING(10)

3080281

Not Available

16

WASHER(10)

3080356

Not Available

17

BOLT SOCKET HEAD

3081330

$7,34 Unit Price incl. VAT

18

MOUNT CARBURETOR Substituted by 3085044

3083306

Not Available

19

SCREW Substituted by 3081497

3083086

$4,19 Unit Price incl. VAT

20

ASM. BAND ADAPTOR [INCL. 9]

3083166

$36,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
