1
Engine displacement
550
2
Year
2016
3
Trim
550 INDY VOYAGEUR 155
4
Parts Catalog

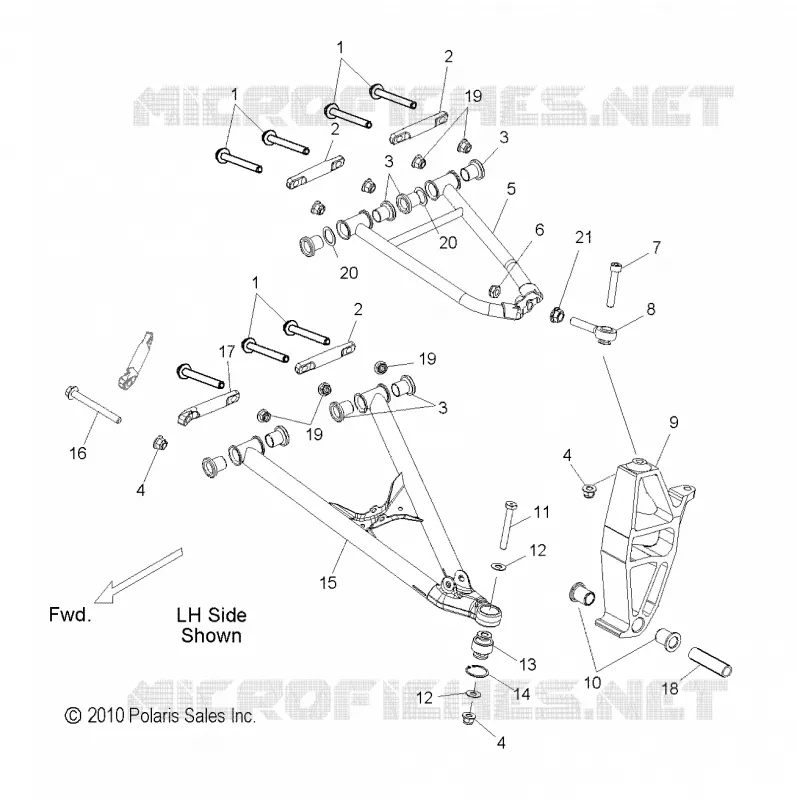

FRONT WISHBONES
5
Parts Diagram
Parts Catalog
LOWER STEERING
by
REAR SUSPENSION AND TRACK
FRONT WISHBONES
1
1
1
2
2
2
3
3
3
4
4
4
5
5
6
7
8
9
9
10
11
12
12
13
14
15
15
16
17
18
19
19
19
20
20
21
1
STUD
7519204
$36,74 Unit Price incl. VAT
2
SHAFT PIVOT
5137700
$68,24 Unit Price incl. VAT
3
BUSHING PIVOT
5437539
$4,19 Unit Price incl. VAT
4
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
5
KIT UPPER CONTROL ARM LH BLACK [INCL. 2-4 6 8 21]
2204930067
$230,99 Unit Price incl. VAT
5
KIT UPPER CONTROL ARM RH BLACK [INCL. 2-4 6 8 21]
2204931067
$246,74 Unit Price incl. VAT
6
NUT-HEX-M12X1.5 8 ZOD NYL
7547464
$6,29 Unit Price incl. VAT
7
SCR-SH-M10X1.5X45 12.9 ZFK
7519246
$7,34 Unit Price incl. VAT
8
ROD END-M12X2.812 30�
7061178
$89,24 Unit Price incl. VAT
9
ASM. SPINDLE RH [INCL. 13]
1824145
$351,74 Unit Price incl. VAT
9
ASM. SPINDLE LH [INCL. 13]
1824144
$351,74 Unit Price incl. VAT
10
BUSHING SKI PIVOT
5438460
$27,29 Unit Price incl. VAT
11
SCREW M10x75 HCS
7519015
$10,49 Unit Price incl. VAT
12
WASHER
7555806
$1,56 Unit Price incl. VAT
13
KIT SPHERICAL BEARING LOWER
2204229
$54,59 Unit Price incl. VAT
14
RING RETAINING
7710539
$4,19 Unit Price incl. VAT
15
KIT LOWER CONTROL ARM RH BLACK [INCL. 2-4 13 14 17]
2204423067
$451,49 Unit Price incl. VAT
15
KIT LOWER CONTROL ARM LH BLACK [INCL. 2-4 13 14 17]
2204422067
Not Available
16
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$9,44 Unit Price incl. VAT
17
SHAFT PIVOT LOWER CONTROL ARM FRONT
5137701
$73,49 Unit Price incl. VAT
18
BUSHING
5136910
$13,64 Unit Price incl. VAT
19
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
20
WASHER SPRING
7571605
$11,54 Unit Price incl. VAT
21
NUT-HXFL M12X1.5 ZOD
7547490
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
