1
Engine displacement
0
2
Year
1998
3
Trim
lite-deluxe-0983431
4
Parts Catalog
OIL TANK AIR BOX LITE 0983433 AND LITE DELUXE 0983431 (4941864186C001)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM
by
TOOL KIT LITE 0983433 AND LITE DELUXE 0983431 (4941864186C002)

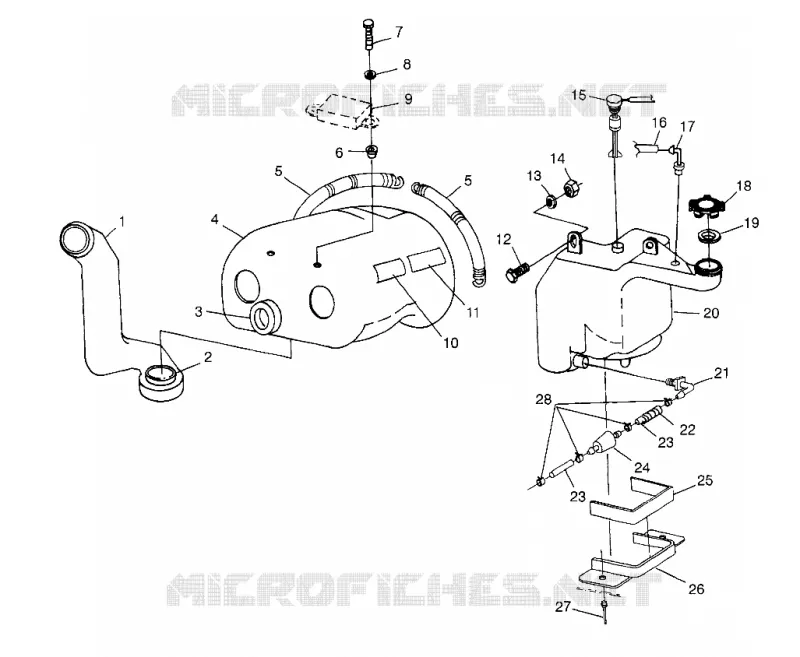

OIL TANK AIR BOX LITE 0983433 AND LITE DELUXE 0983431 (4941864186C001)
1
DUCT INTAKE
5431354
Not Available
2
SEAL
5810462
$7,97 Unit Price incl. VAT
3
BOOT-SILENCER
5410311
Not Available
4
SILENCER INTAKE DRILLED
5431521
Not Available
5
SPRING HOLDDOWN
7041244
Not Available
6
NUT WELL
7541923
$10,49 Unit Price incl. VAT
7
SCREW(10)
7512222
$4,19 Unit Price incl. VAT
8
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
DECAL INTAKE
7075348
Not Available
11
DECAL GREASING
7073426
Not Available
12
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
13
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
14
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
15
SENSOR OIL
4110152
Not Available
16
SPRING PROTECT.VENTHOSE
7041605
Not Available
16
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
17
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
18
CAP OIL TANK
5430779
$31,49 Unit Price incl. VAT
19
GASKET OIL CAP
5810141
$4,19 Unit Price incl. VAT
20
TANK OIL
5431225
Not Available
20
TANK OIL DRILLED
5431488
$185,84 Unit Price incl. VAT
21
FITTING OUTLET (StarLite GT)
7052056
$11,01 Unit Price incl. VAT
22
TUBE CONVOLUTED SVC. (Lite Deluxe)
5521278
Not Available
23
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
24
FILTER
2530009
$12,59 Unit Price incl. VAT
25
PAD OIL TANK
5810522
Not Available
26
BRKT LOW.OILTANK
5222673
Not Available
27
RIVET-CHERRY Q-3/16X.325-Z
7621453
Not Available
28
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
