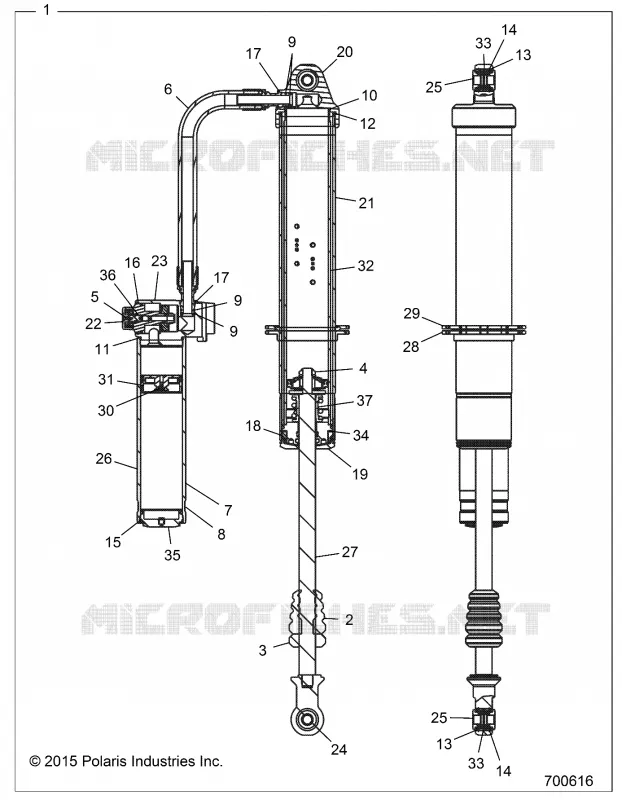

REAR SUSPENSION SHOCK
5
Parts Diagram
Parts Catalog
STEERING
by
FRONT STABILIZER BAR
REAR SUSPENSION SHOCK
1
1
1
2
3
4
5
6
7
8
9
9
9
10
11
12
13
13
14
14
15
16
17
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
33
34
35
36
37
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
SHOCK-REAR INTBYPASS MP
7044424
$2 656,49 Unit Price incl. VAT
1
Plate: Back-Up [0.875 OD X 0.503 ID X 0.100 TH]
1500841
$20,99 Unit Price incl. VAT
1
PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH Ø 0.620 SHAFT]
1500470
$20,99 Unit Price incl. VAT
2
Bumper: B/O [Ø 0.620 Shaft 2.350 TLG] MCU
1500577
1500844
$52,49 Unit Price incl. VAT
3
BUMPER BLACK
1500866
$62,99 Unit Price incl. VAT
4
Fastener Standard: Nut Lock [1/2-20 X 0.313 TLG]
1500472
$41,99 Unit Price incl. VAT
5
SCREW
1501011
$25,19 Unit Price incl. VAT
6
Hose: (T) -10 .625# ID [30.00 TLG] Quick Connec
1501066
$230,99 Unit Price incl. VAT
7
Decal: Reservoir [7.63 X 7.50] Internal Bypass
1501067
$115,49 Unit Price incl. VAT
8
Decal: Band [.45 X 7.63] Performance Series
1501046
$13,64 Unit Price incl. VAT
9
Seals: O-Ring [(-016) .070 C.S. X 0.614 ID] Standard N-70 Static
1501068
$14,69 Unit Price incl. VAT
10
SEALS:O-RING [(-033) .070 C.S. X 2.364 ID] STANDARD N-70 STATIC
1501069
$14,69 Unit Price incl. VAT
11
SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD N-70 STATIC
1501048
$14,69 Unit Price incl. VAT
12
SEALS:O-RING [(-150) .103 C.S. X 2.862 ID] STANDARD N-70 STATIC
1501070
$14,69 Unit Price incl. VAT
13
SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD N-70 STATIC
1501050
$14,16 Unit Price incl. VAT
14
RETAINING RING: SNAP [-118] STEEL GOLD ZINC: PH 15-7 MO BASIC INTERNAL
1501051
$27,29 Unit Price incl. VAT
15
WIRE RETAINING RING
1500960
$5,99 Unit Price incl. VAT
16
RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS
1501052
$26,24 Unit Price incl. VAT
17
Retaining Ring: Wire [Ø 2.750 ID X Ø.063 Wire] 302 SS
1501085
$26,24 Unit Price incl. VAT
18
Retaining Ring: Wire [Ø 0.787 ID X Ø.063 Wire] 302 SS
1501086
$52,49 Unit Price incl. VAT
19
Bearing Cap: [Ø 2.750 Bore .Ø 0.875 Shaft] No Scraper Press-in Clear
1501071
$73,49 Unit Price incl. VAT
20
Body Cap: (T) Remote Reservoir Internal Bypass Forging [Ø 3.000 Body 3.000-2
1501072
Not Available
21
BODY OUTER 17.8 TLG
1501173
$330,74 Unit Price incl. VAT
22
Damping Adjust Part: Low Speed Knob [Ø 1.200 OD .530 TLG] Nylon Black213-01-355
1501057
$19,94 Unit Price incl. VAT
23
Damping Adjust Part: CD Housing [Ø 2.250 Bore] Remote Reservoir
1501074
Not Available
24
EYELET
1501174
$178,49 Unit Price incl. VAT
25
EYELET PARTS: (T) REDUCER [0.560 TLG .476 THRU HOLE] COM 10 SPHERICAL SLIP FI
1501076
$62,99 Unit Price incl. VAT
26
RESEVOIR 10.0 TLG BLK
1501175
$519,74 Unit Price incl. VAT
27
SHAFT .875 X 17.1
1501176
$309,74 Unit Price incl. VAT
28
Spring Hardware: Preload Ring [3.250 OD X 0.515 TLG 2.080-14 Stub Acme ID] Low
1501079
Not Available
29
Spring Hardware: Preload Ring Back Up [4.50 OD X .280 TLG 3.0-14 Stub Acme] Blk
1501080
Not Available
30
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE COMPLETE
1500161
$68,24 Unit Price incl. VAT
31
PISTON ASSEMBLY: FLOATING [Ø2.25 BORE] W/ STD. TEMP O-RING MAX VOL. BLEED AND
1501060
$120,74 Unit Price incl. VAT
32
INTERNAL BYPASS 2PAD
1501177
$179,54 Unit Price incl. VAT
33
BEARING: SPHERICAL [Ø 0.625 BORE X Ø 1.1875 OD] COM 10 BK LINER CCVI
1501044
$101,84 Unit Price incl. VAT
34
Asm. Seal Head
1501094
$204,74 Unit Price incl. VAT
35
RESERVOIR END CAP ASSEMBLY: [Ø 2.250 BORE .940 TLG] PELLET FILL ALUMINUM BLAC
1501063
$188,99 Unit Price incl. VAT
36
Adjuster Damping LCS
1501180
Not Available
37
Spring Hardware Assembly: Negative Spring Guide Ø 0.875 Shaft [300 lbs/in]
1501083
$89,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
