1
Engine displacement
500
2
Year
1992
3
Trim
500 SKS - 0920574
4
Parts Catalog

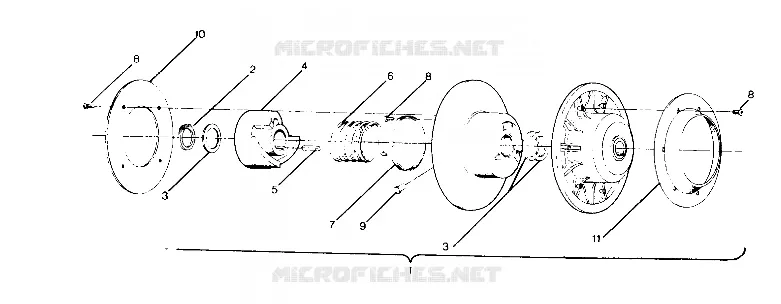

DRIVEN CLUTCH 500 SP/500 SKS (4921262126032A)
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH 500 SP/500 SKS (4921262126031A)
by
CRANKCASE 500 SP/500 SKS (4921262126039A)
DRIVEN CLUTCH 500 SP/500 SKS (4921262126032A)
1
CLUTCH-DRIVEN-36DEG. Substituted by 1322151
1322105
Not Available
2
RING RETAINING(10)
7714804
$17,84 Unit Price incl. VAT
3
Washer .030
7556804
$1,56 Unit Price incl. VAT
4
HELIX 36 DEG.DRIVEN Substituted by 5130895
5630185
Not Available
5
KEY SQUARE(10)
7721103
$12,59 Unit Price incl. VAT
6
SPRING CLUTCH (RED)
7041198
$104,99 Unit Price incl. VAT
7
BUSHING D.U.
3569803
Not Available
8
SCREW
7511953
Not Available
9
BUTTON-RAMP (10)
5430466
$12,59 Unit Price incl. VAT
10
PLATE (600 600 SE)
5210749
$39,78 Unit Price incl. VAT
11
CAP DRIVEN (600 600 SE)
5230101
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
