1
Engine displacement
900
2
Year
2023
3
Trim
PATRIOT 9R RMK KHAOS 146 SLASH
4
Parts Catalog
CHASSIS, FOOTRESTS, AND RUNNING BOARDS
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
by
CHASSIS, TIE ROD BOOT ASM.

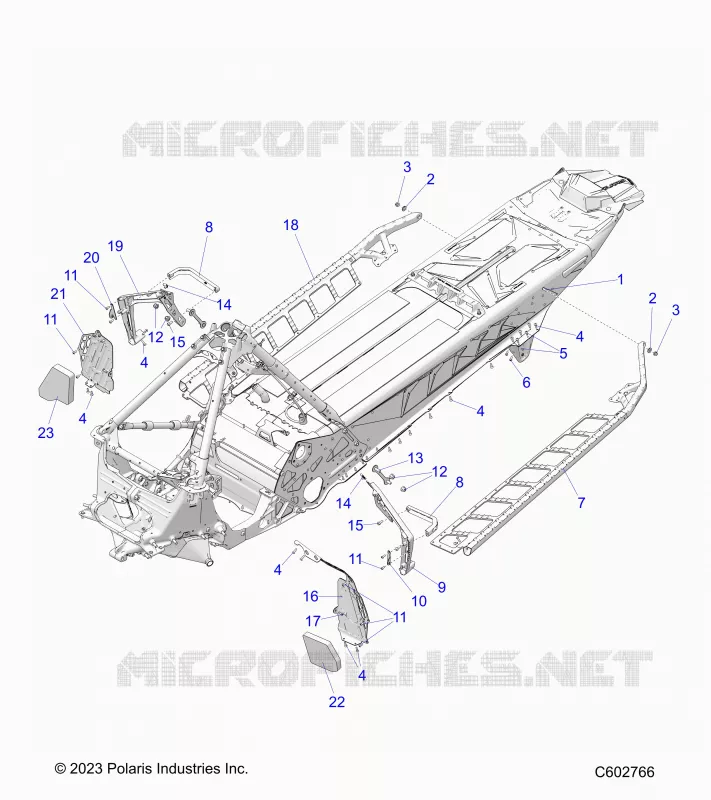

CHASSIS, FOOTRESTS, AND RUNNING BOARDS
1
2
2
3
3
4
4
4
4
4
4
5
6
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
9
9
9
9
9
9
10
11
11
11
11
12
12
13
14
14
15
15
16
17
18
18
18
18
18
18
19
19
19
19
19
19
20
21
22
23
1
SCR-RHCARM6X1.0X20 8.8 ZOD
7518994
$6,29 Unit Price incl. VAT
2
WSHR-6.4X18.0X1.6 ZPB
7556064
$9,44 Unit Price incl. VAT
3
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
4
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
5
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$2,09 Unit Price incl. VAT
6
SCR-M5X.8X10 TX BTN PIN-IN HD
7518457
$4,19 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH LIFTED LIME LIFTED LIME COLOR OPTION
1026039801
$488,24 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH IRED RED COLOR OPTION
1026039293
$488,24 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH GLBLK BLACK COLOR OPTION
1026039067
$488,24 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH ORG ORANGE COLOR OPTION
1026039647
$488,24 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH NATURAL COLOR OPTION
1026039
$440,99 Unit Price incl. VAT
7
ASM-RUNNINGBOARD LH VELOCITY BLUE VELOCITY BLUE COLOR OPTION
1026039689
$456,74 Unit Price incl. VAT
8
CLIP-TOE MACH ORANGE ORANGE COLOR OPTION
5143789647
$99,74 Unit Price incl. VAT
8
CLIP-TOE MACH VELOCITY BLUE VELOCITY BLUE COLOR OPTION
5143789689
$94,49 Unit Price incl. VAT
8
CLIP-TOE MACH RED RED COLOR OPTION
5143789293
$99,74 Unit Price incl. VAT
8
CLIP-TOE MACH BLACK BLACK COLOR OPTION
5143789067
$99,74 Unit Price incl. VAT
8
CLIP-TOE MACH NATURAL COLOR OPTION
5143789
$99,74 Unit Price incl. VAT
8
CLIP-TOE MACH LFTLM LIFTED LIME COLOR OPTION
5143789801
$99,74 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH LIFTED LIME LIFTED LIME COLOR OPTION
5143787801
$173,24 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH GBLK BLACK COLOR OPTION
5143787067
$178,49 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH ORGB ORANGE COLOR OPTION
5143787647
$178,49 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH NATURAL COLOR OPTION
5143787
$99,74 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH VELBLUE VELOCITY BLUE COLOR OPTION
5143787689
$167,99 Unit Price incl. VAT
9
SUPPORT-FOOTREST MACH LH RED RED COLOR OPTION
5143787293
$178,49 Unit Price incl. VAT
10
ASM-FENDER MOUNT LH
1027422
$89,24 Unit Price incl. VAT
11
SCR-M5X0.8X12 10.9 TX/BH ZPC
7520967
$7,34 Unit Price incl. VAT
12
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
13
ASM. STUD PLATE
1019337
$19,94 Unit Price incl. VAT
14
CLIP-#U# M6.0X1.0
7547366
$9,44 Unit Price incl. VAT
15
SCR-HXFL M6X1.0X16 8.8ZY3DL204
7519329
$7,34 Unit Price incl. VAT
16
ASM-TOE STOP LH
1029128
$120,74 Unit Price incl. VAT
17
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
18
ASM-RUNNINGBOARD RH ORG ORANGE COLOR OPTION
1026040647
$488,24 Unit Price incl. VAT
18
ASM-RUNNINGBOARD RH NATURAL COLOR OPTION
1026040
$440,99 Unit Price incl. VAT
18
ASM-RUNNINGBOARD RH LIFTED LIME LIFTED LIME COLOR OPTION
1026040801
$488,24 Unit Price incl. VAT
18
ASM-RUNNINGBOARD RH IRED RED COLOR OPTION
1026040293
$488,24 Unit Price incl. VAT
18
ASM-RUNNINGBOARD RH GLBLK BLACK COLOR OPTION
1026040067
$456,74 Unit Price incl. VAT
18
ASM-RUNNINGBOARD RH VELOCITY BLUE VELOCITY BLUE COLOR OPTION
1026040689
$456,74 Unit Price incl. VAT
19
SUPPORT-FOOTREST MACH RH ORGB ORANGE COLOR OPTION
5143788647
$178,49 Unit Price incl. VAT
19
SUPPORT-FOOTREST MACH RH VELBLUE VELOCITY BLUE COLOR OPTION
5143788689
$167,99 Unit Price incl. VAT
19
SUPPORT-FOOTREST MACH RH RED
5143788293
$178,49 Unit Price incl. VAT
19
SUPPORT-FOOTREST MACH RH LIFTED LIME LIFTED LIME COLOR OPTION
5143788801
$173,24 Unit Price incl. VAT
19
SUPPORT-FOOTREST MACH RH GBLK BLACK COLOR OPTION
5143788067
$178,49 Unit Price incl. VAT
19
SUPPORT-FOOTREST MACH RH NATURAL COLOR OPTION
5143788
$99,74 Unit Price incl. VAT
20
ASM-FENDER MOUNT RH
1027423
$89,24 Unit Price incl. VAT
21
ASM-TOE STOP RH
1026559
$120,74 Unit Price incl. VAT
22
FOAM-TOE STOP LH
5815240
$10,49 Unit Price incl. VAT
23
FOAM-TOE STOP RH
5815242
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
