Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
BRAKES, REAR CALIPER
by
DRIVE TRAIN, FRONT GEARCASE

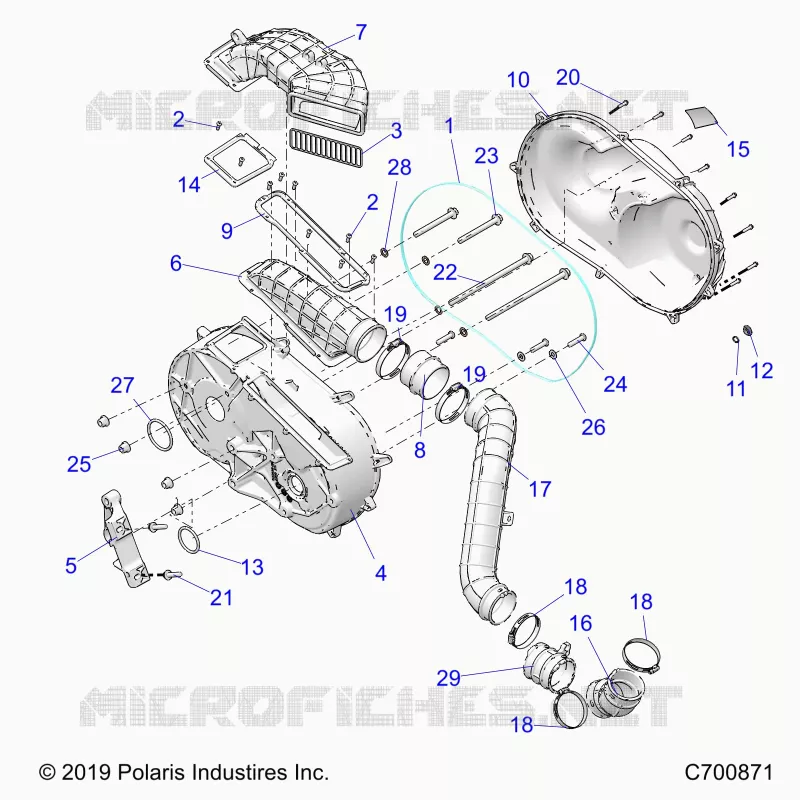

DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
18
18
19
19
20
21
22
23
24
25
26
27
28
29
1
O-RING-0.489X0.629X0.070 EPDM
5415647
$3,14 Unit Price incl. VAT
2
PLUG-DRAIN 9/16-18 PP
5454915
$10,49 Unit Price incl. VAT
3
O-RING-2.25X2.625X.21 NBR [TO 11/23/2020]
5417193
$15,74 Unit Price incl. VAT
4
O-RING-2.25X2.625X.21 NBR BARB
5417662
$15,74 Unit Price incl. VAT
5
MOUNT-OUTLET DUCT
5634514
$52,49 Unit Price incl. VAT
6
DECAL-BELT WARNING/CHECK
7177469
Not Available
7
HOSE-JOINT
5416135
$83,99 Unit Price incl. VAT
8
HOSE-CLUTCH INLET TO TUNNEL
5416170
$115,49 Unit Price incl. VAT
9
CLAMP-HOSE SLOTTED 75-90 DIA
7082314
$19,94 Unit Price incl. VAT
10
CLAMP-HOSE SLOTTED 92-100 DIA
7081969
$19,94 Unit Price incl. VAT
10
SCR-HXFLG M6X1.0X25 10.9
7519754
$7,34 Unit Price incl. VAT
11
SCR-HXFL-M10X1.5X1.5 8.8 ZY3
7518531
$9,44 Unit Price incl. VAT
12
SCR-TXBH-M12X1.75X110 8.8 SPC
7520945
$14,69 Unit Price incl. VAT
13
SCR-TXBH-M12X1.75X245 8.8 SPC
7520946
$25,19 Unit Price incl. VAT
14
SCR-TXBH-M10X1.5X45 8.8ZOD P30
7520323
$10,49 Unit Price incl. VAT
15
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
$9,44 Unit Price incl. VAT
16
WSHR-10.5X22.0X1.6 SPC
7556155
$9,44 Unit Price incl. VAT
17
O-RING-0.489X0.629X0.070 EPDM
5416606
$6,81 Unit Price incl. VAT
18
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
19
SEAL-OUTER CLUTCH COVER [TO 1/6/2021]
5416207
$68,24 Unit Price incl. VAT
20
SEAL-OUTER CLUTCH COVER
5417715
$40,94 Unit Price incl. VAT
21
BOLT-M6X1.0X20 PH/TX-OLIVE D
7518616
$2,09 Unit Price incl. VAT
22
BRKT-SCREEN BELT
5264258
$52,49 Unit Price incl. VAT
23
COVER-CLUTCH INNER MACH [INCL. 5-9][TO 11/23/2020]
5143356
5144005
$362,24 Unit Price incl. VAT
24
COVER-CLUTCH INNER MACH [INCL. 5-9]
5144005
$362,24 Unit Price incl. VAT
25
BRKT-TRANSJOINT MAG MACH
5144809
$89,24 Unit Price incl. VAT
26
DUCT-CLUTCH INLET
5416355
5418049
$167,99 Unit Price incl. VAT
27
DUCT-CLUTCH OUTLET
5416141
5418050
$167,99 Unit Price incl. VAT
28
BOOT-HOSE ADAPTER
5454194
$47,24 Unit Price incl. VAT
29
PLATE-INLET CLUTCH DUCT SEAL
5634221
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
