1
Engine displacement
325
2
Year
2015
3
Trim
RANGER ETX
4
Parts Catalog
ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT
5
Parts Diagram
Parts Catalog
CRANKCASE AND OIL SUMP
by
CYLINDER

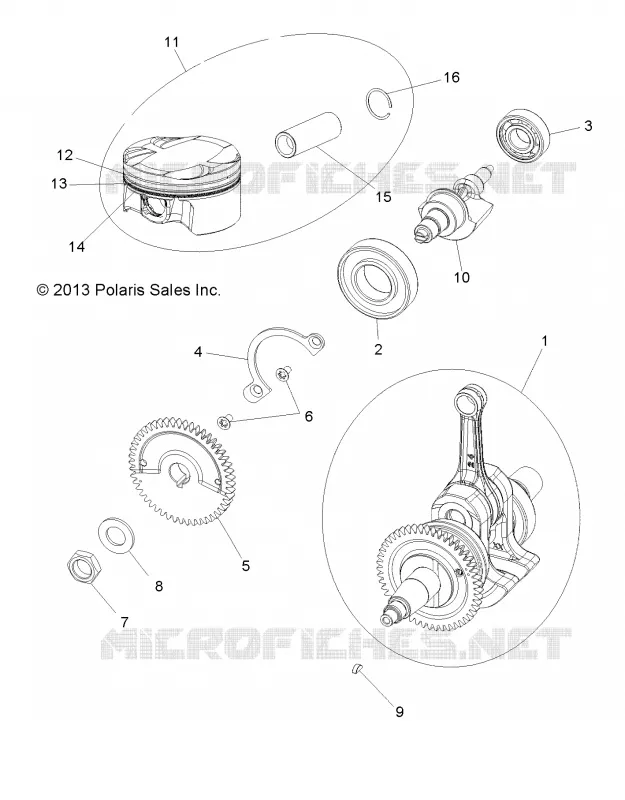

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT
1
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
1
ASM. CRANKSHAFT W/GEAR [INCL. CRANK ASM. AND GEAR]
1204878
$1 454,24 Unit Price incl. VAT
1
BEARING BALL [PTO END]
3585503
$54,59 Unit Price incl. VAT
2
BEARING BALL
3514361
3585503
$54,59 Unit Price incl. VAT
3
BEARING BALL
3514749
$54,59 Unit Price incl. VAT
4
PLATE BEARING RETAINER
5137851
Not Available
5
GEAR DRIVEN BALANCER
6230548
1204878
$1 454,24 Unit Price incl. VAT
6
SCREW-M6X12 TORX DR FH
7517598
$19,94 Unit Price incl. VAT
7
NUT-HEX M18X1.5 4 JAM RH
7547488
$13,64 Unit Price incl. VAT
8
WASHER
7556568
$7,34 Unit Price incl. VAT
9
KEY-WOODRUFF 4X5
7721122
$13,64 Unit Price incl. VAT
10
SHAFT BALANCER
5138050
$325,49 Unit Price incl. VAT
10
ASM. BALANCER SHAFT [INCL. PIN SHAFT]
1204606
$325,49 Unit Price incl. VAT
10
PIN BALANCER SHAFT
7662032
$325,49 Unit Price incl. VAT
11
ASM. PISTON [INCL. RINGS PIN CLIPS]
3022533
$242,54 Unit Price incl. VAT
12
RING PISTON COMPRESSION TOP
3022386
$40,94 Unit Price incl. VAT
13
RING PISTON COMPRESSION SECOND
3022387
$54,59 Unit Price incl. VAT
14
RING PISTON OIL SCRAPER
3022388
$114,44 Unit Price incl. VAT
15
PIN PISTON
3022512
$128,09 Unit Price incl. VAT
16
CIRCLIP
7710673
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
