1
Engine displacement
900
2
Year
2015
3
Trim
ranger-xp-900-eu
4
Parts Catalog

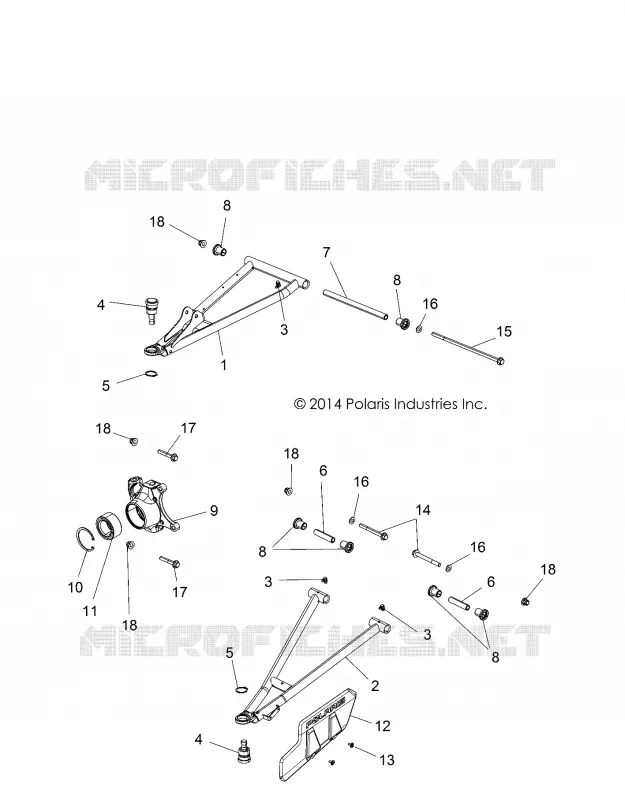

FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUALS
by
FRONT SUSPENSION SHOCK
FRONT SUSPENSION
1
1
2
2
3
3
3
4
4
5
5
6
6
7
8
8
8
8
9
9
10
9
12
12
13
14
15
16
16
16
17
17
18
18
18
18
18
1
2
2
3
4
5
6
7
8
9
9
9
9
10
9
12
13
14
15
16
17
1
A-ARM FRONT UPPER RH MATTE BLACK
1020888458
$278,24 Unit Price incl. VAT
1
A-ARM FRONT UPPER LH MATTE BLACK
1020887458
$278,24 Unit Price incl. VAT
2
A-ARM FRONT LOWER LH MATTE BLACK
1019668458
$225,74 Unit Price incl. VAT
2
A-ARM FRONT LOWER RH MATTE BLACK
1019669458
$225,74 Unit Price incl. VAT
3
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
4
JOINT BALL
7081991
7082507
$89,24 Unit Price incl. VAT
5
RING-RETAINER EXTERNAL 1.188
7710533
$4,19 Unit Price incl. VAT
6
SHAFT-PIVOT 70.99MM 15.88OD
5138797
$16,79 Unit Price incl. VAT
7
SHAFT-PIVOT 250.28MM 15.88OD
5138791
$52,49 Unit Price incl. VAT
8
BUSHING-STANDARD ORV
5439874
$4,19 Unit Price incl. VAT
9
CARRIER WHEEL BEARING LH
5139323
5139976
$188,99 Unit Price incl. VAT
10
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
11
BEARING-BALL SEALED 44X72X33.1
3514699
$73,49 Unit Price incl. VAT
12
SHIELD-CV FRONT RH BLK
5437545070
$47,24 Unit Price incl. VAT
12
SHIELD-CV FRONT LH BLK
5437544070
$47,24 Unit Price incl. VAT
13
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
14
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
$17,84 Unit Price incl. VAT
15
SCR-HXFL-M10X1.25X275 10.9 ZOD
7519087
$26,24 Unit Price incl. VAT
16
WASHER
7556153
$3,66 Unit Price incl. VAT
17
SCR-HXFL-M10X1.25X60 10.9 ZOD
7519306
$10,49 Unit Price incl. VAT
18
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
