1
Engine displacement
500
2
Year
2010
3
Trim
SPORTSMAN 500 EFI TRACTOR - A10MN50ET
4
Parts Catalog
FRONT SUSPENSION STRUT
5

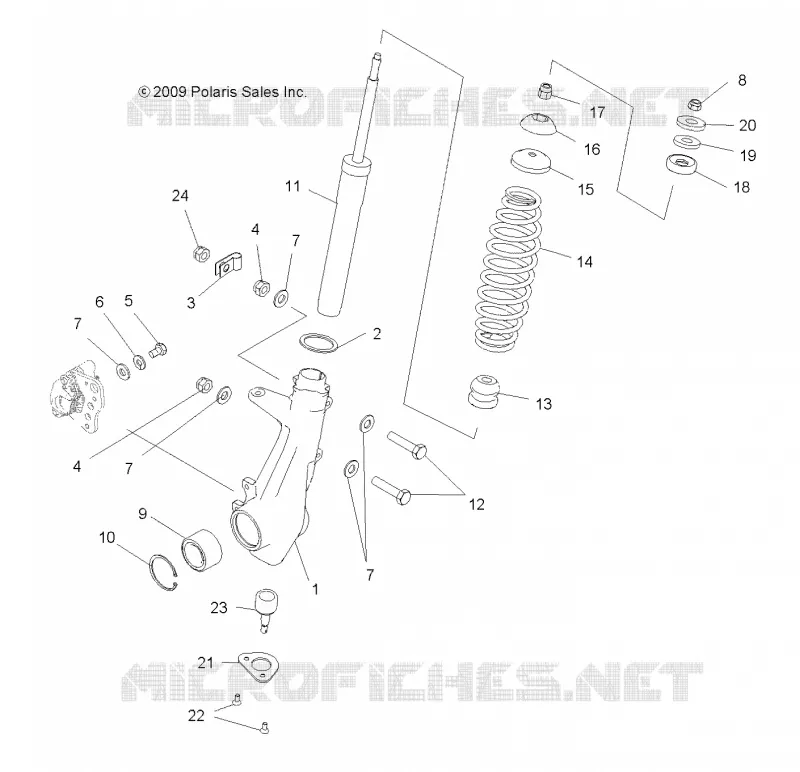

Parts Diagram
Parts Catalog
SUSPENSION, A-ARM AND STRUT MOUNTING
by
REAR SUSPENSION
FRONT SUSPENSION STRUT
1
1
2
3
4
4
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Asm. Hubstrut RH [INCL. 5 6 17-19]
1822826
$572,24 Unit Price incl. VAT
1
Asm. Hubstrut LH [INCL. 5 6 17-19]
1822825
$572,24 Unit Price incl. VAT
2
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
3
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
4
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
5
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
6
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
7
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
8
NUT-1/2-20 NYLOK THIN HT-Y
7547104
$2,09 Unit Price incl. VAT
9
BEARING-WHEEL 35X64X37MM
3514634
$73,49 Unit Price incl. VAT
10
RING-RETAINING 2.500 INTERNAL
7710507
$4,19 Unit Price incl. VAT
11
STRUT-FRONT 18X30MM 184.7MM LT
7041762
$230,99 Unit Price incl. VAT
12
BOLT(10)
7512312
$2,09 Unit Price incl. VAT
13
BUMPER-MCU 17.8MM ID
5412665
$12,59 Unit Price incl. VAT
14
SPRING COMPRESSION BLACK
7043247067
$173,24 Unit Price incl. VAT
15
RETAINER-SPRING STRUT
5243364
$36,74 Unit Price incl. VAT
16
PIVOT-BALL BOTTOM DELRIN
5432871
$19,94 Unit Price incl. VAT
17
SPACER-1/2-20 STRUT
5132062
$36,74 Unit Price incl. VAT
18
PIVOT-BALL TOP DELRIN
5432872
$19,94 Unit Price incl. VAT
19
SPACER-RUBBER
5810291
$7,34 Unit Price incl. VAT
20
WSHR-.500X1.50-12GA-Y
7555749
$2,09 Unit Price incl. VAT
21
BRACKET-BALL JOINT
5211121
$62,99 Unit Price incl. VAT
22
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$2,09 Unit Price incl. VAT
23
BALL-JOINT GREASELESS STRUT
7061158
7061306
$52,49 Unit Price incl. VAT
24
NUT
7542344
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
