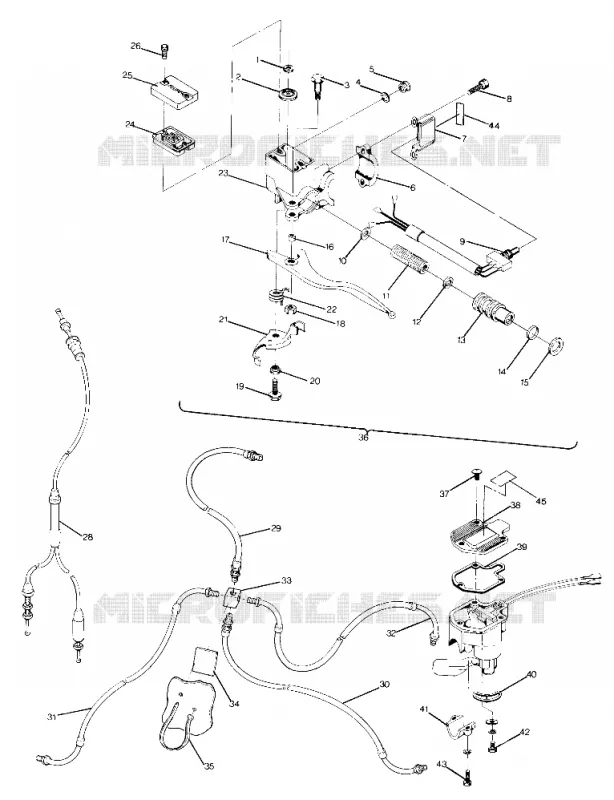

Control Assembly (4917711771013A) FOR TRAIL BOSS 250

ENGINE AND MUFFLER MOUNTING (4917711771005A)

FRONT WHEEL ASSEMBLY (4917711771015A)

WASHER BAFFLE(10)

1930662

Not Available

BAFFLE MASTER CYL.

1930673

Not Available

BOLT BRAKE LEVER(10)

7512287

Not Available

SEAL SIGHT GLASS

1930660

Not Available

GLASS SIGHT Substituted by 2200345

1930659

Not Available

CLAMP MASTER CYL.

5630342

Not Available

BRKT O#RIDE SW.

5222475

Not Available

SCREW SOCKET HEAD

7512290

$9,44 Unit Price incl. VAT

SW O#RIDE REV.LIMIT.

4110083

$57,63 Unit Price incl. VAT

WASHER(10)

7555708

$7,34 Unit Price incl. VAT

SPRING COMPRESSION (10)

7041203

$52,49 Unit Price incl. VAT

U PACKING SEAL

5410164

$17,84 Unit Price incl. VAT

PISTON MASTER CYL.

5020520

Not Available

O RING-.549X.755X1.03

5410163

$3,14 Unit Price incl. VAT

SEAL OIL

3610022

Not Available

BUSHING BRAKE LEVER

5332931

Not Available

LEVER BRAKE

5630370

Not Available

NUT(10)

7542124

7542122

$2,09 Unit Price incl. VAT

SCREW

7511866

$9,44 Unit Price incl. VAT

BUSHING PK.BRAKE LEVER

5020545

Not Available

LEVER PARK BRAKE(ATV) Substituted by 2050060

2050043

Not Available

SPRING PK.BRAKE

7041229

$62,99 Unit Price incl. VAT

KIT MASTER CYL.HSG. Substituted by 5130772

2200343

Not Available

GASKET MASTER CYL.

5410527

$13,64 Unit Price incl. VAT

COVER MASTER CYL.

5630338

Not Available

SCREW(10)

7512016

Not Available

CABLE THROTTLE CONTROL Substituted by 7080531

7080375

Not Available

LINE BRAKE UP. W/FTGS. Substituted by 1930748

1930633

1930748

$167,99 Unit Price incl. VAT

LINE BRAKE LH.FRT W/FTGS. Substituted by 1930752

1930631

$167,99 Unit Price incl. VAT

LINE BRAKE RH FRT. Substituted by 1930753

1930634

$167,99 Unit Price incl. VAT

LINE BRAKE R. W/FTGS.

1930632

Not Available

FITTING TEE

7052044

Not Available

PAD GAS TANK [No Longer Available]

5850040

Not Available

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

MASTER CYL. ASM. Substituted by 2050046 (Incl. 1-5 10-23)

1930647

2050073

$456,74 Unit Price incl. VAT

SCREW BUTTON HEAD

2010079

Not Available

CAP

2010080

Not Available

PACKING THROTTLE

2010081

Not Available

PLATE

2010075

Not Available

HOLDER

2010078

$23,09 Unit Price incl. VAT

BOLT HEX.

2010076

Not Available

SCREW SEMS(10)

2010077

Not Available

DECAL O#RIDE SWITCH Substituted by 7076274

7072390

Not Available

DECAL THROTTLE(ENG.) [No Longer Available]

7072724

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
