1
Engine displacement
1000
2
Year
2017
3
Trim
RANGER CREW XP 1000 6 SEAT EPS NB MD
4
Parts Catalog
EXHAUST
5

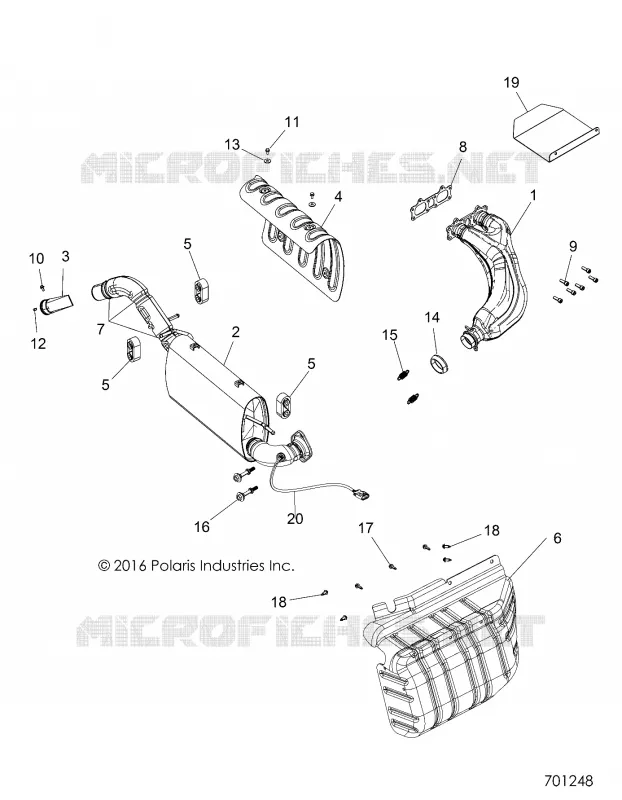

Parts Diagram
Parts Catalog
ENGINE, ENGINE MOUNTING
by
ENGINE, INTAKE AND THROTTLE BODY
EXHAUST
14
15
16
17
18
18
19
20
1
ASM. HEADPIPE [INCL. HEADPIPE AND ALL SHIELDS AND CLAMPS]
1262693
$666,74 Unit Price incl. VAT
1
CLAMP-HEAT SHIELD EXHAUST
7081156
$13,64 Unit Price incl. VAT
1
SHIELD BOTTOM HEADPIPE
1262351
$80,84 Unit Price incl. VAT
1
SHIELD TOP HEADPIPE
1262350
$99,74 Unit Price incl. VAT
2
ASM-SILENCER CAT/02 18MM RGR [INCL. 3-5 10-13 ALL SHIELDS AND CLAMPS]
1263009
$1 175,99 Unit Price incl. VAT
3
WELD-SPARK ARRESTOR AVA875
1262123
$99,74 Unit Price incl. VAT
4
SHIELD-SILENCER
5257719
$136,49 Unit Price incl. VAT
5
MNT-ISOLATOR [TO 2/27/2023]
5438965
$52,49 Unit Price incl. VAT
6
SHIELD-HEAT FOIL FULL RGR
5814618
$167,99 Unit Price incl. VAT
6
SHIELD HEAT FOIL FULL RGR [TO 7/3/2017]
5814454
$167,99 Unit Price incl. VAT
7
CLAMP HEAT SHIELD EXHAUST
7081579
$13,64 Unit Price incl. VAT
8
GASKET-EXHAUST SEAL
3610184
$89,24 Unit Price incl. VAT
9
SCR-HXFL-M5X0.8X12 4.8 ZPC NYL
7518984
$14,69 Unit Price incl. VAT
10
SCREW-HXFL-M6X1.0X12 10.9 ZPC
7517257
$17,84 Unit Price incl. VAT
11
SCR-1/4-20X1/2 TFM HW-M
7518490
$2,09 Unit Price incl. VAT
12
NUT-HEX-M6X1.0 8 SPC
7547120
$9,44 Unit Price incl. VAT
13
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
14
GASKET-DOUBLE SPHERICAL 2#
3610248
$68,24 Unit Price incl. VAT
15
SPRING SPHERICAL EXHAUST
7044274
$29,39 Unit Price incl. VAT
16
STUD-SPHERICAL EXHAUST
7520079
$25,19 Unit Price incl. VAT
17
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
18
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
19
BRKT-BOX CLOSE OFF
5261192
2206653
$16,37 Unit Price incl. VAT
20
SENSOR-LAMBDA LSF 4.2
4011853
$220,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
