1
Engine displacement
900
2
Year
2016
3
Trim
RZR 900 60 INCH ALL OPTIONS
4
Parts Catalog
OIL PUMP AND OIL COOLER
5

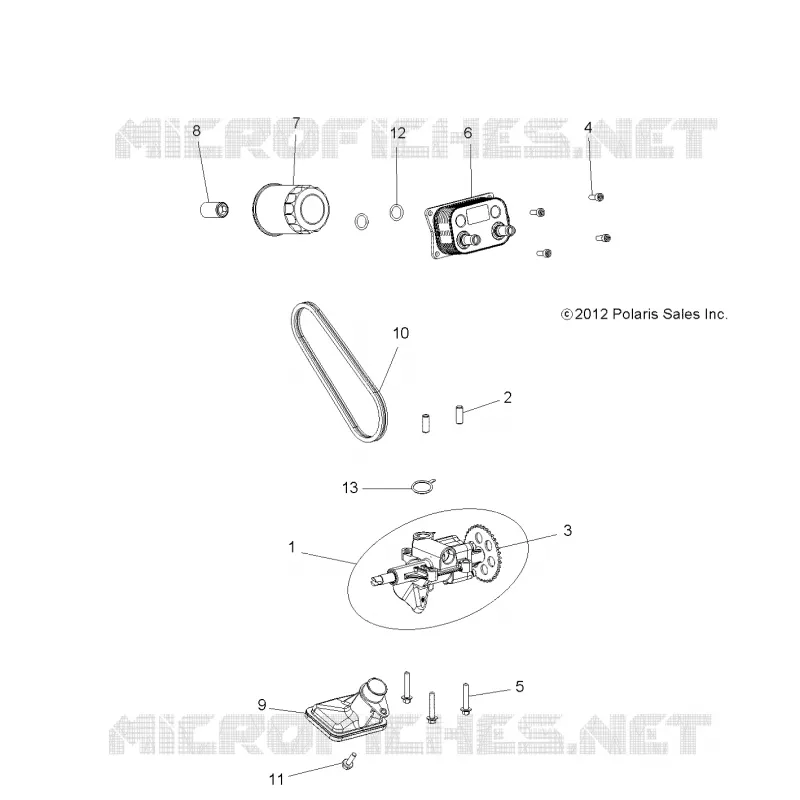

Parts Diagram
Parts Catalog
OIL DIPSTICK
by
REAR SUSPENSION SHOCK MOUNTING
OIL PUMP AND OIL COOLER
1
2
3
4
5
6
7
8
9
10
11
12
13
1
ASM. OIL PUMP WET SUMP [INCL. 3]
1204762
3023491
$356,99 Unit Price incl. VAT
2
DOWEL HOLLOW OIL PUMP
7661975
$9,44 Unit Price incl. VAT
3
SPROCKET OIL PUMP
6230448
Not Available
4
SCREW-SH-M6X1.0X16 8.8 ZPY D204
7519303
$7,34 Unit Price incl. VAT
5
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
6
COOLER-OIL TO WATER 5
1240821
$178,49 Unit Price incl. VAT
7
FILTER-OIL (10 MICRON)
2540086
$19,20 Unit Price incl. VAT
8
ADAPTOR-FILTER STRAIGHT
2521530
$68,24 Unit Price incl. VAT
9
PICKUP OIL PUMP WET SUMP
2521158
2521699
$89,24 Unit Price incl. VAT
10
CHAIN-OIL PUMP DRIVE G-90
3222191
3225043
$73,49 Unit Price incl. VAT
11
SCR-HXFL-M6X1.0X16 8.8 ZYL NYL
7519236
$6,29 Unit Price incl. VAT
12
O-RING .612X.818X.103
5413837
$9,44 Unit Price incl. VAT
13
SEAL OIL PUMP
3610186
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
