Engine displacement
570
2
Year
2016
3
Trim
ACE 570 EFI MD
4
Parts Catalog
ENGINE, CYLINDER HEAD, CAMS AND VALVES
5

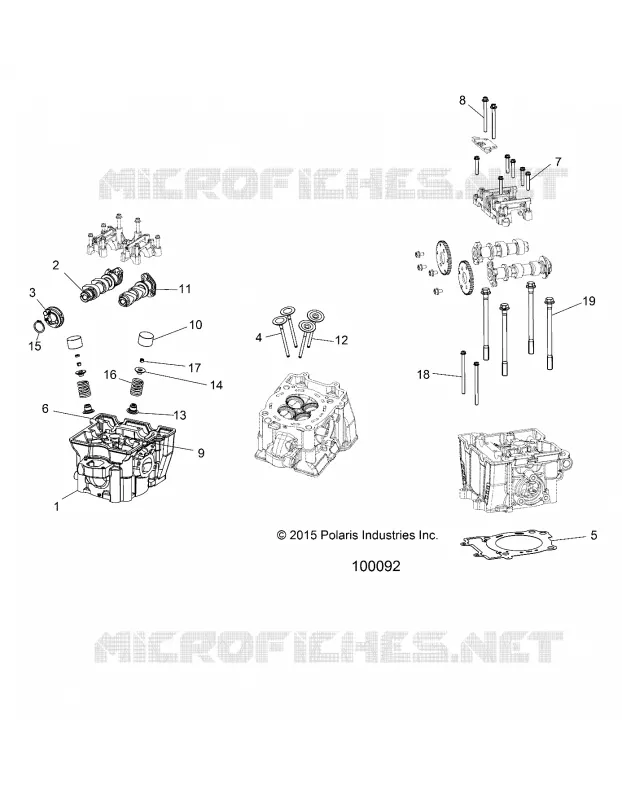

Parts Diagram
Parts Catalog
CYLINDER
by
ENGINE, ENGINE AND TRANSMISSION MOUNTING
ENGINE, CYLINDER HEAD, CAMS AND VALVES
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
1
ASM. CYLINDER HEAD [INCL. HEAD GUIDES CARRIER 5-9]
2206221
$1 065,74 Unit Price incl. VAT
2
ASM. CAMSHAFT
1204836
3023632
$278,24 Unit Price incl. VAT
3
ASM-DECOMP SYSTEM LH
1205100
$89,24 Unit Price incl. VAT
4
VALVE-INTAKE STEEL G-90
3022134
$99,74 Unit Price incl. VAT
5
GASKET-CYL HEAD
5814089
2206222
$115,49 Unit Price incl. VAT
6
PIN DOWEL M6x10
5132835
$4,19 Unit Price incl. VAT
7
SCREW
7519870
7520689
$14,69 Unit Price incl. VAT
8
SCREW
7519871
7520688
$19,94 Unit Price incl. VAT
9
DOWEL HOLLOW M8X8
7661977
$15,74 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.175
5138477518
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.250
5138477525
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.300
5138477530
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.150
5138477515
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.100
5138477510
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.450
5138477545
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.625
5138477462
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.600
5138477460
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.650
5138477465
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.825
5138477482
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.375
5138477538
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.450
5138477445
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.200
5138477520
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.475
5138477448
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.950
5138477495
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.925
5138477492
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.725
5138477472
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.050
5138477505
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.575
5138477458
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.125
5138477512
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.525
5138477452
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.350
5138477535
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.275
5138477528
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.500
5138477450
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.550
5138477455
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.075
5138477508
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.325
5138477532
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.850
5138477485
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.400
5138477440
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.425
5138477542
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.875
5138477488
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.000
5138477500
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.225
5138477522
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.975
5138477498
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.700
5138477470
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.025
5138477502
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 5.400
5138477540
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.800
5138477480
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.675
5138477468
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.750
5138477475
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.775
5138477478
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.425
5138477442
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.900
5138477490
$83,99 Unit Price incl. VAT
11
CAMSHAFT INTAKE
3022556
3023626
$388,49 Unit Price incl. VAT
12
VALVE-EXHAUST INCONEL
3022349
$125,99 Unit Price incl. VAT
13
SEAT-W/SEAL VALVE SPRING
3610212
$9,44 Unit Price incl. VAT
14
RETAINER VALVE
5138435
$47,24 Unit Price incl. VAT
15
RING-SNAP EXT 23MM
7710653
$6,29 Unit Price incl. VAT
16
SPRING VALVE
7043988
7046204
$18,89 Unit Price incl. VAT
17
KEEPER-VALVE
7081470
$9,44 Unit Price incl. VAT
18
SCR-HXFLG M6X1.0X90
7519153
$10,49 Unit Price incl. VAT
19
SCREW-HXFL-M11X1.25X150 SAE4037
7520144
$25,19 Unit Price incl. VAT
