OIL PUMP SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D007)
5
Parts Diagram
Parts Catalog
FUEL PUMP SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D006)
by
OIL FILTER SPORTSMAN 500 W969244 (4936093609D008)

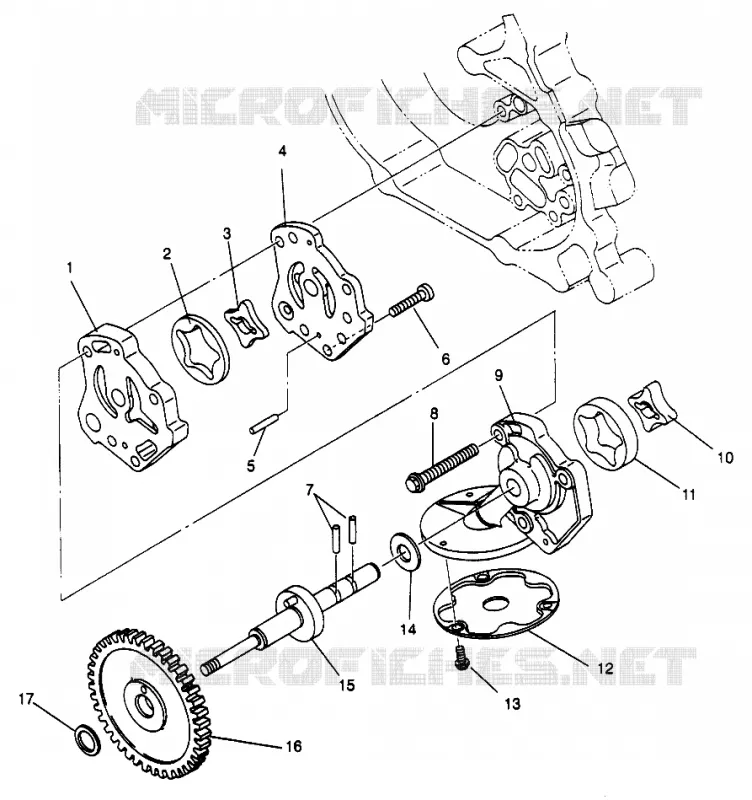

OIL PUMP SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D007)
1
CASE #2 OILPUMP
3084946
$136,49 Unit Price incl. VAT
2
ROTOR OUTER FEED (Feed)
3084949
$83,99 Unit Price incl. VAT
3
ROTOR INNER FEED (Feed)
3084948
Not Available
4
PUMP OIL * (Incl. 1-8 10-15)
3084944
Not Available
4
CASE #1 OILPUMP
3084945
Not Available
5
PIN DOWEL
3084955
Not Available
6
SCREW
3083407
Not Available
7
PIN DOWEL
3084954
$13,64 Unit Price incl. VAT
8
BOLT&WASHER ASM.
3084962
Not Available
9
CASE #3 OILPUMP
3084947
$152,24 Unit Price incl. VAT
10
ROTOR INNER SCAV. (Scav)
3084950
$62,99 Unit Price incl. VAT
11
ROTOR OUTER
3090307
$89,24 Unit Price incl. VAT
12
STRAINER UNIT OIL
3084956
Not Available
13
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
14
WASHER(10)
3084953
$6,29 Unit Price incl. VAT
15
SHAFT PUMP *
3084952
$173,24 Unit Price incl. VAT
16
GEAR 2 PUMP *
3084958
$152,24 Unit Price incl. VAT
17
SPACER (0.8)
3084959
$16,79 Unit Price incl. VAT
17
SPACER (1.0)
3084960
Not Available
17
SPACER (1.2)
3084961
$16,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
