ENGINE, PISTON AND CRANKSHAFT FOR 650 MATRYX INDY VR1 137 FROM 2021

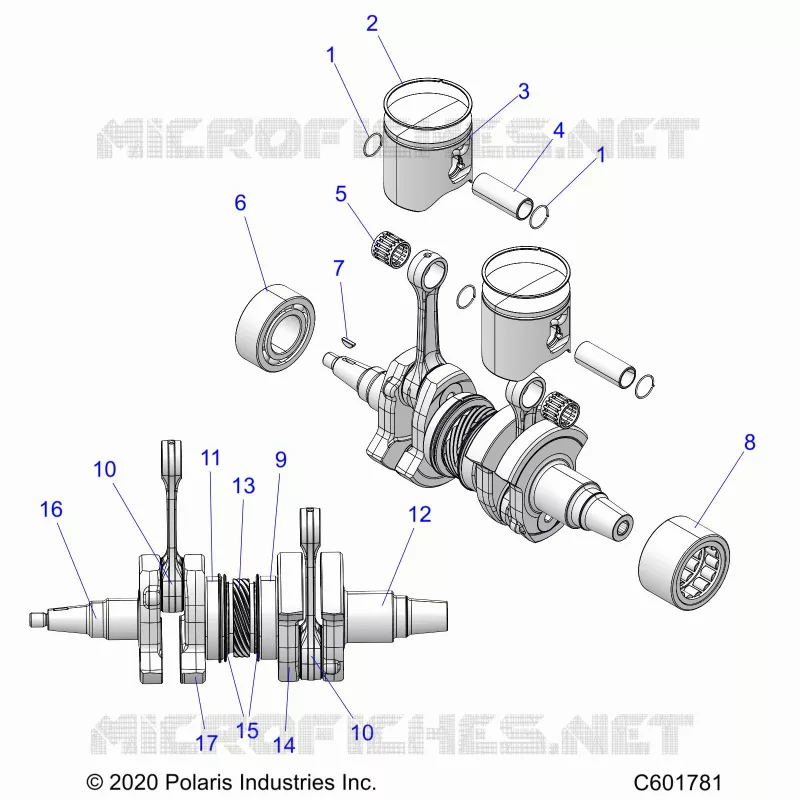

ENGINE, PISTON AND CRANKSHAFT

-

K-CRANKSHAFT ASM 650/900 [INCL. 5 6 8-17]

2208740

$3 039,74 Unit Price incl. VAT

-

K-CONN ROD ASM 74ST FC [INCL. 1 CONN. ROD 2 THRUST WASHER PIN AND 22NDL BEARING]

2208792

$388,49 Unit Price incl. VAT

1

CIRCLIP PISTON

3023343

$27,29 Unit Price incl. VAT

2

K-PISTON RING SNOW 650 [INCL. 1 RING]

2208749

$141,74 Unit Price incl. VAT

3

K-PISTON 650 SNOW [INCL. 1 2 4]

2208741

$386,39 Unit Price incl. VAT

4

WRENCH-8MMX10MM OPEN END

Not Available

5

BEARING-18NDL 23X28X26 NRB

3514909

$27,29 Unit Price incl. VAT

6

BEARING-BALL 40X80X30.2 DAC

3515006

$182,69 Unit Price incl. VAT

7

KEY WOODRUFF

7721117

$47,24 Unit Price incl. VAT

8

BEARING-PTO 49.5X80X46 RR

3515157

$242,54 Unit Price incl. VAT

9

BEARING BALL

3514389

$55,43 Unit Price incl. VAT

10

BEARING-22NDL 31X38X19 IKO

3514987

$80,84 Unit Price incl. VAT

10

WASHER-THRUST 31X51X1

5140944

$18,89 Unit Price incl. VAT

11

BEARING-BALL 40X80X18 SR

3514996

$149,09 Unit Price incl. VAT

12

CRANKWEB-74MM PTO

5142849

$666,74 Unit Price incl. VAT

13

GEAR-COLLAR PUMPDRIVE

5140946

$535,49 Unit Price incl. VAT

14

CRANKWEB-CTR 74MM PTO

5140942

$577,49 Unit Price incl. VAT

15

SEAL-OIL CTR KOK

5141297

$78,74 Unit Price incl. VAT

16

CRANKWEB-74MM MAG

5142850

$666,74 Unit Price incl. VAT

17

CRANKWEB-CTR 74MM MAG

5140941

$577,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
