1
Engine displacement
700
2
Year
1997
3
Trim
EURO 700 SKS - E970566
4
Parts Catalog
CHAINCASE 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857B008)
5
Parts Diagram
Parts Catalog
SKI 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857B003)
by
DRIVE TRAIN 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857B009)

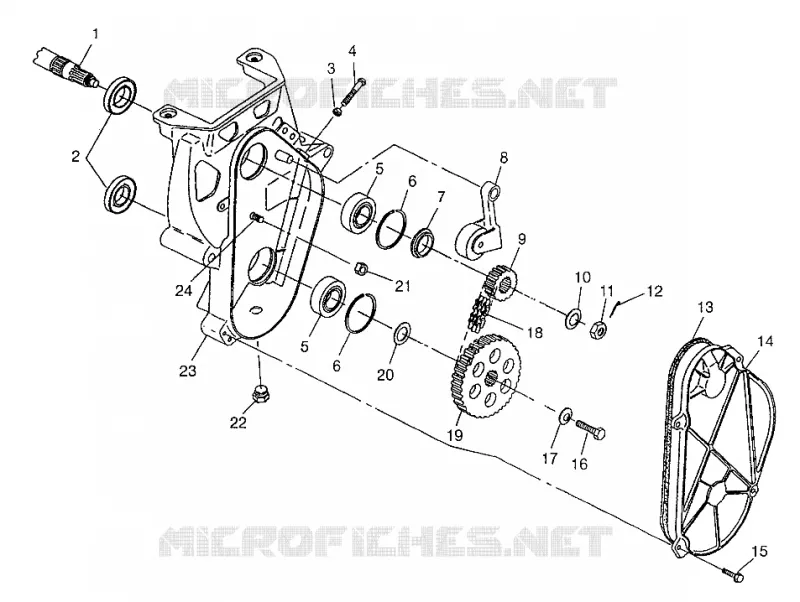

CHAINCASE 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857B008)
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
3
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
4
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
5
BEARING
3514308
3515909
$29,18 Unit Price incl. VAT
6
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
7
SPACER SPROCKET
5010359
Not Available
8
BLOCK TIGHTENER [No Longer Available]
5630122
Not Available
8
TIGHTENER ASM GEARCASE Substituted by 1332213
1332096
Not Available
8
WHEEL C/C IDLER
5630123
Not Available
8
BEARING
3553002
$20,99 Unit Price incl. VAT
8
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
8
PIN CHAIN TIGHTENER
7662210
Not Available
9
SPKT 20T (13W) 15T SPLINE (13W)
3221061
Not Available
10
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
11
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
12
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
13
GASKET CHAINCASE LONG
5411207
Not Available
14
COVER CHAINCASE
5630691
$185,84 Unit Price incl. VAT
15
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
16
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
17
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
18
CHAIN 66P (13W) SILENT (13 Wide)
3224051
Not Available
18
CHAIN SILENT 68P 13W (13W) HD (RMK)
3224061
Not Available
19
SPKT 39T 13W RIBBED (13W)
3222064
Not Available
19
SPROCKET 35T (13W) (13W) (RXL)
3222053
Not Available
20
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
21
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
22
PLUG
7052115
$10,49 Unit Price incl. VAT
23
CHAINCASE VENTED
5131455
Not Available
24
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
