1
Engine displacement
700
2
Year
2001
3
Trim
700-classic
4
Parts Catalog
CHAINCASE
5

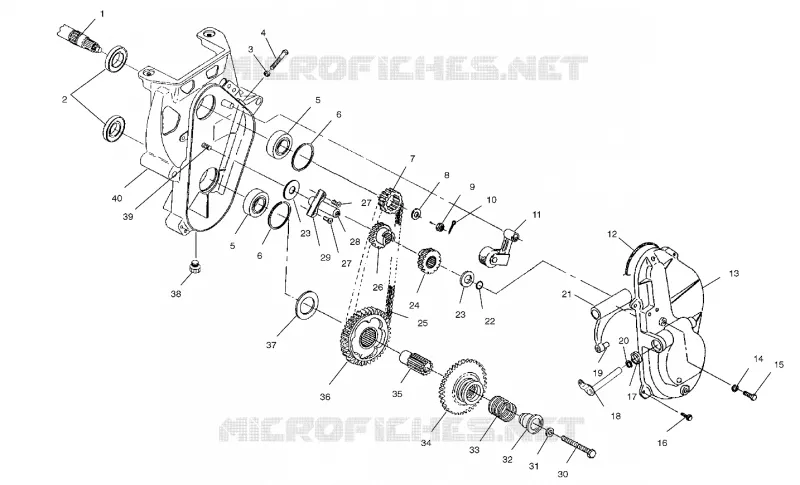

Parts Diagram
Parts Catalog
SKI
by
DRIVE TRAIN
CHAINCASE
1
2
3
4
5
5
6
6
7
8
9
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
13
14
15
16
17
18
19
20
21
21
21
21
22
23
23
24
24
24
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
3
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
4
SCREW(10)
7515551
$11,54 Unit Price incl. VAT
5
BEARING BALL
3514309
3515910
$30,23 Unit Price incl. VAT
6
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
7
SPROCKET 23T 3/4W [W/1.352IN. COBRA TRACK]
3221099
$83,99 Unit Price incl. VAT
8
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
9
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
10
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
11
WHEEL C/C IDLER
5630123
Not Available
11
BEARING
3553002
$20,99 Unit Price incl. VAT
11
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
11
TIGHTENER CHAINCASE (Includes the following)
1332213
Not Available
11
PIN CHAIN TIGHTENER
7662210
Not Available
12
GASKET CHAINCASE LONG
5411207
Not Available
13
CVR CHAINCASE REV MACH
5131454
Not Available
14
WASHER
7558403
$9,44 Unit Price incl. VAT
15
SCREW
7512492
$2,09 Unit Price incl. VAT
16
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
17
SEAL OIL
3610029
$15,74 Unit Price incl. VAT
18
SHAFT SHIFT BLK
1341221067
$57,63 Unit Price incl. VAT
19
PIN SHIFT FORK(10)
7661826
$12,59 Unit Price incl. VAT
20
RING RETAINER(10)
7710415
$7,34 Unit Price incl. VAT
21
KIT SHIFT FORK/SHAFT (Incl. 29 35)
2200363
Not Available
21
FORK SHIFT
5130805
Not Available
22
O RING
5410589
$7,34 Unit Price incl. VAT
23
WASHER THRUST(10)
7555877
$14,69 Unit Price incl. VAT
24
BEARING NEEDLE
3554508
Not Available
24
GEAR SPUR PINION
1341075
$241,49 Unit Price incl. VAT
25
CHAIN 70P 3/4W [W/1.352IN. COBRA AND 1.6IN. COBRA TRACK]
3221115
$262,49 Unit Price incl. VAT
26
GEAR 18T PINION Substituted by 1341075
5130721
$241,49 Unit Price incl. VAT
27
SCREW(10) (Chain Retention Bracket)
7512019
$7,34 Unit Price incl. VAT
28
SHAFT PINION W/WRENCH FLATS
5131770
Not Available
29
BRACKET-CHAIN RETENTION 7.05
5243162
Not Available
30
SCREW(10)
7517581
$3,14 Unit Price incl. VAT
31
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
32
RETAINER DRIVE COUPLER
5130727
Not Available
33
SPRING-COMPRESSION
7041887
$68,24 Unit Price incl. VAT
34
GEAR ASM REVERSE Substituted by 1341362
1341121
$887,24 Unit Price incl. VAT
35
COUPLER DRIVE
5130720
Not Available
36
SPKT.ASM 40T REV 3/4W PM
1341227
Not Available
37
WASHER REVERSE(10)
7555871
$10,49 Unit Price incl. VAT
38
PLUG
7052115
$10,49 Unit Price incl. VAT
39
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
40
CHAINCASE VENTED
5131455
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
