1
Engine displacement
500
2
Year
2017
3
Trim
RANGER 500 ETX / HDPE
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, HEADLIGHTS, TAILLIGHTS AND BULBS
by
CAM CHAIN AND SPROCKET

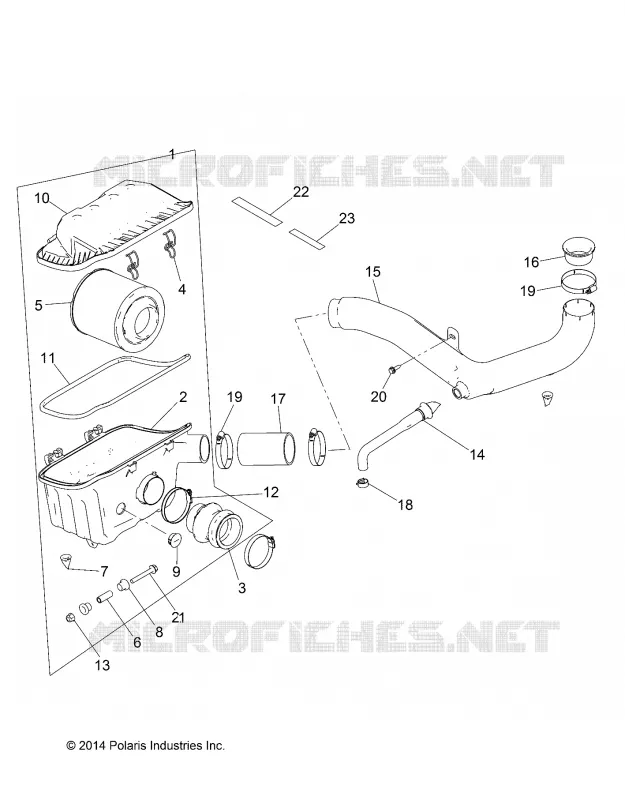

ENGINE, AIR INTAKE SYSTEM
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
BOX-AIR INTAKE
5450174
$257,24 Unit Price incl. VAT
3
BOOT ENGINE INTAKE
5415939
5418006
$83,99 Unit Price incl. VAT
4
CLIP-AIRBOX
7081707
$9,44 Unit Price incl. VAT
5
FILTER-AIR
7082037
$48,71 Unit Price incl. VAT
6
SHAFT-COMPRESSION LMTR 34.4MM
5138987
$31,49 Unit Price incl. VAT
7
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
8
BUSHING-MOUNT
5414719
$5,24 Unit Price incl. VAT
9
PLUG-1 INCH
5414780
$7,34 Unit Price incl. VAT
10
COVER-AIRBOX
5450175
$47,24 Unit Price incl. VAT
11
SEAL-AIR BOX COVER
5814106
$20,99 Unit Price incl. VAT
12
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
13
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
14
HOSE BREATHER
5414500
2521911
$99,74 Unit Price incl. VAT
15
DUCT-INTAKE AIRBOX
5414503
$115,49 Unit Price incl. VAT
16
SEAL ENGINE INLET
5415033
$7,34 Unit Price incl. VAT
17
FOAM-FAN OUT DUCT BOTTOM
5414748
$29,39 Unit Price incl. VAT
18
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
19
CLAMP-HOSE 70MM DIA. WORM GEAR
7081623
$5,76 Unit Price incl. VAT
20
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
21
SCR-HXFL-M8X1.25X60 8.8 ZOD
7519298
$7,34 Unit Price incl. VAT
22
DECAL-CAUTION HEADER AIRBOX
7180122
Not Available
23
DECAL-CAUTION INFO AIRBOX
7181728
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
