1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 EPS SP TRACTOR
4
Parts Catalog
ENGINE, STATOR COVER AND FLYWHEEL
5
Parts Diagram
Parts Catalog
LONG BLOCK
by
THROTTLE BODY AND FUEL RAIL

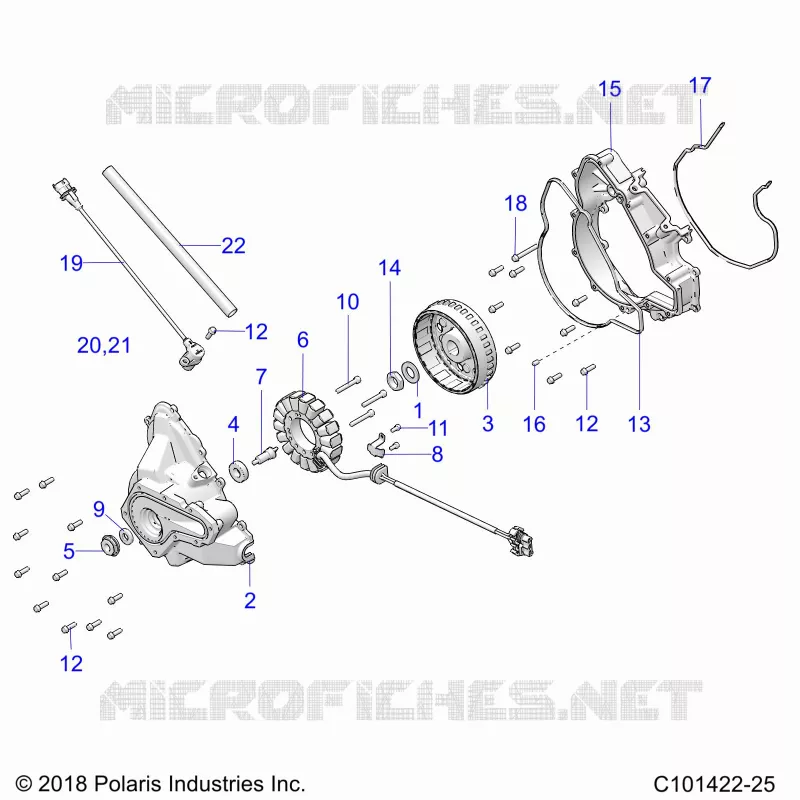

ENGINE, STATOR COVER AND FLYWHEEL
1
2
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
1
2
2
3
3
4
5
6
6
7
7
7
7
7
7
7
7
7
8
9
10
10
11
12
12
12
13
13
14
15
16
17
18
19
20
21
21
1
WASHER-19X34X3 HARD
7556878
$7,34 Unit Price incl. VAT
2
KIT - IGNITION COVER [INCL. COVER FITTING IMPELLER 4 5 7 9]
2205170
$629,99 Unit Price incl. VAT
2
ASM-IGNITION CVR W/FITTING
3022724
5144584
$115,49 Unit Price incl. VAT
3
FLYWHEEL-660W
4016074
$431,54 Unit Price incl. VAT
4
BEARING SHAFT WATERPUMP [TO 01/15/2023]
3514696
3515828
$17,63 Unit Price incl. VAT
5
SEAL-WATERPUMP SHAFT WATER
3610173
3610435
$30,44 Unit Price incl. VAT
6
STATOR 660W
4014839
$965,99 Unit Price incl. VAT
7
SHAFT-PUMP DRIVE G-1CYL
5138035
$73,49 Unit Price incl. VAT
8
GUIDE-STATOR LEAD
5254832
$15,74 Unit Price incl. VAT
9
SEAL
5411197
$41,99 Unit Price incl. VAT
10
SCR-M6X1.0X40 HX/SOC/CP-Y/D
7510005
$9,44 Unit Price incl. VAT
11
SCREW-M5X0.8X10 SOC/CP-D
7517847
$5,76 Unit Price incl. VAT
12
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
13
GASKET STATOR COVER
5415086
$73,49 Unit Price incl. VAT
14
NUT-HEX M18X1.5 4 JAM RH
7547488
$13,64 Unit Price incl. VAT
15
ASM. COVER ENGINE INTER MAG
3022859
3023795
$141,74 Unit Price incl. VAT
16
DOWEL HOLLOW M8X8
7661977
$15,74 Unit Price incl. VAT
17
GASKET MAG/INTER COVER
5415085
$73,49 Unit Price incl. VAT
18
SCREW
7519209
$7,34 Unit Price incl. VAT
19
SENSOR CRANK POSITION
2411719
$194,24 Unit Price incl. VAT
20
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
21
NUT
7542344
$7,34 Unit Price incl. VAT
22
SHIELD-HEAT WRAP CPS
5814858
$36,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
