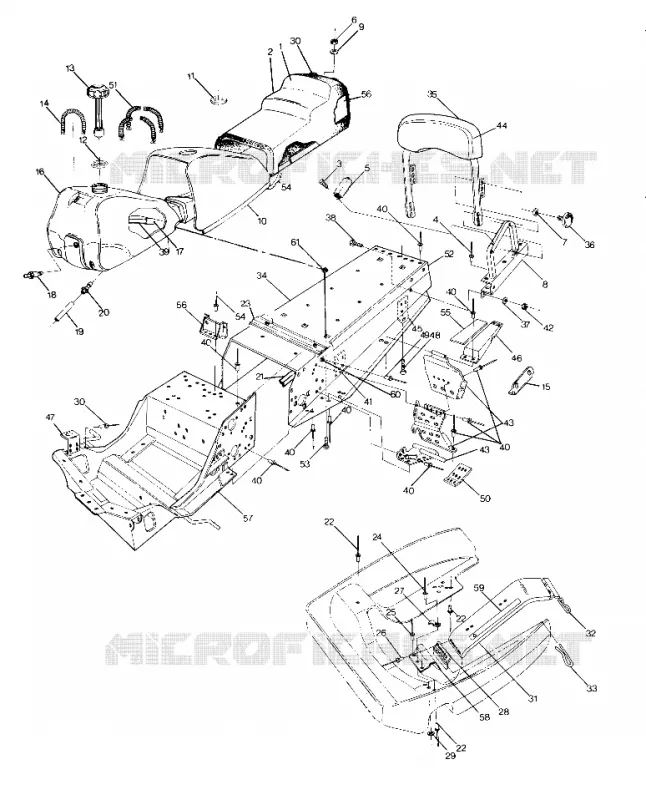

CHASSIS AND SEAT SUPERTRAK UPDATED 2/90 (4917131713001A) FOR TRAIL SUPERTRAK

SEAT (SUPERTRAK) Substituted by 2200743 (Incl. 2 63)

2681448

Not Available

COVER SEAT Substituted by 2200743

2681444

Not Available

SCREW-#10-24X1.5 TRX/PN MC-Y

7510504

$10,49 Unit Price incl. VAT

RIVET CH. Q

7621429

$2,09 Unit Price incl. VAT

GRIP HAND Substituted by 5433383

5431015

Not Available

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$3,14 Unit Price incl. VAT

BAR GRAB LH BLK.

1011729067

Not Available

BAR GRAB RH BLK.

1011730067

Not Available

WASHER-.270X1.25X.060 FL-Y

7558221

$4,19 Unit Price incl. VAT

COVER TANK

2681442

Not Available

GROMMET GAS TANK [No Longer Available]

5431190

Not Available

GASKET-GAS CAP Substituted by 5810513

5810142

5810513

$15,74 Unit Price incl. VAT

CAP GAS(HI.CAP.)

2511184

Not Available

SPRING TANK FRONT

7042020

$27,29 Unit Price incl. VAT

WEAR STRIP

5430786

Not Available

TANK GAS Substituted by 2511199

2511185

Not Available

FUELPICKUP W/STRAINER

7052037

7052301

$26,24 Unit Price incl. VAT

FITTING OUTLET DOUBLE

7052023

$36,74 Unit Price incl. VAT

KIT-TANK VENT

2200190

Not Available

VENT FITTING TANK Substituted by 5430579

5430669

Not Available

BRACE TUNNEL REINF.

5222412

Not Available

RIVET-POP3/16(.251-.375)AL-LFB

7621457

$2,09 Unit Price incl. VAT

BRKT R.FUELTANK MTG. Substituted by 5222375-067

5222375

Not Available

RIVET-POP 3/16(.251-.375)-ST-Z

7621402

$2,09 Unit Price incl. VAT

RIVET(50)

7621452

$2,09 Unit Price incl. VAT

RIVET

7621330

$2,09 Unit Price incl. VAT

CLIP WIRING (10) Substituted by 7080665

4020035

Not Available

HINGE (TRAIL)

5211047

Not Available

WASHER FLAT

7558212

$1,56 Unit Price incl. VAT

BUCKLE&STRAP (Trail)

2681291

Not Available

GUARD CLUTCH Substituted by 5240965

5230118

Not Available

PIN RETAINING (10)

7080216

7080698

$17,84 Unit Price incl. VAT

PIN FRONT (TRAIL)

7080311

Not Available

TUNNEL(SUPERTRAK)#90

1011775

Not Available

BACKREST ASM. (Incl. 62)

2681449

Not Available

KNOB ADJ. Substituted by 2670130

7030007

Not Available

WASHER-.312 X .734 X .065-Z

7558302

$3,14 Unit Price incl. VAT

SCR-HH-5/16-18X0.75 GR5 ZY3 NY

7512325

$4,19 Unit Price incl. VAT

LINE-BOOST 3/16 ID 85 CM

8450003

8450003-1525

$136,49 Unit Price incl. VAT

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$2,09 Unit Price incl. VAT

BRKT. Substituted by 5220542-067

5220542

Not Available

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

FOOTREST ASM LH

2200250

Not Available

FOOTREST ASM RH

2200254

Not Available

COVER BACKREST

2681450

Not Available

PAD RH R.SUSP.MTG.01 Substituted by 1011728-067

1011728

Not Available

PAD LH R.SUSP.MTG. Substituted by 1011727-067

1011727

Not Available

FOOTREST RH REAR

5220894

$51,54 Unit Price incl. VAT

FOOTREST LH REAR

5220893

Not Available

SUPPORT MUFFLER Substituted by 1011601-067

1011601

Not Available

SCREW(10)

7512116

Not Available

RIVET(50)

7621222

$1,04 Unit Price incl. VAT

PLATE TUNNEL RH

5220635

Not Available

PLATE TUNNEL LH

5220634

Not Available

SPRING TANK

7042033

Not Available

DECAL(47.5##)TUNNEL [No Longer Available]

7072078

Not Available

SCR-RHCAR-1/4-20X0.75 GR5 ZY3

7512193

$4,19 Unit Price incl. VAT

HARNESS-TAILLIGHT

2460237

Not Available

PAD LH FOOT SAFETY

5830007

$10,70 Unit Price incl. VAT

PAD RH FOOT SAFETY

5830008

Not Available

BRKT GASTANK WELD. Substituted by 1011733-067

1011733

Not Available

BULKHEAD (TRAIL) (Trail)

1011612

Not Available

BRACKET HINGE Substituted by 5241437

5220406

Not Available

DECAL ENG/CLUTCH [No Longer Available]

7072871

Not Available

SNAP-MALE(10)

7080227

Not Available

DESC NOT_AVAILABLE

5222119

Not Available

NUT SPEED

7670021

$10,49 Unit Price incl. VAT

BRACKET-CLUTCH GUARD [No Longer Available]

5223798

Not Available

REFLECTOR

5430781

Not Available

SCREW(10)

7511856

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
