Parts Catalog
NOSEPAN CONSOLE ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE (4922972297003A)
5
Parts Diagram
Parts Catalog
TUNNEL AND SEAT ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/093 (4922972297001A)
by
HOOD ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297005A)

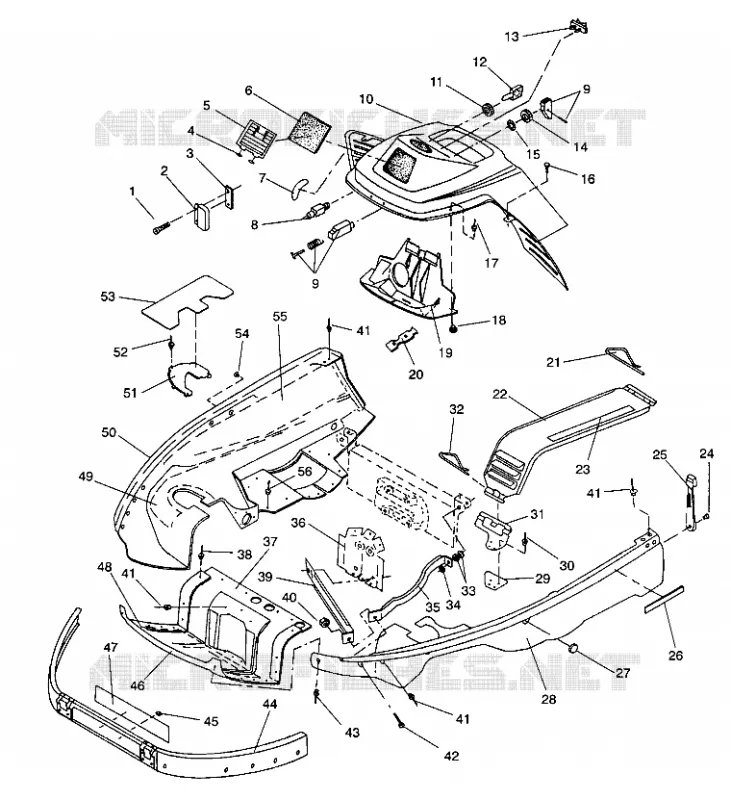

NOSEPAN CONSOLE ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE (4922972297003A)
1
SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]
7512018
$6,29 Unit Price incl. VAT
2
REGULATOR VOLTAGE
4060092
2203873
$188,99 Unit Price incl. VAT
3
HEAT SINK
5210650
Not Available
4
SEAL O RING (10)
5410374
$2,93 Unit Price incl. VAT
5
LOUVER INTAKE
5431211070
Not Available
6
FOAM INTAKE (Indy)
5810458
Not Available
7
DECAL FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Not Available
8
SWITCH IGNITION
4110038
$83,99 Unit Price incl. VAT
8
SWITCH-E/S (Twin ES)
4110061
Not Available
9
CABLE CHOKE(LITE) Substituted by 7080661 (Indy)
7080405
Not Available
9
CABLE CHOKE(STAR) (Star)
7080411
Not Available
10
CONSOLE
5431157070
Not Available
11
NUT-IGNITION SWITCH
7542807
Not Available
12
KEY IGNITION Substituted by 5410378
4110012
$27,29 Unit Price incl. VAT
13
SWITCH ROCKER Substituted by 4110195 (Lite Deluxe)
4110116
Not Available
14
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
15
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
16
SCREW
7512253
$7,34 Unit Price incl. VAT
17
RIVET (50)
7621336
$3,14 Unit Price incl. VAT
18
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
19
CONSOLE INNER (Indy)
5431214070
Not Available
20
STRAP TOOL COMPARTMENT (Indy)
5410425
Not Available
21
PIN FRONT (TRAIL)
7080311
Not Available
22
GUARD CLUTCH Substituted by 5243761
5230124
Not Available
23
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
24
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
25
STRAP HOOD
5410573
Not Available
26
REFLECTOR AMBER
2670071
Not Available
27
PLUG CLUTCH HOLE
5410582
$15,74 Unit Price incl. VAT
28
NOSEPAN LH BLK.
5431155070
Not Available
29
PLATE CLUTCHGUARD BLK.
5211249067
Not Available
30
RIVET(50)
7621449
Not Available
31
SUPPORT CLUTCH GD BLK.
5222332067
$7,97 Unit Price incl. VAT
32
PIN (STAR) (Star)
5224448
Not Available
32
PIN
5224440
Not Available
33
WASHER
7558403
$9,44 Unit Price incl. VAT
34
WASHER
7555806
$1,56 Unit Price incl. VAT
35
BRKT LH PANBRACE BLK.
5222339067
Not Available
35
BRKT RH PANBRACE BLK.
5222340067
Not Available
36
BRKT SUPPORT BLK.
5222356067
Not Available
37
TAPE FOIL
5810476
Not Available
38
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
39
BRKT RH BUMP.BRACE BLK.
5222346067
Not Available
39
BRKT LH BUMP.BRACE BLK.
5222345067
Not Available
40
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
41
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
42
SCREW
7512297
$10,49 Unit Price incl. VAT
43
RIVET
7621467
$2,09 Unit Price incl. VAT
44
HINGE LOWER BLK.
2635010067
Not Available
45
CLIP-U TYPE
7670040
$7,34 Unit Price incl. VAT
46
NOSEPAN CTR.
5431154070
Not Available
46
NOSEPAN CTR (STARLITE) (StarLite GT)
5431256
Not Available
47
SCREEN
5211267067
Not Available
48
TAPE FOIL
5810475
Not Available
49
TAPE FOIL
5810477
Not Available
50
NOSEPAN RH BLK.
5431156070
Not Available
51
COVER RH SHOCK
5431253
Not Available
51
COVER LH SHOCK
5431252
Not Available
52
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
52
RIVET-POP3/16(.251-.375)AL-LFB
7621457
$2,09 Unit Price incl. VAT
53
TAPE FOIL (PAN)
5810482
Not Available
54
CLIP-DART (NYLON)
7670067
$7,34 Unit Price incl. VAT
55
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
55
TAPE FOIL
5810478
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
