1
Engine displacement
500
2
Year
2006
3
Trim
500 CLASSIC
4
Parts Catalog

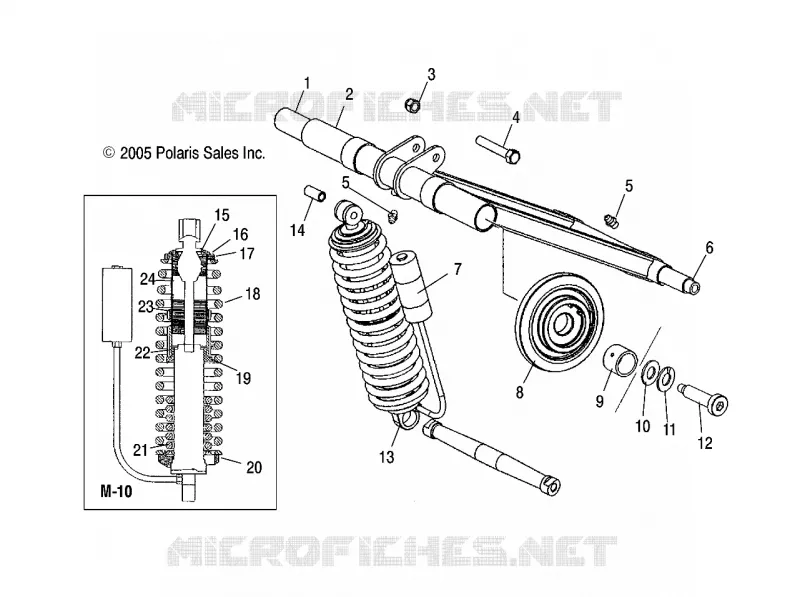

REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM
by
BATTERY BOX
REAR TORQUE ARM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
5
6
7
8
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
SHAFT UPR.TORQUE ARM M-10
5132578
Not Available
2
Arm Torque
1541527067
Not Available
3
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
4
SCREW
7515415
$2,09 Unit Price incl. VAT
5
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
6
SHAFT-RTA LOWER Substituted by 2201938
5133093
$46,19 Unit Price incl. VAT
7
DECAL-M-10 FOX RES
7079432
Not Available
8
BEARING-6206
3514330
$54,59 Unit Price incl. VAT
8
ASM-WHEEL OFF-SET 5.60
1590308
Not Available
8
RING RETAINING
7710471
$25,19 Unit Price incl. VAT
9
COLLAR-BRG LOCK REAR
5132582
Not Available
9
SCREW SOCKET SET
7512257
$7,34 Unit Price incl. VAT
10
WASHER FLAT
7555984
$4,19 Unit Price incl. VAT
11
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
12
SCR-7/16-14X1.25SOCHD-P80-DGPT
7517815
Not Available
13
Shock Rear Track (Incl. All)
7042216
Not Available
14
SLEEVE .385X.560X1.24
5333905
$27,29 Unit Price incl. VAT
15
CAP-ICE
5244747
$9,23 Unit Price incl. VAT
16
RETAINER SPRING SLOTTED
5020618
$36,74 Unit Price incl. VAT
17
NUT-PRELOAD
5132645
Not Available
18
Spring Shock Rear
7041935067
Not Available
19
BUSHING-OVER LOAD DEPRESSOR
5433882
Not Available
20
Retainer Spring Rear
5133032
$120,74 Unit Price incl. VAT
21
SPRING-REAR OVER/LOAD M-10 BLK
7041936067
Not Available
22
RING-ADJUSTER
5132625
Not Available
23
NUT-RING ADJUSTER
5132643
Not Available
24
SLEEVE-OVERLOAD DEPRESSOR
5132794
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
