1
Engine displacement
925
2
Year
2020
3
Trim
RZR XP TURBO S VELOCITY
4
Parts Catalog

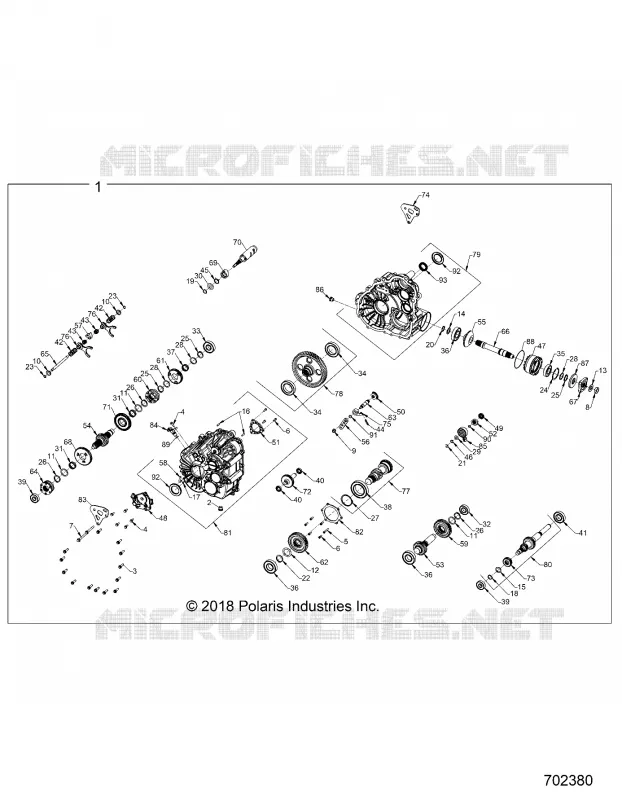

DRIVE TRAIN, MAIN GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT HALF SHAFT
by
HEADLIGHTS AND TAILLIGHTS
DRIVE TRAIN, MAIN GEARCASE INTERNALS
25
25
25
26
26
26
27
28
28
28
29
30
31
31
32
33
34
34
35
35
36
36
37
38
39
39
40
40
41
42
42
43
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
92
93
1
ASM-GEARCASE COMPLETE [INCL. ALL]
1333863
$5 680,49 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
4
SCREW HEX FLANGE HEAD M6 X 1 X 20
3235206
$13,64 Unit Price incl. VAT
5
SCREW SOCKET HEAD CAP M6 X 1.0 X 40
3235208
$20,99 Unit Price incl. VAT
6
SCREW SOCKET HEAD CAP M6 X 1.0 X 18
3235332
$7,34 Unit Price incl. VAT
7
SCREW HEX FLANGE M8 X 1.25 X 70
3235802
$10,49 Unit Price incl. VAT
8
NUT JAM M20 X 1.5
3235803
$14,69 Unit Price incl. VAT
9
NUT LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$14,69 Unit Price incl. VAT
10
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
11
WASHER-32.3X42X1.5(115288)
3235211
$19,94 Unit Price incl. VAT
12
WASHER-35.6X57X1.5(115289)
3235212
$25,19 Unit Price incl. VAT
13
WASHER LOCKING 21.4 X 39 x 3.40
3235804
$19,94 Unit Price incl. VAT
14
WASHER 25.26 X 34 X 2
3235805
$12,59 Unit Price incl. VAT
15
WASHER 22.70 X 32.0 X 1.5
3235991
$19,94 Unit Price incl. VAT
16
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
17
PIN SPRING SLOTTED 6 X 12
7043746
$15,74 Unit Price incl. VAT
18
RING RETAINING BASIC EXTERNAL
7710434
$7,34 Unit Price incl. VAT
19
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
20
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
21
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
22
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
23
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
24
RING RETAINING BASIC INTERNAL 62MM
3234741
$17,84 Unit Price incl. VAT
25
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
26
RING RETAINING BASIC EXTERNAL MSR-32
3235214
$17,84 Unit Price incl. VAT
27
RING-RETAIN VSH-237(130298)
3235216
$19,94 Unit Price incl. VAT
28
WASHER THRUST 1.187 X 1.500 X .0600
3233378
$17,84 Unit Price incl. VAT
29
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
30
SPACER 19.4 X 34.0 X 2.0
3235883
$41,99 Unit Price incl. VAT
31
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
32
BEARING
3233019
$54,59 Unit Price incl. VAT
33
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
34
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
35
BEARING BALL 6206 C3 30X62X16
3233790
$47,24 Unit Price incl. VAT
36
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
37
BEARING-NEEDLE 30X35X13-CAGED
3233384
$54,59 Unit Price incl. VAT
38
BEARING BALL 6012 C3 60 X 95 X 18
3235218
$101,84 Unit Price incl. VAT
39
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
40
BEARING BALL 6903 17 X 30 X 7
3235807
$60,89 Unit Price incl. VAT
41
BEARING BALL 6206RSH2 STD 30 X 62 X 16
3235496
$54,59 Unit Price incl. VAT
42
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
43
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
44
SPRING COMPRESSION 0.36 O.D. X 1.125
3234578
$26,24 Unit Price incl. VAT
45
SPRING TORSION
3235885
$36,74 Unit Price incl. VAT
46
WASHER-SPRING 210393
3235327
$17,84 Unit Price incl. VAT
47
TUBE SNORKEL MACH
3235947
$194,24 Unit Price incl. VAT
48
COVER SECTOR GEARS MACH
3235809
$73,49 Unit Price incl. VAT
49
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
50
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
51
PLATE PARK 12 FACE
3235456
$73,49 Unit Price incl. VAT
52
STAR DETENT
3235982
$68,24 Unit Price incl. VAT
53
SHAFT-IDLER 29T(285803)
3235223
$204,74 Unit Price incl. VAT
54
SHAFT REVERS E 29T
3235224
$272,99 Unit Price incl. VAT
55
GEAR 19T SNORKEL
3235812
$246,74 Unit Price incl. VAT
56
BELLCRANK 92 DEGREE
3235227
$52,49 Unit Price incl. VAT
57
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
58
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
59
GEAR-44T STAGE2(352842)
3235229
$173,24 Unit Price incl. VAT
60
ENGAGEMENT DOG 6-FACE(352857)
3235233
$241,49 Unit Price incl. VAT
61
GEAR-53T(352858)
3235234
$157,49 Unit Price incl. VAT
62
GEAR-46T STAGE 3(352872)
3235236
$204,74 Unit Price incl. VAT
63
SHAFT-SHIFT(352973)
3235238
$68,24 Unit Price incl. VAT
64
SHIFT DOG PARK/LOW (353357)
3235457
$272,99 Unit Price incl. VAT
65
RAIL-SHIFT SHAFT(353622)
3235542
$52,49 Unit Price incl. VAT
66
SHAFT FRONT OUTPUT
3235815
$299,24 Unit Price incl. VAT
67
COUPLER
3235816
$78,74 Unit Price incl. VAT
68
GEAR LOW 64T
3235774
$152,24 Unit Price incl. VAT
69
CAM PARK
3235983
$283,49 Unit Price incl. VAT
70
DRUM SHIFT MACH
3235984
$519,74 Unit Price incl. VAT
71
GEAR REVERSE 56T
3235985
$188,99 Unit Price incl. VAT
72
GEAR IDLER 39T
3235986
$209,99 Unit Price incl. VAT
73
GEAR LOW 29T
3235989
$241,49 Unit Price incl. VAT
74
WELDMENT REAR MOUNT BRACKET
3236144
$73,49 Unit Price incl. VAT
75
SUBASSEMBLY PAWL DETENT ROLLER
3235452
$68,24 Unit Price incl. VAT
76
SUBASSEMBLY SHIFT FORK
3235920
$136,49 Unit Price incl. VAT
77
SUBASSEMBLY PINION
3235820
$682,49 Unit Price incl. VAT
78
SUBASSEMBLY OUTPUT
3235847
$509,24 Unit Price incl. VAT
79
SUBASSEMBLY LH CASE
3235949
$834,74 Unit Price incl. VAT
80
SUBASSEMBLY INPUT 42T/22T/29T
3235987
$614,24 Unit Price incl. VAT
81
SUBASSEMBLY RH CASE
3235992
$682,49 Unit Price incl. VAT
82
COVER BEARING CENTER DRIVE
3235823
$89,24 Unit Price incl. VAT
83
BRACKET REAR MOUNT
3236145
$73,49 Unit Price incl. VAT
84
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
85
SWITCH ROTARY 2 PIN RESISTIVE
7662299
$209,99 Unit Price incl. VAT
86
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
87
SEAL TRIPLE LIP 30 X 75 X 8
3235824
$104,99 Unit Price incl. VAT
88
O-RING 3.609 I.D. X 0.139
3235948
$12,59 Unit Price incl. VAT
89
O-RING
3234302
$13,64 Unit Price incl. VAT
90
O-RING -012 VITON
3233836
$12,59 Unit Price incl. VAT
91
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
92
SEAL TRIPLE LIP VITON HELIX 40X70X7
3235052
$57,74 Unit Price incl. VAT
93
SEAL TRIPLE LIP 1.180X1.850X0.315 VITON
3235848
$57,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for RZR XP TURBO S VELOCITY

PASSENGER GRAB BAR

PASSENGER GRAB BAR

for RZR XP TURBO S VELOCITY from 2020

HOOD & FRONT BODY WORK

HOOD & FRONT BODY WORK

for RZR XP TURBO S VELOCITY from 2020

REAR BUMPER

REAR BUMPER

for RZR XP TURBO S VELOCITY from 2020

REAR BODYWORK CLOSEOFF

REAR BODYWORK CLOSEOFF

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, FRONT GEARCASE (FROM 8/15/19)

DRIVE TRAIN, FRONT GEARCASE (FROM 8/15/19)

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, FRONT GEARCASE (TO 8/15/2019)

DRIVE TRAIN, FRONT GEARCASE (TO 8/15/2019)

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RZR XP TURBO S VELOCITY from 2020

ENGINE, AIR INTAKE MANIFOLD

ENGINE, AIR INTAKE MANIFOLD

for RZR XP TURBO S VELOCITY from 2020

ENGINE, AIR INTAKE MANIFOLD

ENGINE, AIR INTAKE MANIFOLD

for RZR XP TURBO S VELOCITY from 2020

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RZR XP TURBO S VELOCITY from 2020

CAM CHAIN AND TENSIONER

CAM CHAIN AND TENSIONER

for RZR XP TURBO S VELOCITY from 2020

ENGINE, STATOR AND FLYWHEEL

ENGINE, STATOR AND FLYWHEEL

for RZR XP TURBO S VELOCITY from 2020

THROTTLE BODY AND VALVE COVER

THROTTLE BODY AND VALVE COVER

for RZR XP TURBO S VELOCITY from 2020

THROTTLE PEDAL

THROTTLE PEDAL

for RZR XP TURBO S VELOCITY from 2020

ENGINE, TURBO CHARGER

ENGINE, TURBO CHARGER

for RZR XP TURBO S VELOCITY from 2020

WHEELS, FRONT

WHEELS, FRONT

for RZR XP TURBO S VELOCITY from 2020

WHEELS, REAR

WHEELS, REAR

for RZR XP TURBO S VELOCITY from 2020

DASHBOARD STORAGE

DASHBOARD STORAGE

for RZR XP TURBO S VELOCITY from 2020

DECALSS COMMON

DECALSS COMMON

for RZR XP TURBO S VELOCITY from 2020

DECALSS GRAPHICS

DECALSS GRAPHICS

for RZR XP TURBO S VELOCITY from 2020

DOORS

DOORS

for RZR XP TURBO S VELOCITY from 2020

BRAKE LINES AND MASTER CYLINDER

BRAKE LINES AND MASTER CYLINDER

for RZR XP TURBO S VELOCITY from 2020

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RZR XP TURBO S VELOCITY from 2020

BRAKES, PEDAL AND MASTER CYLINDER

BRAKES, PEDAL AND MASTER CYLINDER

for RZR XP TURBO S VELOCITY from 2020

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RZR XP TURBO S VELOCITY from 2020

BATTERY

BATTERY

for RZR XP TURBO S VELOCITY from 2020

ELECTRICAL, INSTRUMENTS & CONTROLS

ELECTRICAL, INSTRUMENTS & CONTROLS

for RZR XP TURBO S VELOCITY from 2020

CYLINDER AND PISTON

CYLINDER AND PISTON

for RZR XP TURBO S VELOCITY from 2020

CYLINDER HEAD AND VALVES

CYLINDER HEAD AND VALVES

for RZR XP TURBO S VELOCITY from 2020

DIPSTICK & OIL FILTER

DIPSTICK & OIL FILTER

for RZR XP TURBO S VELOCITY from 2020

EXHAUST SYSTEM

EXHAUST SYSTEM

for RZR XP TURBO S VELOCITY from 2020

EXHAUST SYSTEM

EXHAUST SYSTEM

for RZR XP TURBO S VELOCITY from 2020

FRONT SUSPENSION CARRIER AND HUB

FRONT SUSPENSION CARRIER AND HUB

for RZR XP TURBO S VELOCITY from 2020

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RZR XP TURBO S VELOCITY from 2020

FRONT SUSPENSION SHOCK MOUNTING

FRONT SUSPENSION SHOCK MOUNTING

for RZR XP TURBO S VELOCITY from 2020

FRONT SUSPENSION STABILIZER BAR

FRONT SUSPENSION STABILIZER BAR

for RZR XP TURBO S VELOCITY from 2020

FRONT BUMPER

FRONT BUMPER

for RZR XP TURBO S VELOCITY from 2020

BODY, FUEL LINES, STD.

BODY, FUEL LINES, STD.

for RZR XP TURBO S VELOCITY from 2020

REAR RACK

REAR RACK

for RZR XP TURBO S VELOCITY from 2020

SEAT BELT MOUNTING

SEAT BELT MOUNTING

for RZR XP TURBO S VELOCITY from 2020

CHASSIS, CAB

CHASSIS, CAB

for RZR XP TURBO S VELOCITY from 2020

CHASSIS, MOUNTING, FRONT GEARCASE

CHASSIS, MOUNTING, FRONT GEARCASE

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE INTERNALS

for RZR XP TURBO S VELOCITY from 2020

HEADLIGHTS AND TAILLIGHTS

HEADLIGHTS AND TAILLIGHTS

for RZR XP TURBO S VELOCITY from 2020

WIRE HARNESS

WIRE HARNESS

for RZR XP TURBO S VELOCITY from 2020

COOLING SYSTEM

COOLING SYSTEM

for RZR XP TURBO S VELOCITY from 2020

CRANKCASE

CRANKCASE

for RZR XP TURBO S VELOCITY from 2020

ENGINE, MOUNTING

ENGINE, MOUNTING

for RZR XP TURBO S VELOCITY from 2020

OIL PUMP

OIL PUMP

for RZR XP TURBO S VELOCITY from 2020

ENGINE, WATERPUMP AND BYPASS

ENGINE, WATERPUMP AND BYPASS

for RZR XP TURBO S VELOCITY from 2020

STEERING

STEERING

for RZR XP TURBO S VELOCITY from 2020

REAR SUSPENSION CARRIER AND HUB

REAR SUSPENSION CARRIER AND HUB

for RZR XP TURBO S VELOCITY from 2020

REAR SUSPENSION SHOCK MOUNTING

REAR SUSPENSION SHOCK MOUNTING

for RZR XP TURBO S VELOCITY from 2020

DASHBOARD & GLOVEBOX

DASHBOARD & GLOVEBOX

for RZR XP TURBO S VELOCITY from 2020

FLOOR & ROCKER PANELS

FLOOR & ROCKER PANELS

for RZR XP TURBO S VELOCITY from 2020

BODY, FUEL LINES, EVAP

BODY, FUEL LINES, EVAP

for RZR XP TURBO S VELOCITY from 2020

FUEL TANK

FUEL TANK

for RZR XP TURBO S VELOCITY from 2020

REAR FENDERS AND BEZELS

REAR FENDERS AND BEZELS

for RZR XP TURBO S VELOCITY from 2020

SEAT ASM. AND SLIDER

SEAT ASM. AND SLIDER

for RZR XP TURBO S VELOCITY from 2020

CHASSIS, MAIN FRAME AND SKID PLATES

CHASSIS, MAIN FRAME AND SKID PLATES

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, HALF SHAFT, REAR

DRIVE TRAIN, HALF SHAFT, REAR

for RZR XP TURBO S VELOCITY from 2020

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for RZR XP TURBO S VELOCITY from 2020

ECU / REGULATOR

ECU / REGULATOR

for RZR XP TURBO S VELOCITY from 2020

WIRE HARNESS

WIRE HARNESS

for RZR XP TURBO S VELOCITY from 2020

COOLING, AUX. SYSTEM

COOLING, AUX. SYSTEM

for RZR XP TURBO S VELOCITY from 2020

ENGINE, CRANKSHAFT AND BEARINGS

ENGINE, CRANKSHAFT AND BEARINGS

for RZR XP TURBO S VELOCITY from 2020

OIL PAN

OIL PAN

for RZR XP TURBO S VELOCITY from 2020

STARTER

STARTER

for RZR XP TURBO S VELOCITY from 2020

ENGINE, TURBO CHARGER MOUNTING

ENGINE, TURBO CHARGER MOUNTING

for RZR XP TURBO S VELOCITY from 2020

OWNERS MANUAL AND TOOL KIT

OWNERS MANUAL AND TOOL KIT

for RZR XP TURBO S VELOCITY from 2020

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for RZR XP TURBO S VELOCITY from 2020

SUSPENSION, REAR STRUT STABILIZER

SUSPENSION, REAR STRUT STABILIZER

for RZR XP TURBO S VELOCITY from 2020

POLARIS RZR XP TURBO S VELOCITY 2020

RZR XP TURBO S VELOCITY

RZR XP TURBO S VELOCITY

Model : RZR XP TURBO S VELOCITY

Engine capacity : 925

Year : 2020

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
