1
Engine displacement
850
2
Year
2012
3
Trim
SPORTSMAN XP TOURING EPS 850 INTL - A12DN8EFW
4
Parts Catalog

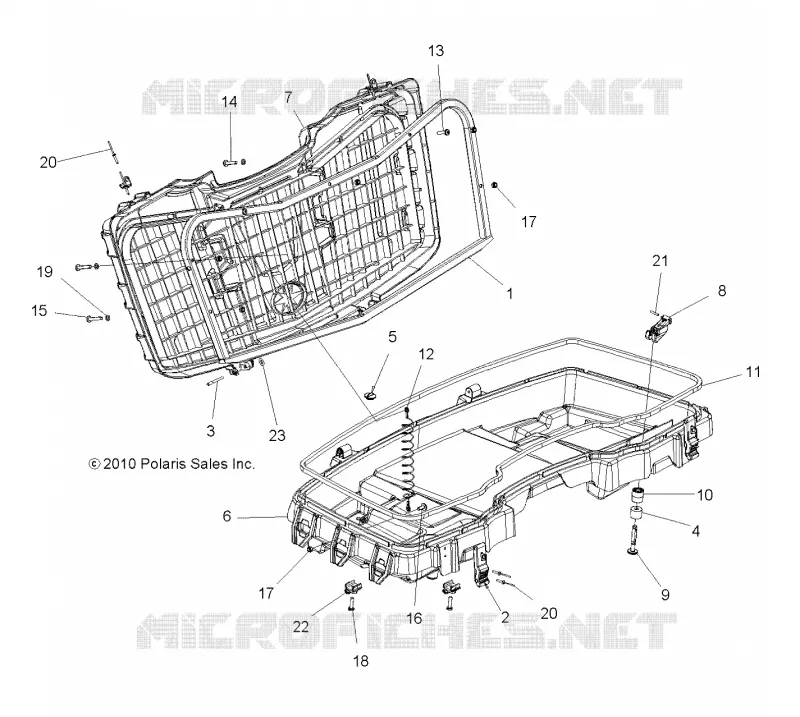

FRONT CARGO BOX
5
Parts Diagram
Parts Catalog
CABIN
by
FRONT RACK SUPPORT
FRONT CARGO BOX
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
13
19
20
20
21
22
23
1
1
1
1
2
2
2
2
3
3
3
4
4
5
5
6
6
6
6
7
7
8
8
8
8
8
8
8
8
9
9
10
11
12
13
14
15
16
16
16
17
17
13
13
13
13
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
-
Kit Cargo Box Front [INCL. ALL]
2877951
$325,49 Unit Price incl. VAT
1
Support Lid
1016972
$167,99 Unit Price incl. VAT
2
Kit Latch Rubber
2877447
$39,78 Unit Price incl. VAT
3
Pin Hinge Front
5137573
$7,34 Unit Price incl. VAT
4
BUSHING-RUBBER LNR ANCHOR
5413887
$6,29 Unit Price incl. VAT
5
Plug Compartment
5413899
$41,99 Unit Price incl. VAT
6
Box Storage Lower
5437761
$272,99 Unit Price incl. VAT
7
Box Storage Upper
5437762
$309,74 Unit Price incl. VAT
8
HANDLE-LNR ANCHOR BLK
5438117
$10,49 Unit Price incl. VAT
9
SHAFT LNR ANCHOR BLACK
5438118
5138410
$9,44 Unit Price incl. VAT
10
SPACER-LNR ANCHOR
5521796
$6,29 Unit Price incl. VAT
11
Seal Box Front
5521810
$31,49 Unit Price incl. VAT
12
Cable Box Limiter Pre-Coiled
7081638
$62,99 Unit Price incl. VAT
13
Screw
7519189
$7,34 Unit Price incl. VAT
14
Bolt
7519190
$10,49 Unit Price incl. VAT
15
Screw
7519191
$10,49 Unit Price incl. VAT
16
SCR-1/4X20X0.625# TORX
7519192
$10,49 Unit Price incl. VAT
17
Nut Nylok
7547478
$6,29 Unit Price incl. VAT
18
Screw
7519189
$7,34 Unit Price incl. VAT
19
Washer Seal
7556541
$6,29 Unit Price incl. VAT
20
Rivet
7661981
$10,28 Unit Price incl. VAT
21
Pin Dowel
7661982
$4,19 Unit Price incl. VAT
22
GUIDE RACK
5438790
$6,29 Unit Price incl. VAT
23
RING RETAINING E-CLIP
7710670
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
