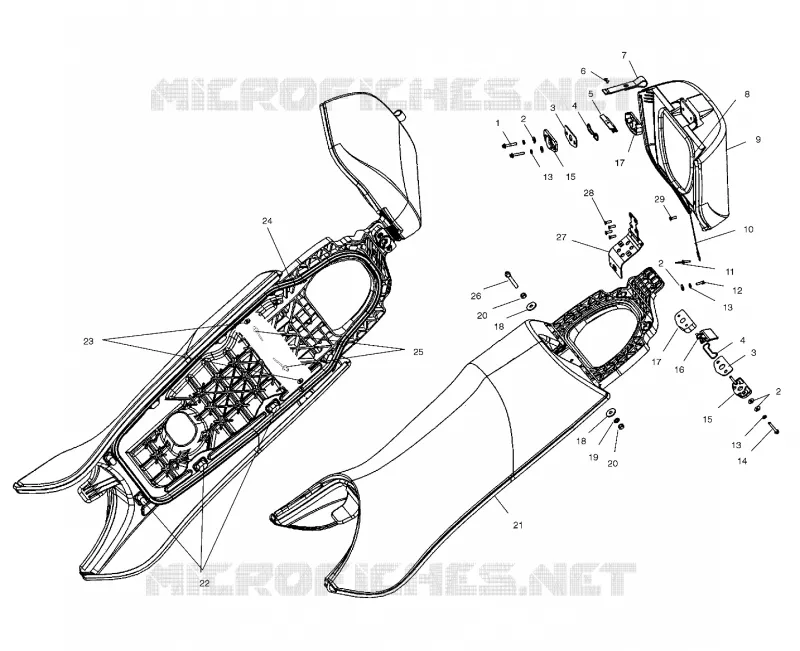

SEAT FOR VIRAGE TX - W025199D FROM 2002

SEAT

-

Asm. Seat Final Virage TX [Incl. 1-29]

2682966320

Not Available

1

BOLT(10)

7516806

Not Available

2

WASHER FLAT S.S.(10)

7555839

$0,93 Unit Price incl. VAT

3

PLATE SEATBASE LATCH

5211314

$7,97 Unit Price incl. VAT

4

SPRING SEATBASE LATCH

7042036

Not Available

5

HANDLE SEAT LATCH W/HOLES

5433779

$17,21 Unit Price incl. VAT

6

RIVET

7621478

Not Available

7

STRAP SEAT LATCH VIRAGE

5812025

Not Available

8

SEAL SEAT REAR MS

5411807

Not Available

9

Asm. Seat Rear

2682962320

Not Available

9

Cover Seat Rear

2682663320

Not Available

10

CABLE LIMITER HINGE 8.0

7080914

$37,16 Unit Price incl. VAT

11

RIVET-POP 3/16 (.523-.750)AL-B [No Longer Available]

7661044

Not Available

12

SCR M6X1.0X20 Substituted by 7516805

7517805

Not Available

13

WASHER LOCK S.S.(10)

7555838

Not Available

14

SCREW M6X1.0X45

7517806

Not Available

15

PLATE LATCH BOT.SEAT BASE

5431357

$9,23 Unit Price incl. VAT

16

HANDLE SEAT

5431358

Not Available

17

PLATE TOP SEATBASE LATCH

5431359

Not Available

18

WASHER-FLAT 3/8 TYPE B(W)-SS

7555846

$10,49 Unit Price incl. VAT

19

WASHER LOCK S.S.(10)

7552607

$1,77 Unit Price incl. VAT

20

NUT HEX S.S. (10)

7542454

Not Available

21

Asm. Seat Main

2682773374

Not Available

21

Cover Seat Main

2682665374

$264,06 Unit Price incl. VAT

22

BUMPER-SEAT

5521490

Not Available

23

WASHER-SEAT STRAP 2 HOLE

5245090

Not Available

24

SEAL SEAT MAIN MS

5521536

Not Available

25

RIVET-POP 1/8(.126-.375)AL-AL(50)

7661108

Not Available

26

PLUNGER LATCH

5020753

Not Available

27

ASM-HINGE SEAT VIRAGE

1013431

Not Available

28

SCREW (10)

7517669

Not Available

29

SCR-M6X1.0X12 PH/PAN HD-SS

7517717

$1,77 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
