1
Engine displacement
900
2
Year
2015
3
Trim
RZR 900 50/55 INCH ALL OPTIONS
4
Parts Catalog

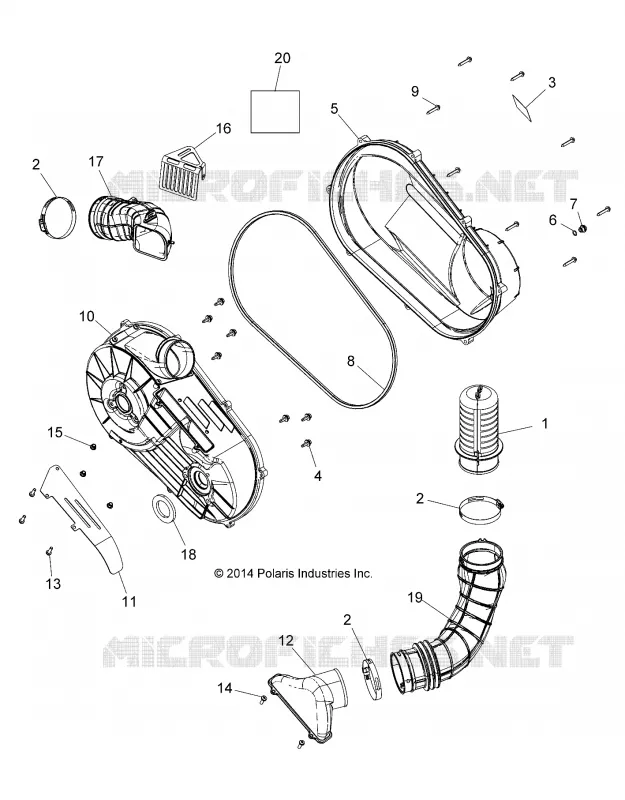

DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
BRAKES, PEDAL AND MASTER CYLINDER
by
DRIVE TRAIN, FRONT GEARCASE INTERNALS
DRIVE TRAIN, CLUTCH COVER AND DUCTING
8
9
10
11
12
13
14
15
16
17
18
19
20
1
ASM. INTAKE CLUTCH DUCT
2635411
$68,24 Unit Price incl. VAT
2
CLAMP-HOSE SLOTTED 92-100 DIA
7081969
$19,94 Unit Price incl. VAT
3
DECAL-BELT WARNING/CHECK
7177469
Not Available
4
SCR-TFHFL-M6X1.0X20 S/R ZOD
7519278
$9,44 Unit Price incl. VAT
5
ASM. COVER CLUTCH OUTER [INCL. 6 7]
2634179
$346,49 Unit Price incl. VAT
6
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
7
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
8
SEAL COVER CLUTCH OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
9
SCREW-NXFL-M6X35 ZOD HILO
7519330
$7,34 Unit Price incl. VAT
10
ASM. COVER CLUTCH INNER [INCL. 18-22 26]
2634863
$314,99 Unit Price incl. VAT
11
BRKT-GUARD CLUTCH COVER
5256223
$68,24 Unit Price incl. VAT
12
DUCT CLUTCH AIR INLET
5450051
$89,24 Unit Price incl. VAT
13
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
14
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
15
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
16
BRACKET SCREEN BELT
5256732
$20,99 Unit Price incl. VAT
17
HOSE CLUTCH AIR OUTLET
5451061
$209,99 Unit Price incl. VAT
18
SEAL-COVER PTO
5813708
$41,99 Unit Price incl. VAT
19
HOSE CLUTCH AIR INLET
5451062
$89,24 Unit Price incl. VAT
20
DECAL INTAKE DUCT
7181576
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
