SPORTSMAN X2 500 EFI QUAD - A09TN50EA
4
Parts Catalog
BED BOX FRAME LATCH
5

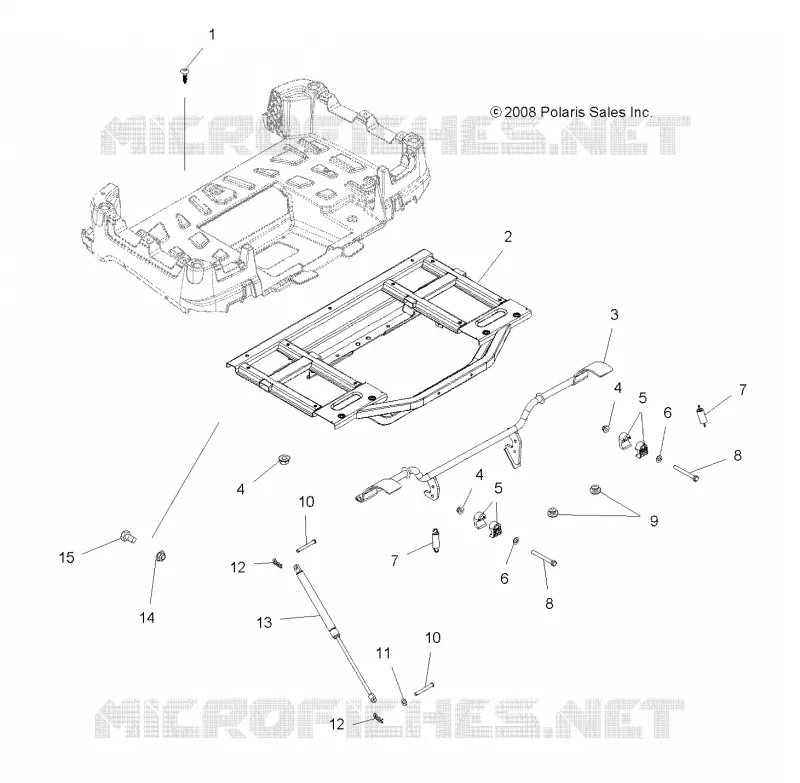

Parts Diagram
Parts Catalog
by
BED BOX
BED BOX FRAME LATCH
1
2
3
4
4
4
5
5
6
6
7
7
8
8
9
10
10
11
12
12
13
14
15
1
SCR-5/16-18X1.75 TX-M
7518235
$3,14 Unit Price incl. VAT
2
Frame Box
1016170067
Not Available
3
Latch Box Rear Black
1016825067
Not Available
4
Nut Flange
7592343
Not Available
5
BUSHING-BOX LATCH
5434226
$7,34 Unit Price incl. VAT
6
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
7
SPRING-EXHAUST
7041687
$12,59 Unit Price incl. VAT
8
SCREW
7515346
$10,49 Unit Price incl. VAT
9
BUMPER-RUBBER
5412067
$7,34 Unit Price incl. VAT
10
PIN-CLEVIS 5/16X1 1/2
7661163
$7,34 Unit Price incl. VAT
11
SPACER-.34 ID X .56 OD X .31
7556373
$6,29 Unit Price incl. VAT
12
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
13
SHOCK DUMP BOX
7041725
$125,99 Unit Price incl. VAT
14
NUT
7542449
$7,34 Unit Price incl. VAT
15
SCREW
7512492
$2,09 Unit Price incl. VAT
